Specs

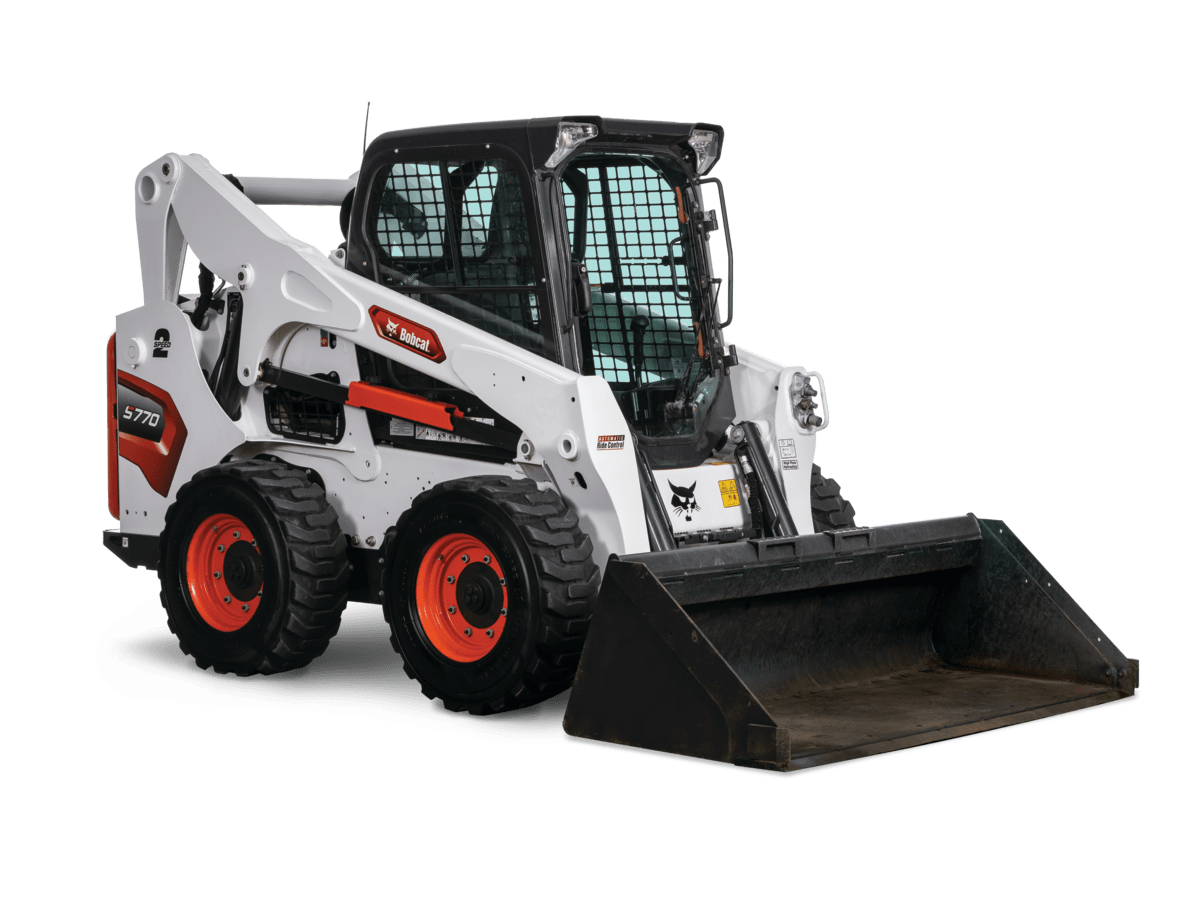

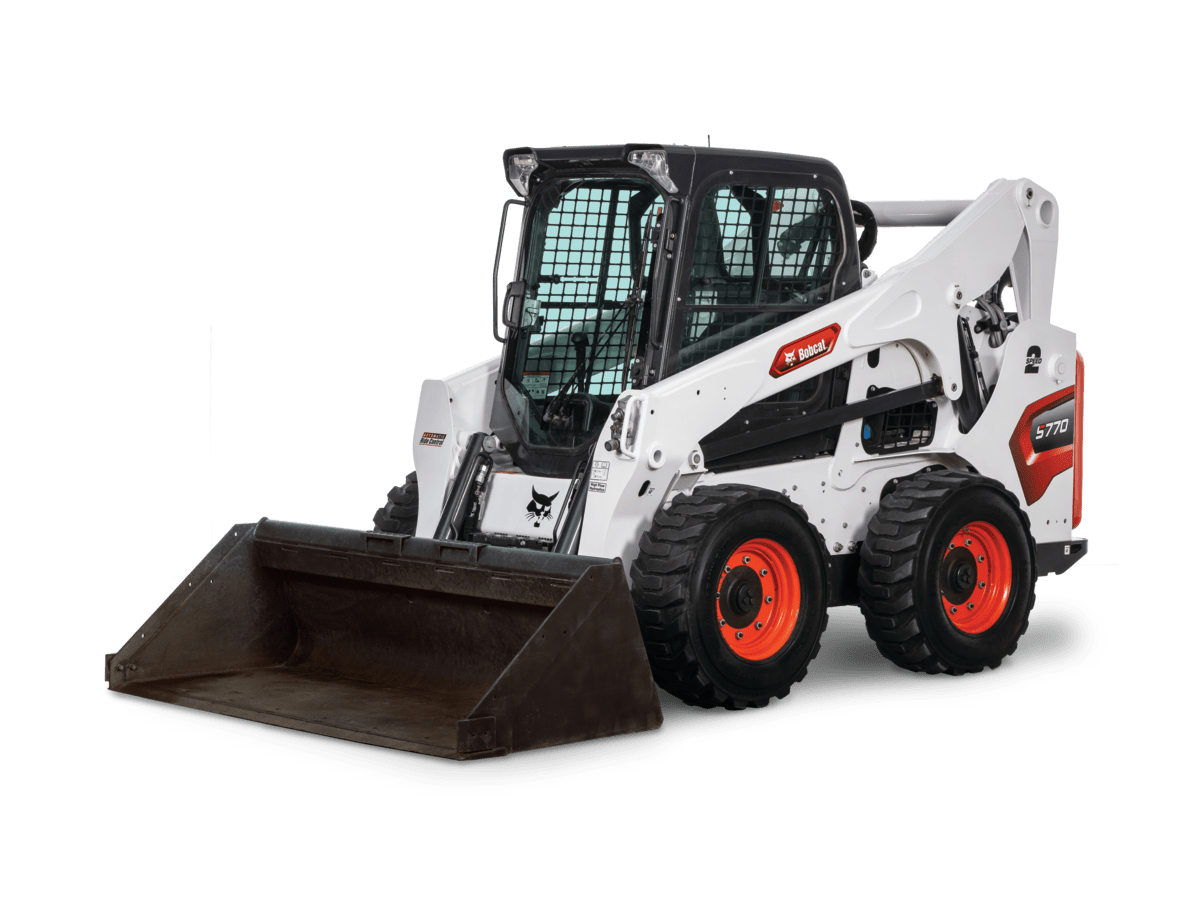

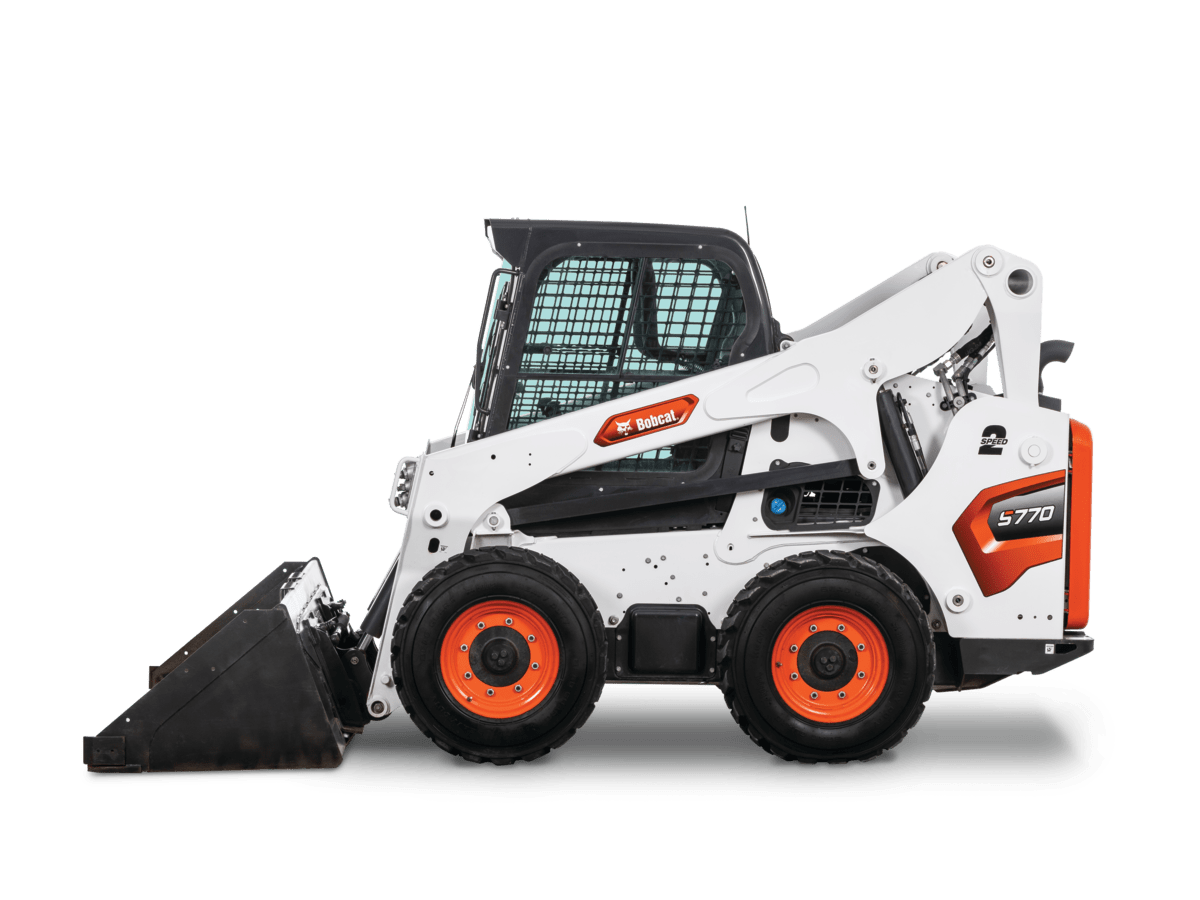

S770 Key Specifications
S770
Horsepower
92 hp
Rated Operating Capacity (ISO)
3350 lbs
Operating Weight
9314 lbs
Auxiliary Std Flow
23 gpm
Auxiliary High Flow
36.6 gpm
Joystick Control
Optional
BobQuote
S770
SSL Specs
S770
Engine
S770
Horsepower
92 hp
Turbocharged Engine
yes
Performance
S770
Rated Operating Capacity (ISO)
3350 lbs
Tipping Load
6700 lbs
Operating Weight
9314 lbs
Travel Speed
7.1 mph
Travel Speed (2-speed option)
12.3 mph
Capacities
S770
Fuel Tank
23.9 gal
Hydraulic System
S770
System Relief @ Quick Couplers
3500 psi
Auxiliary Std Flow
23 gpm
Auxiliary High Flow
36.6 gpm
Dimension
S770
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
72.1 in
Width (with bucket)
74 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Reach @ Maximum Height
33.6 in
Angle of Departure
25.1 deg
Turning Radius
85.8 in
Wheelbase
48.3 in
Controls
S770
Instrumentation
S770
Features
S770
Joystick Control
Optional
Air Conditioning
Optional
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Optional
Sound Option
Optional
Cab Heater
Optional
Operating Lights
Standard
Parking Brake
Standard
Radio
Optional
Rear Window
Standard
Top Window
Standard
Lift-Arm Support
Standard
Seat Belt
Standard
Suspension Seat
Standard
Two Speed Travel
Standard
Deluxe Instrumentation
Optional
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Optional
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
Optional
ACS (Switchable Controls)
Optional
Ride Control
Optional
Rear Hydraulics
Optional
Horn
Standard
Serviceability
S770
Chain Adjustment - Interval
0 hr
Drive System
S770
Axle Bearing Lubrication
Oil Bath
Chain Size Final
#120 HSOC
