Specs

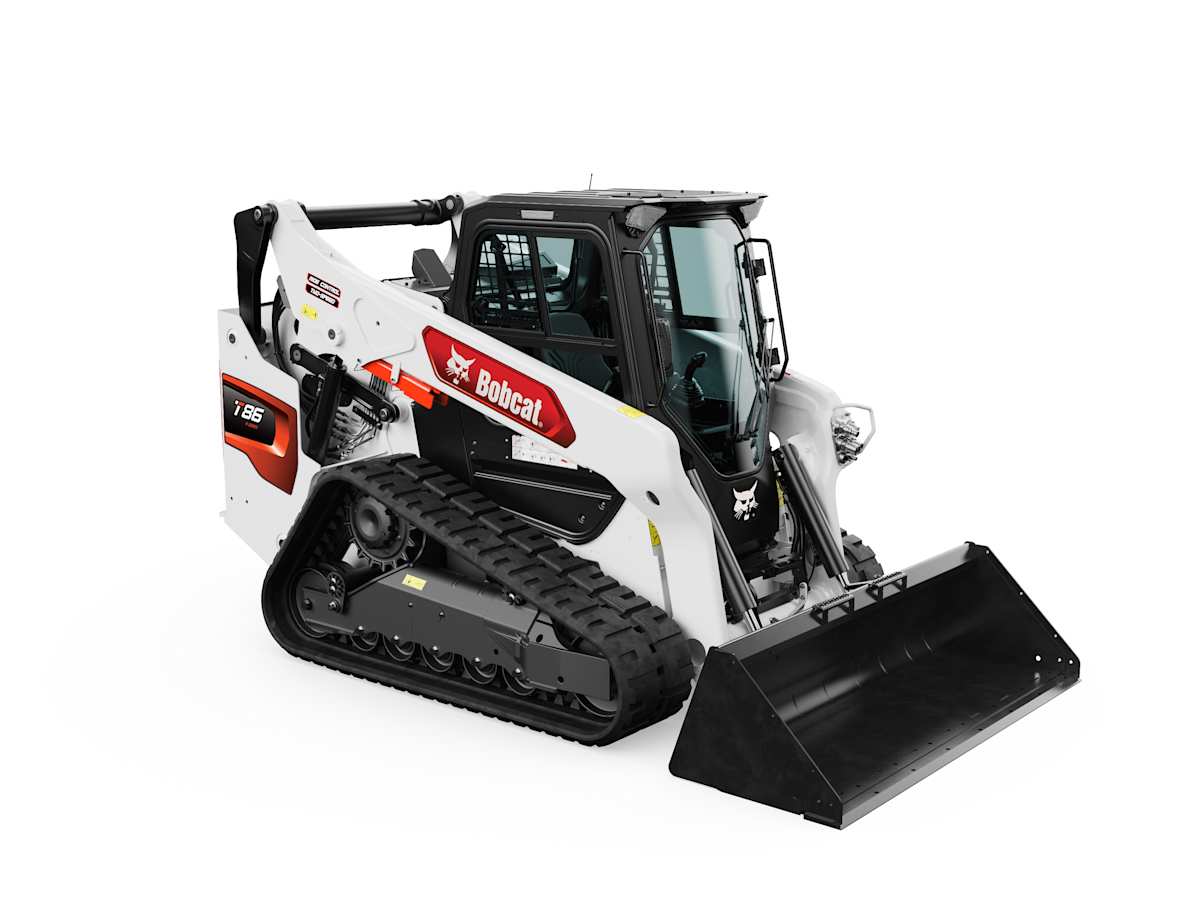

T86 Key Specifications
Rated Operating Capacity (ISO)
3,800 lb
Operating Weight
12393 lb
Ground Pressure (Rubber)
4.8 psi
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Standard <!-->
<!-->
-->Engine
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
105 hp
Turbocharged Engine
yes <!-->
Performance
Rated Operating Capacity (ISO)
3,800 lb
Rated Operating Capacity 200 lb. Counterweight
3,950 lb
Rated Operating Capacity 300 lb. Counterweight
4,025 lb
Rated Operating Capacity 400 lb. Counterweight
4,100 lb
Rated Operating Capacity with Torsion
3,700 lb
Operating Capacity (50% of Tip)
5429 lb
Tipping Load
10857 lb
Operating Weight
12393 lb
Travel Speed
5.4 mph
Travel Speed (2-speed option)
10.4 mph
Ground Pressure (Rubber)
4.8 psi
Capacities
Fuel Tank
31.6 gal
Hydraulic System
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
Hydraulic System Pressure (Super Flow)
4,061 psi
Hydraulic Standard Flow
23.6 gal/min
Hydraulic High Flow (optional)
36.6 gal/min
Hydraulic Super Flow (optional)
42 gal/min
System Relief @ Quick Couplers
3,450 psi
Auxiliary Std Flow
23.6 gal/min
Auxiliary High Flow
36.6 gal/min
Dimension
Length without Attachment
120.4 in
Width
78 in
Width (with bucket)
80 in
Height with Operator Cab
83.1 in
Height to Bucket Hinge Pin
132 in
Reach @ Maximum Height
38.4 in
Length of track on ground
66.3 in
Track Width
17.7 in
Track Width - Optional
17.7 in
Ground Pressure (Optional Tracks)
4.8 psi
Features
5-Link Torsion Suspension Undercarriage
Optional -->
Radio Remote Control (SJC required)
Optional <!-->
Reversing Fan
Optional -->
Standard Display (includes keyless start)
Standard <!-->
Speed Management
Standard -->
Heated Cloth Air-Ride Seat
Standard <!-->
LED Front and Rear Lights
Standard -->
Joystick Control
Standard <!-->
Air Conditioning
Standard -->
Backup Alarm
Standard <!-->
BICS System (Interlock)
Standard -->
Suspension Seat
Not Applicable <!-->
Two Speed Travel
Standard -->
Auxiliary Hydraulics
Standard <!-->
Bob-Tach Attachment System
Standard -->
Power Bob-Tach
Standard <!-->
Ride Control
Optional -->
Horn
Standard <!-->
Sound Option
Standard -->
Dual-Direction Bucket Positioning
Standard <!-->
