Specs

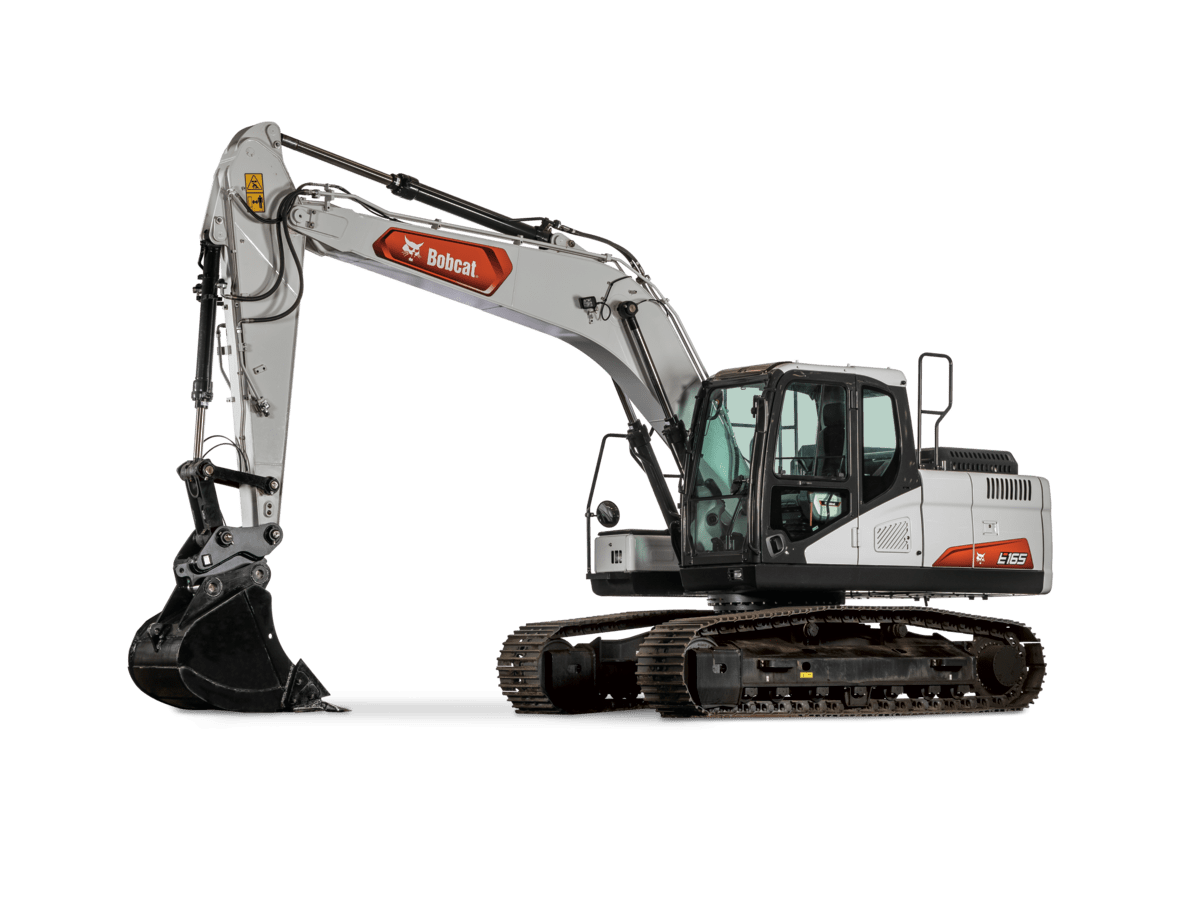

E165 Key Specifications
Operating Weight
38,376 lb
Bucket Digging Force
25,794 lbf
Maximum Reach at Ground Level
345.6 in
Width
102 in
Tail Swing Type
Conventional <!-->
<!-->
-->Engine
Emissions Tier (EPA)
Tier 4 -->
Engine Fuel
Diesel <!-->
Turbocharged Engine
yes -->
Optional Turbocharged Engine
N/A <!-->
Performance
Operating Weight
38,376 lb
Weight Class
17 t
Travel Speed - High
3.1 mph
Travel Speed - Low
1.9 mph
Arm Digging Force
18,077 lbf
Bucket Digging Force
25,794 lbf
Maximum Dig Depth
240 in
Max Dump Height
255.6 in
Maximum Reach at Ground Level
345.6 in
Capacities
Fuel Tank
77.1 gal
Hydraulic System
Auxiliary Pressure
4,694 psi
Total Hydraulic Flow
80.4 gal/min
Dimension
Length
325.2 in
Width
102 in
Height
120 in
Height with Operator Cab
115.2 in
Features
Air Conditioning
Standard -->
Cab Enclosure
Standard <!-->
Heater Air Conditioning
Standard -->
Radio
Standard <!-->
Tail Swing Type
Conventional -->
Auxiliary Hydraulics
Standard <!-->
Quick Tach System
Optional -->
Rubber Track
Not Applicable <!-->
Selectable Auxiliary Hydraulic Flow
Standard -->
Dozer Blade
Not Applicable <!-->
