Specs

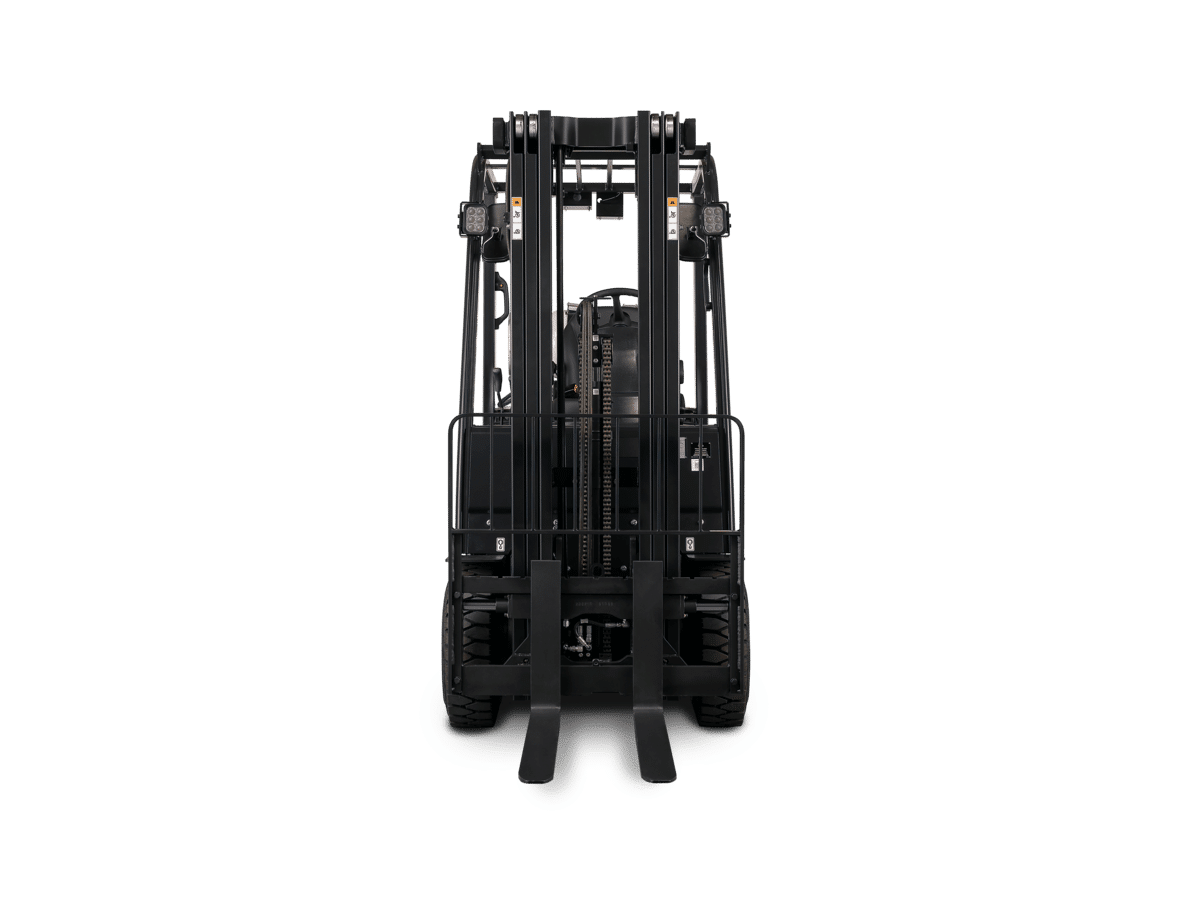

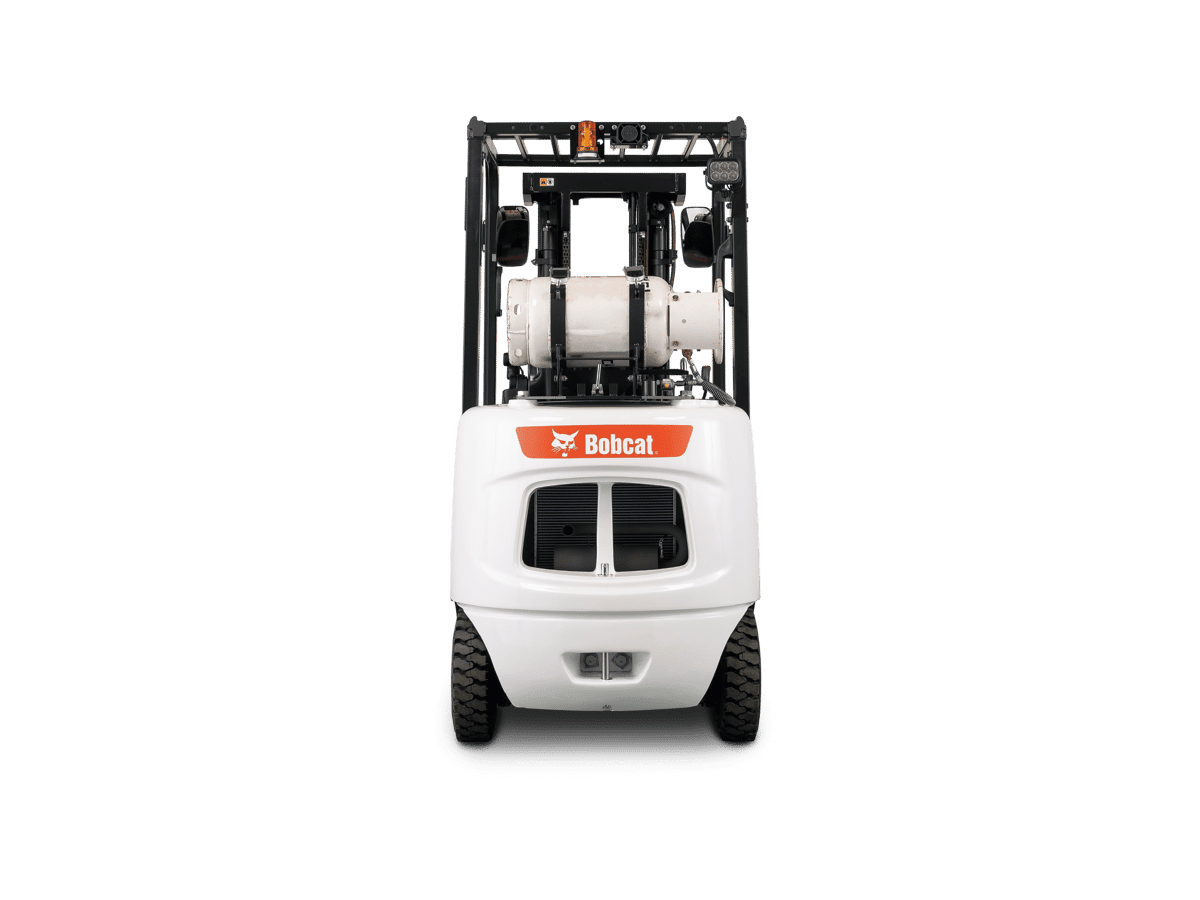

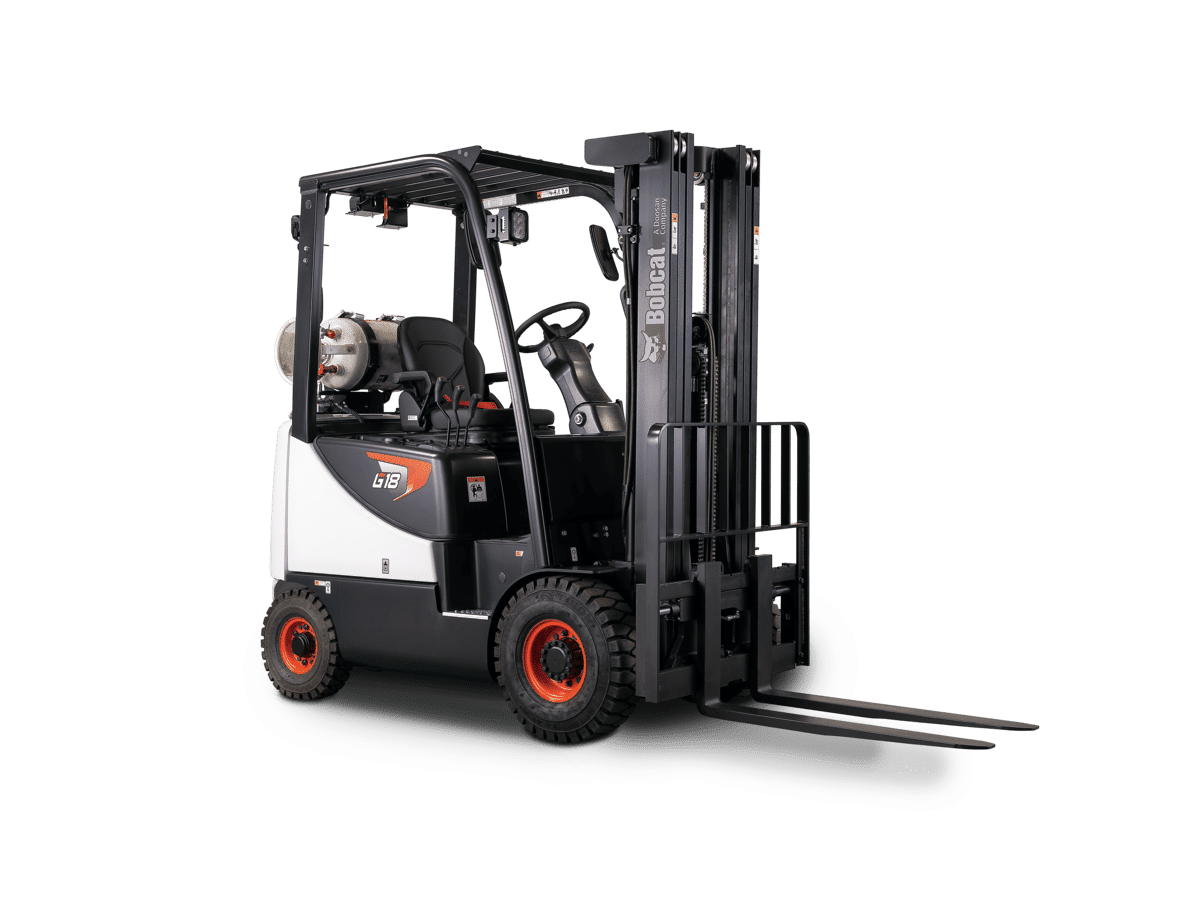

Small-Capacity LPG Pneumatic Tire Forklifts Key Specifications
G15S-5
G18S-5
G20C-5
Max Load Capacity
3000 lbs
3500 lbs
4000 lbs
BobQuote
G15S-5
G18S-5
G20C-5
Engine
G15S-5
G18S-5
G20C-5
Engine Model
HMC2.4
HMC2.4
HMC2.4
Performance
G15S-5
G18S-5
G20C-5
Load Center
24 in
24 in
24 in
Travel Speed - Loaded
11.2 mph
11.2 mph
11.2 mph
Travel Speed - Unloaded
11.8 mph
11.8 mph
11.8 mph
Lift Speed - Loaded
23.6 ft/min
23.6 ft/min
23.6 ft/min
Lift Speed - Unloaded
25.6 ft/min
25.6 ft/min
25.6 ft/min
Max Load Capacity
3000 lbs
3500 lbs
4000 lbs
Machine Rated Capacity
3000 lbs
3500 lbs
4000 lbs
Capacities
G15S-5
G18S-5
G20C-5
Ground Clearance Loaded
4.7 in
4.7 in
4.7 in
Ground Clearance Unloaded
5.9 in
Dimension
G15S-5
G18S-5
G20C-5
Overhead Guard Height
85.4 in
85.4 in
85.4 in
Load Management Center
15.5 in
15.5 in
15.7 in
Free Lift
5.3 in
5.3 in
5.3 in
Height - Mast Lowered
86 in
86 in
86 in
Length
120.8 in
122.6 in
124 in
Wheelbase
55.1 in
55.1 in
55.1 in
Price
G15S-5
G18S-5
G20C-5
Additional Product Information
G15S-5
G18S-5
G20C-5
Electrical System
G15S-5
G18S-5
G20C-5
Rated power
50.15 hp
50.15 hp
50.15 hp
DIV Specs
G15S-5
G18S-5
G20C-5
Width
42.1 in (1070 mm)
Outside Turning Radius
80.7 in
