Specs

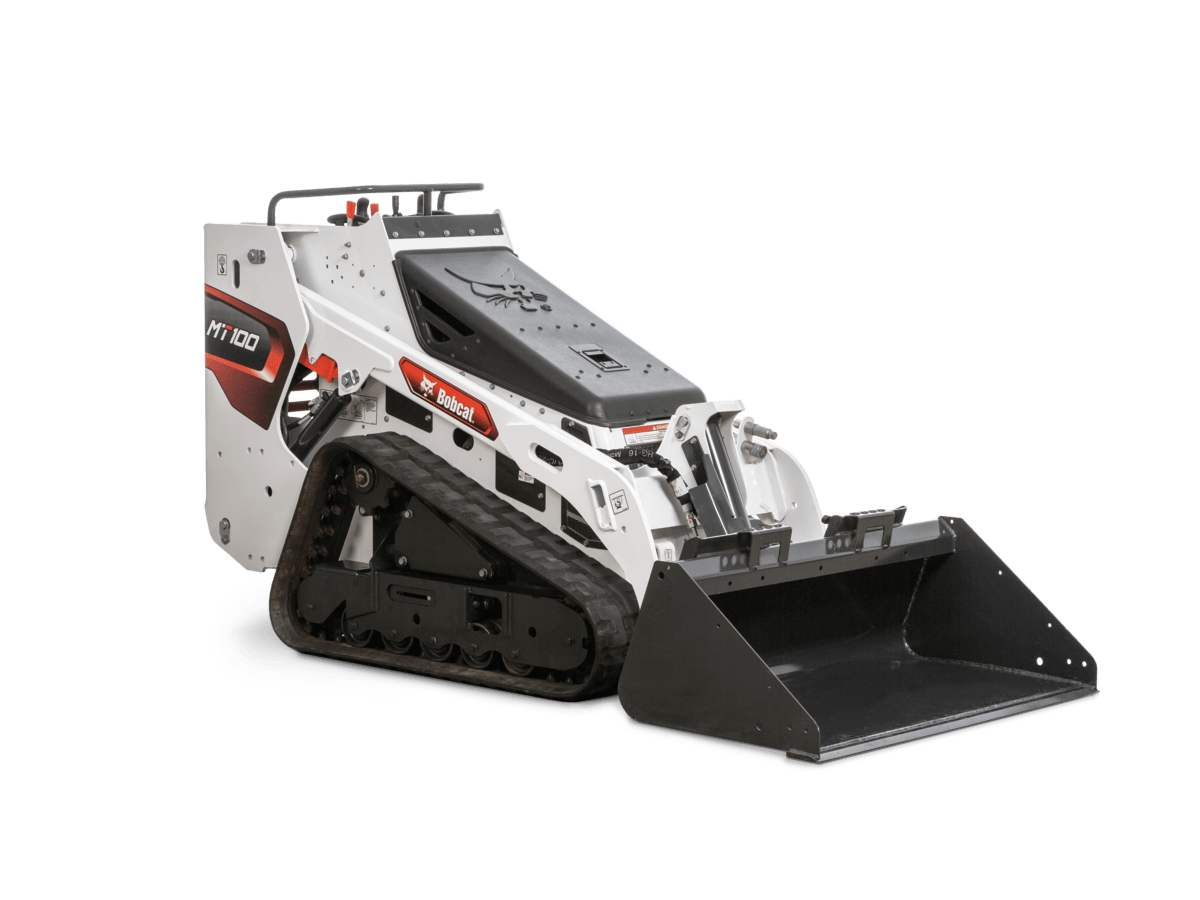

MT100 Key Specifications
Rated Operating Capacity (ISO)
1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position
1,300 lb
Operating Weight
3390 lb
Ground Pressure (Rubber)
5.25 psi
Auxiliary Std Flow
12 gal/min
Width
35.6 in
Height to Bucket Hinge Pin
80.9 in
-->
<!-->Engine
Emissions Tier (EPA)
Tier 4 <!-->
Engine Cooling
Liquid -->
Engine Fuel
Diesel <!-->
Displacement
55 in³
Number of Cylinders
3 -->
Horsepower
24.8 hp
Performance
Rated Operating Capacity (ISO)
1,000 lb
Carry Position ROC with Standard Counterweight -UnderCarriage Position
1,300 lb
Tipping Load
2898 lb
Operating Weight
3390 lb
Ground Pressure (Rubber)
5.25 psi
Travel Speed
4.1 mph
Travel Speed - Reverse
2.9 mph
Capacities
Fuel Tank
7 gal <!-->
Hydraulic System
Pump Capacity
12 gal/min
System Relief @ Quick Couplers
2,900 psi
Auxiliary Std Flow
12 gal/min
Dimension
Length
106.2 in
Width
35.6 in
Height
54.6 in
Height to Bucket Hinge Pin
80.9 in
Length of track on ground
41.4 in
Reach @ Maximum Height
18.6 in
Features
Lift-Arm Support
Standard -->
Auxiliary Hydraulics
Standard <!-->
Spark Arrestor Muffler
Standard -->
Bob-Tach Attachment System
Standard <!-->
Reverse Travel Stop Panel
Not Applicable -->
Wide Track
Optional <!-->
Neutral Start Interlocks
Standard -->
Lift Arm Lockout With Manual Bypass
Standard <!-->
Tilt Lockout
Standard -->
Built-In Tie Down & Crane/Lift Locations
Standard <!-->
Ride-on Platform
Standard -->
