Specs

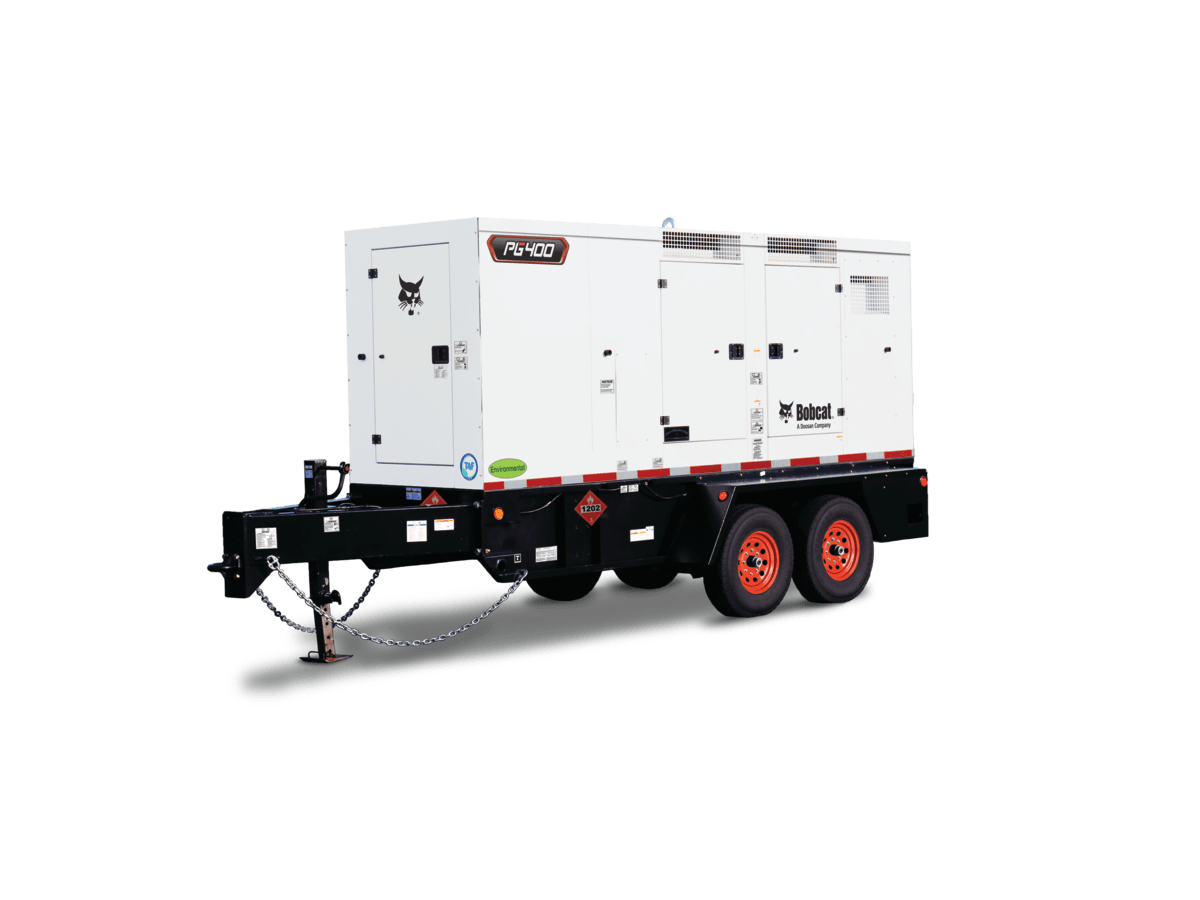

PG400 Key Specifications
PG400 <!-->
Runtime Hours @ 75% Load
27 -->
Power Output @ 1800RPM
475 hp
Engine
--> PG400 <!-->
Engine Make
Cummins -->
Displacement
11.8 l
Emissions Tier Level
Tier 4 Final <!-->
Aftertreatment Technology
DOC / SCR / DPF -->
Capacities
<!--> PG400 -->
Diesel Exhaust Fluid (DEF) Capacity
46 gal
Fuel Tank Capacity
470 gal
Dimensions
<!--> PG400 -->
Length
241 in
Width
83 in
Height
115 in
Prime Power Rating
<!--> PG400 -->
@ 480V-3-phase, 0.8PF, 60Hz
402 kVA (321 kW), 484 Amps <!-->
@ 240V-3-phase, 0.8PF, 60Hz
402 kVA (321 kW), 969 Amps -->
@ 208V-3-phase, 0.8PF, 60Hz
402 kVA (321 kW), 1118 Amps <!-->
@ 240V-single-phase, 1.0PF, 60Hz
216 kVA (216 kW), 900 Amps -->
@ 120V-single-phase, 1.0PF, 60Hz
216 kVA (216 kW), 900 x 2 Amps <!-->
@ 400V-3-phase, 0.8PF, 50H
387 kVA (310 kW), 559 Amps -->
Voltage Configuration
Link Board <!-->
Runtime Hours @ 75% Load
27 -->
Sound Level
76 dB(A) <!-->
Frequency Capability
50Hz/60Hz Switchable -->
Power Output @ 1800RPM
475 hp
