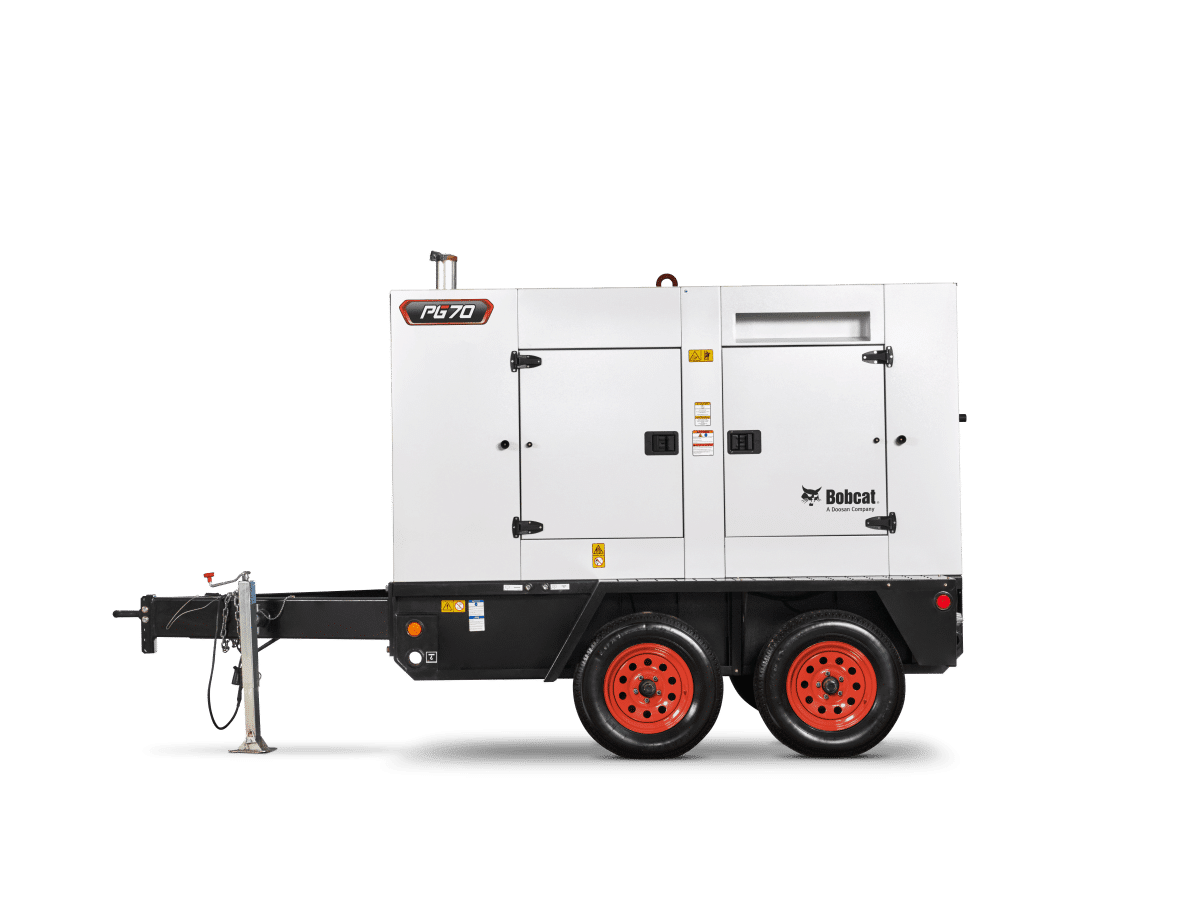

Bob Cat PG70 Portable Generator

Contact us for price

Stock status: Call Store for Availability

Ideal for construction sites, special events, irrigation and municipalities, the Bobcat® PG70 portable generator offers versatility in a compact design.

Call Us Now

Specs

PG70 Key Specifications

Runtime Hours @ 75% Load
50
Power Output @ 1800RPM
84 hp




PG70 Key Specifications

Runtime Hours @ 75% Load
50
Power Output @ 1800RPM
84 hp


Engine

Engine Make
Cummins
Displacement
3.8 l
Emissions Tier Level
Tier 4 Final
Aftertreatment Technology
DOC / SCR / DPF

Capacities

Diesel Exhaust Fluid (DEF) Capacity
14.7 gal
Fuel Tank Capacity
172 gal

Dimensions

Length
166.1 in
Width
72.5 in
Height
94.7 in

Prime Power Rating

@ 480V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 84 Amps
@ 240V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 168 Amps
@ 208V-3-phase, 0.8PF, 60Hz
70 kVA (56 kW), 194 Amps
@ 240V-single-phase, 1.0PF, 60Hz
50 kVA (50 kW), 208 Amps
@ 120V-single-phase, 1.0PF, 60Hz
50 kVA (50 kW), 208 x 2 Amps
@ 400V-3-phase, 0.8PF, 50H
65 kVA (52 kW), 94 Amps
Voltage Configuration
3-Position Switch
Runtime Hours @ 75% Load
50
Sound Level
65 dB(A)
Frequency Capability
50Hz/60Hz Switchable
Power Output @ 1800RPM
84 hp
