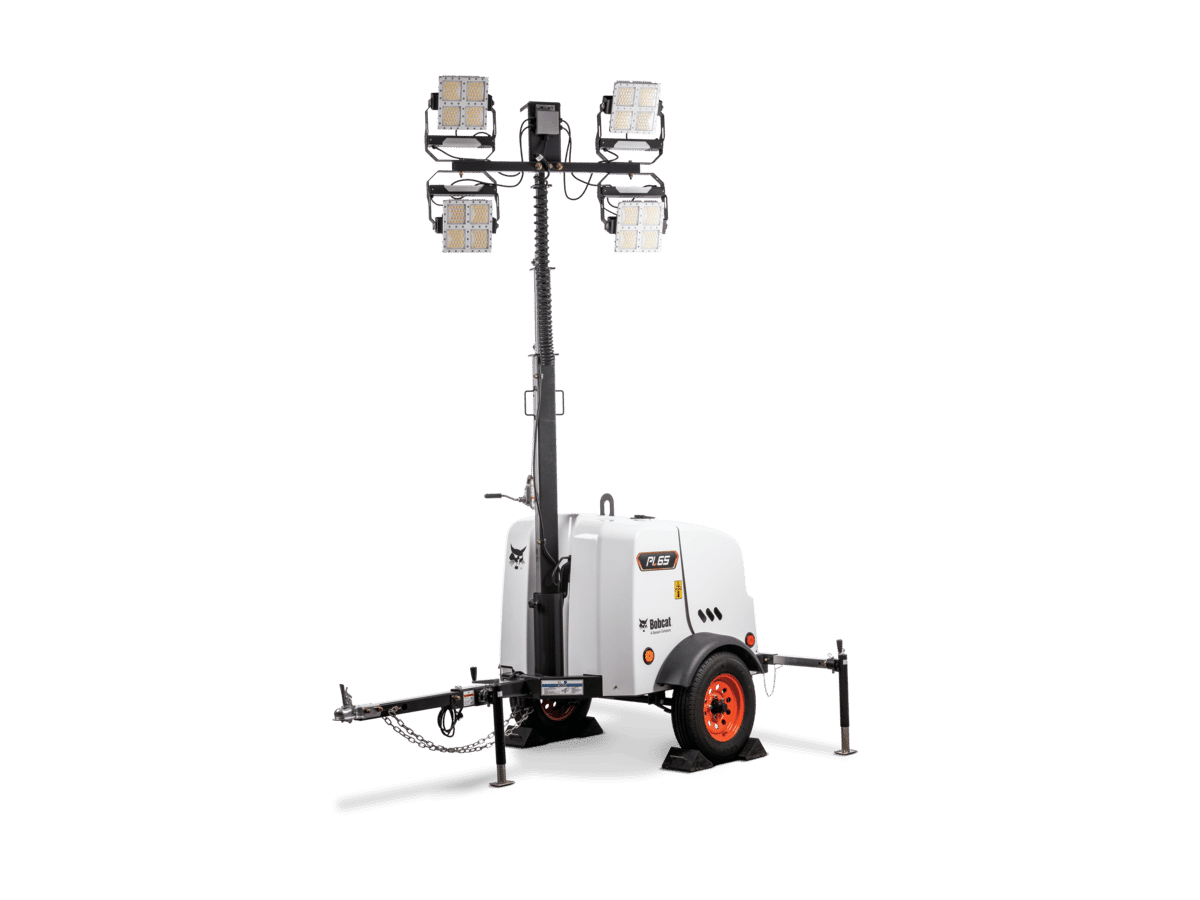

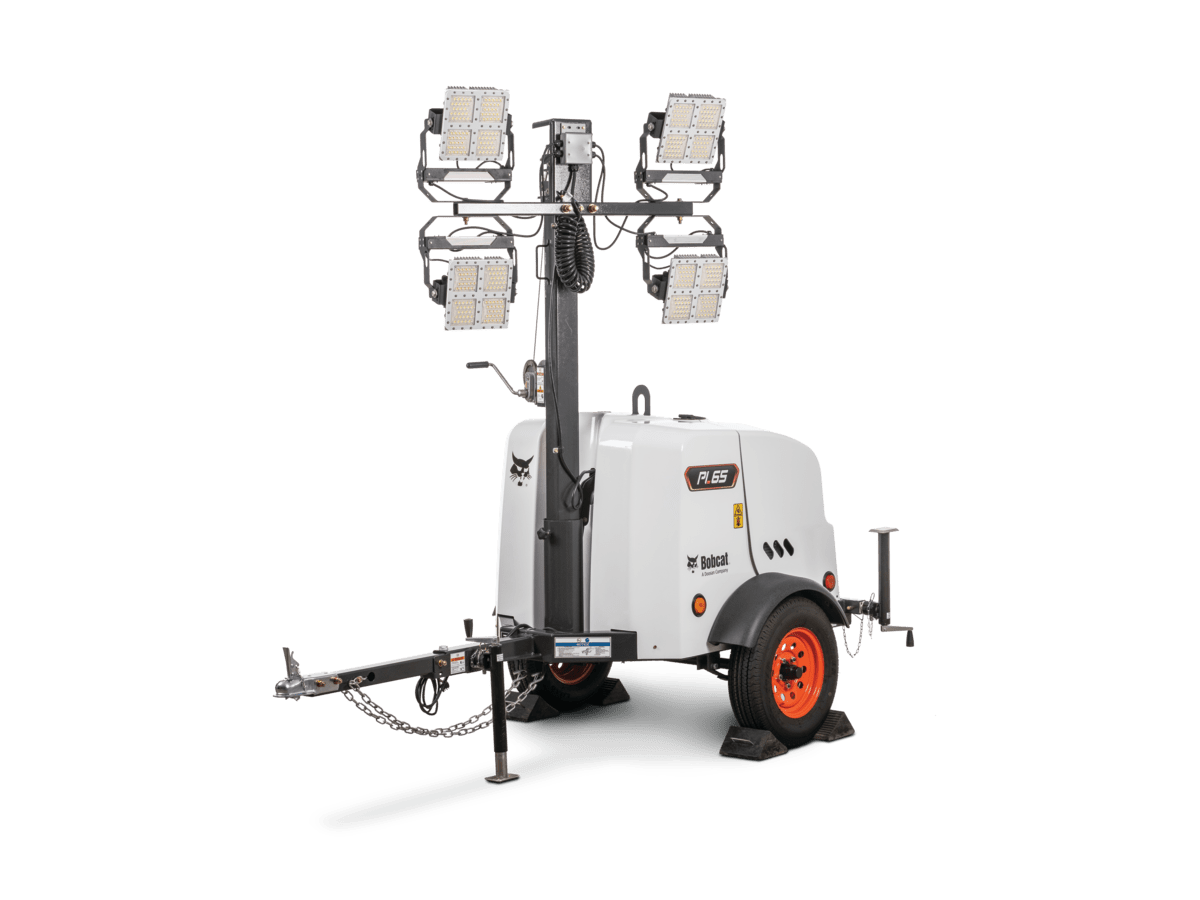

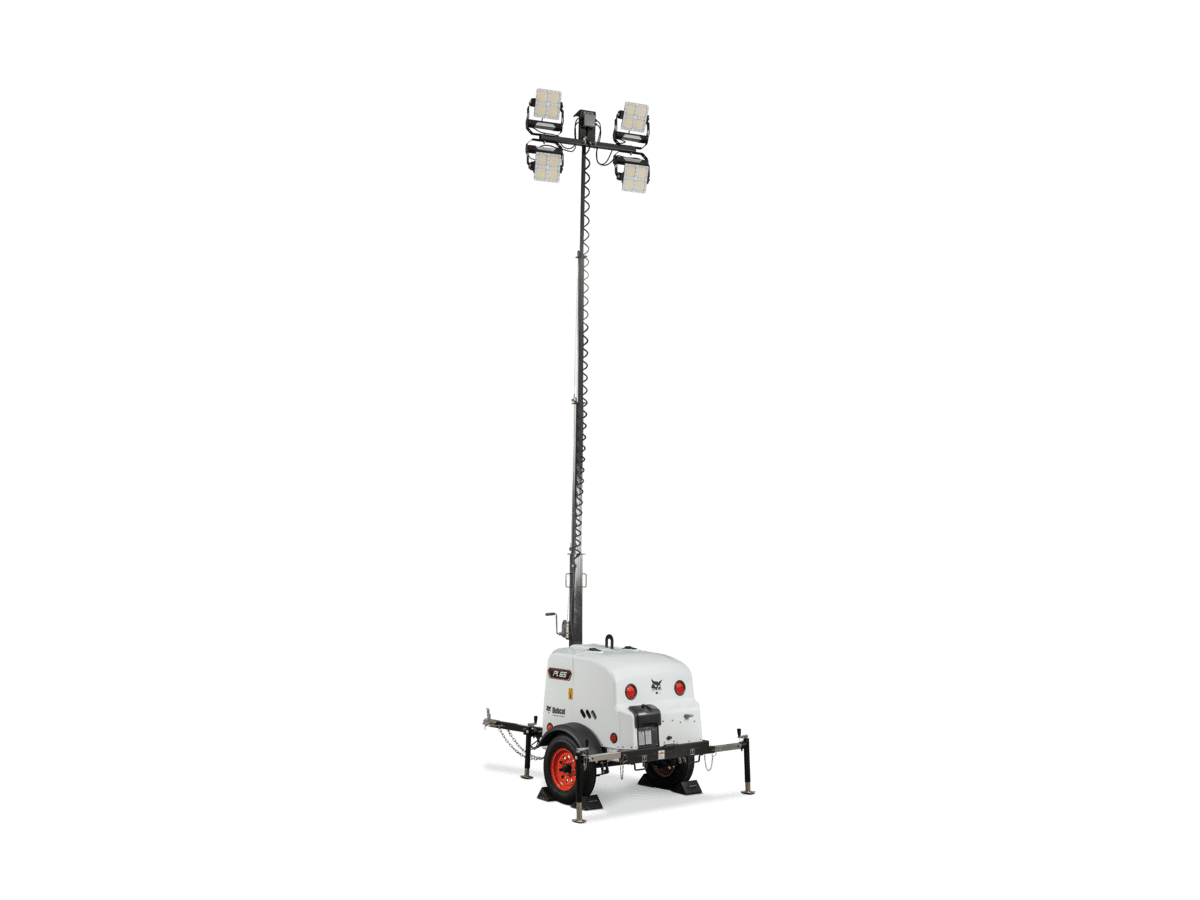

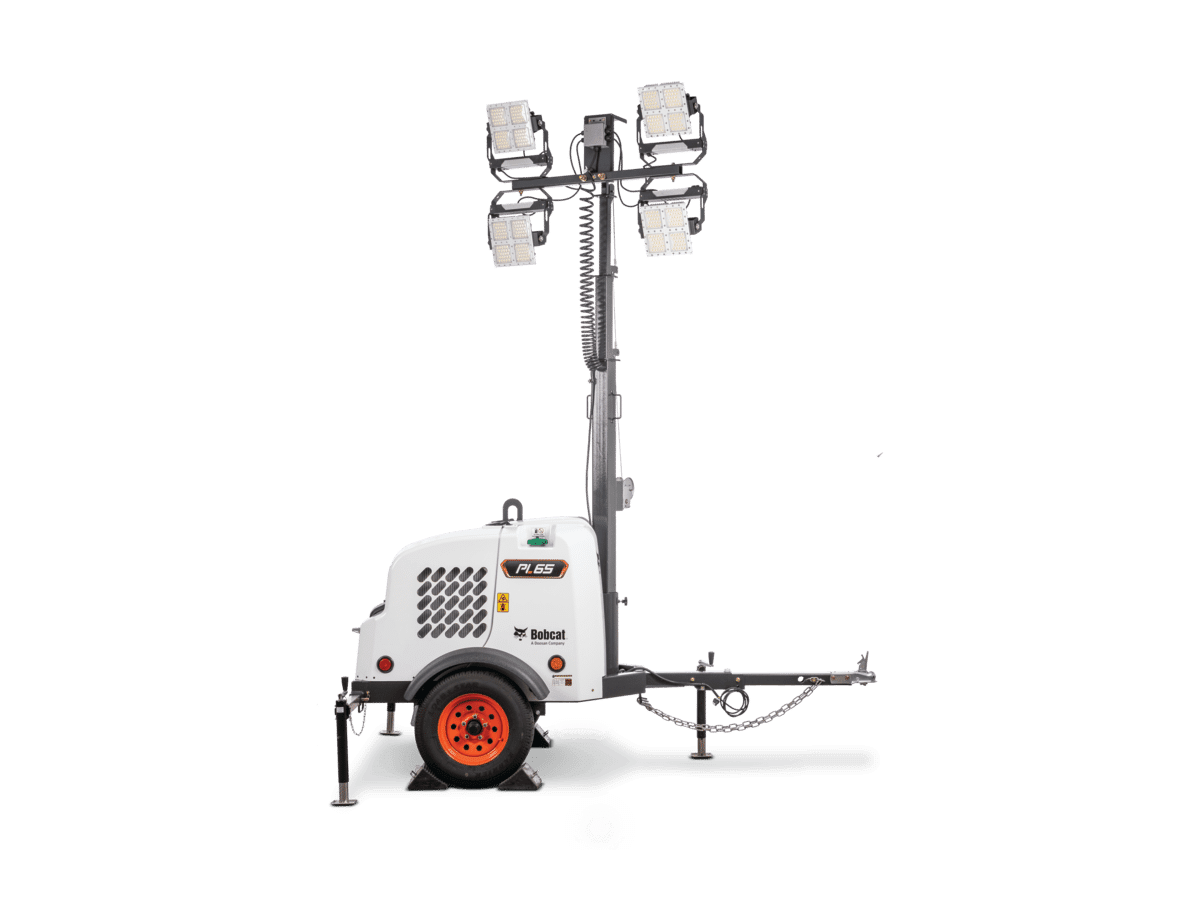

Bob Cat PL65 Light Tower

Contact us for price

Stock status: Call Store for Availability

The Bobcat® PL65 portable light tower provides long runtimes and even longer maintenance intervals for easy, hassle-free operation.

Call Us Now

Specs

PL65 Key Specifications

Runtime with 4 Metal Halide Lights
119 h
Runtime with 4 LED Lights
210 h
Prime Power Rating
6 kW -->
<!-->


System Voltage
12 V
Emissions Tier (EPA)
Tier 4 -->
Engine Make
Kubota <!-->
Displacement
61.02 in³
Emissions Tier Level
Tier 4 Final -->
Cooling System
Water / Glycol <!-->
Fuel Type
#2 Ultra-Low Sulfur Diesel -->
Usable Fuel Capacity
52.4 gal
Runtime with 4 Metal Halide Lights
119 h
Runtime with 4 LED Lights
210 h
Operating Weight
1,669 lb
Rated Speed
13.1 (9.7) @ 1800 RPM <!-->
Length with Drawbar Down
109 in
Length with Drawbar Up
82 in
Width
55 in
Width without Outriggers Deployed
82 in
Track Width
47.4 in
Height with Tower in Transport Position
8.5 ft
Height with Tower Deployed
23 ft
Prime Power Rating
6 kW -->
Available Frequency
60 Hz
120V GFCI Duplex (NEMA 5-20R)
(1) Standard (2) Optional <!-->
240V Twist lock (NEMA L6-30R)
(1) Optional -->
<!-->


PL65 Key Specifications

-->
Runtime with 4 Metal Halide Lights
119 h
Runtime with 4 LED Lights
210 h
Prime Power Rating
6 kW -->
<!-->


Electrical System

-->
System Voltage
12 V

Engine

-->
Emissions Tier (EPA)
Tier 4 -->
Engine Make
Kubota <!-->
Displacement
61.02 in³
Emissions Tier Level
Tier 4 Final -->
Cooling System
Water / Glycol <!-->
Fuel Type
#2 Ultra-Low Sulfur Diesel -->
Usable Fuel Capacity
52.4 gal
Runtime with 4 Metal Halide Lights
119 h
Runtime with 4 LED Lights
210 h

Performance

<!-->
Operating Weight
1,669 lb
Rated Speed
13.1 (9.7) @ 1800 RPM <!-->

Dimensions

-->
Length with Drawbar Down
109 in
Length with Drawbar Up
82 in
Width
55 in
Width without Outriggers Deployed
82 in
Track Width
47.4 in
Height with Tower in Transport Position
8.5 ft
Height with Tower Deployed
23 ft

Generator

-->
Prime Power Rating
6 kW -->
Available Frequency
60 Hz

Receptacles

<!-->
120V GFCI Duplex (NEMA 5-20R)
(1) Standard (2) Optional <!-->
240V Twist lock (NEMA L6-30R)
(1) Optional -->
<!-->
-->
