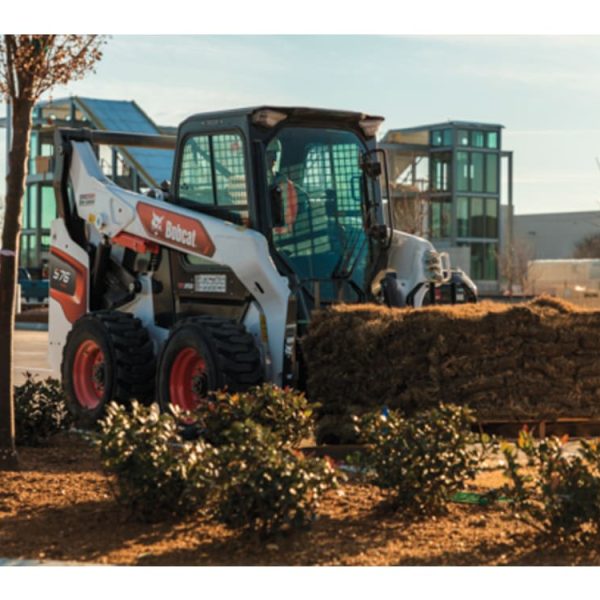

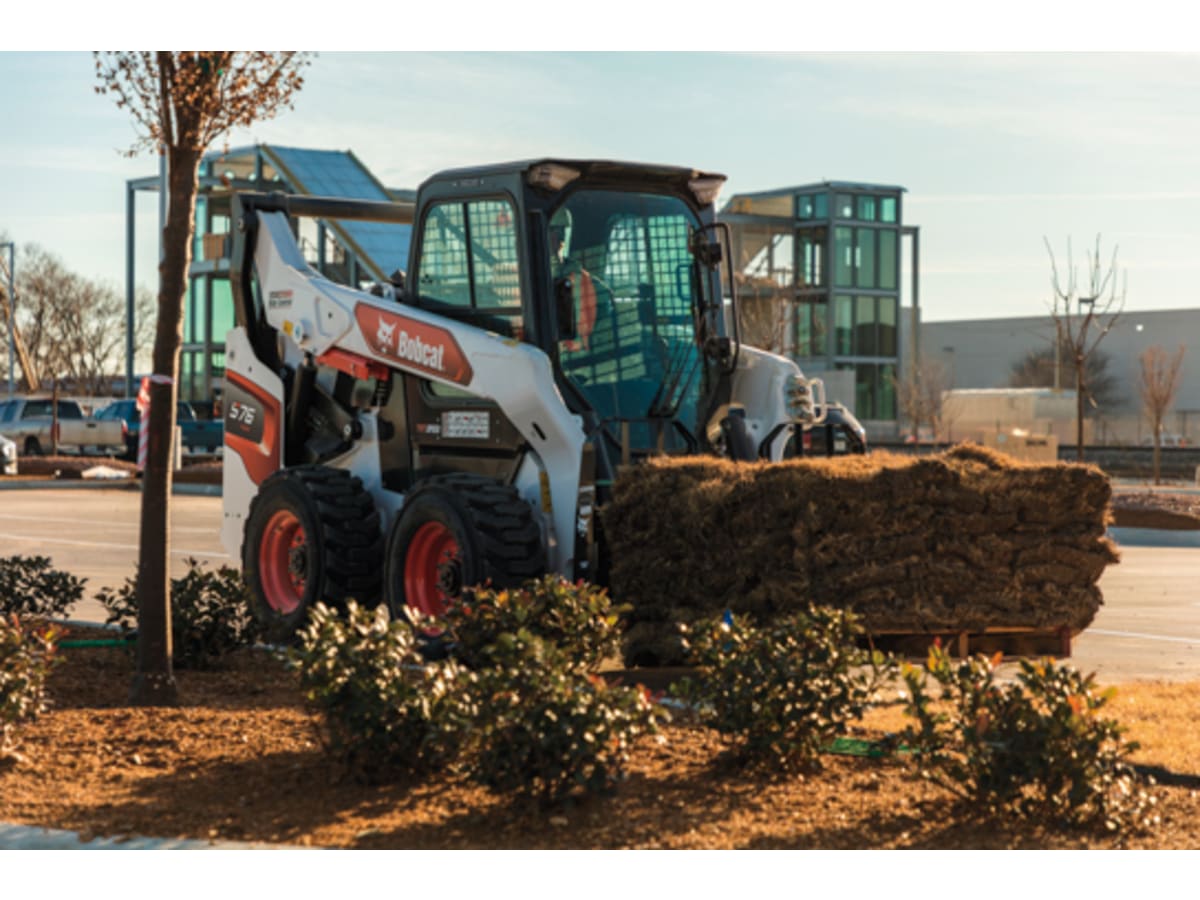

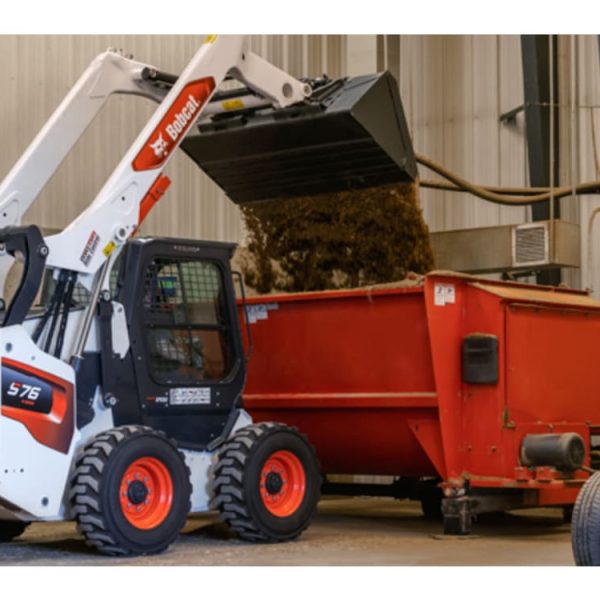

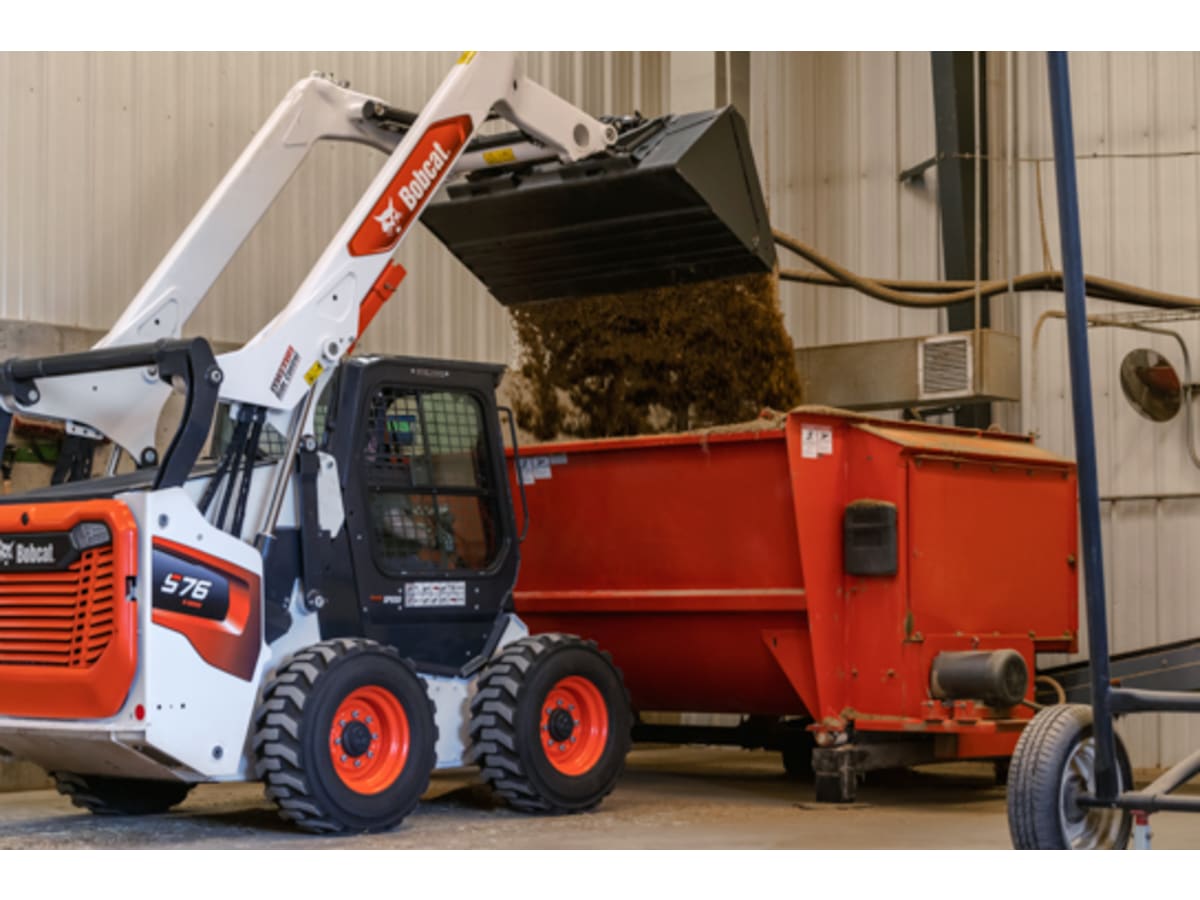

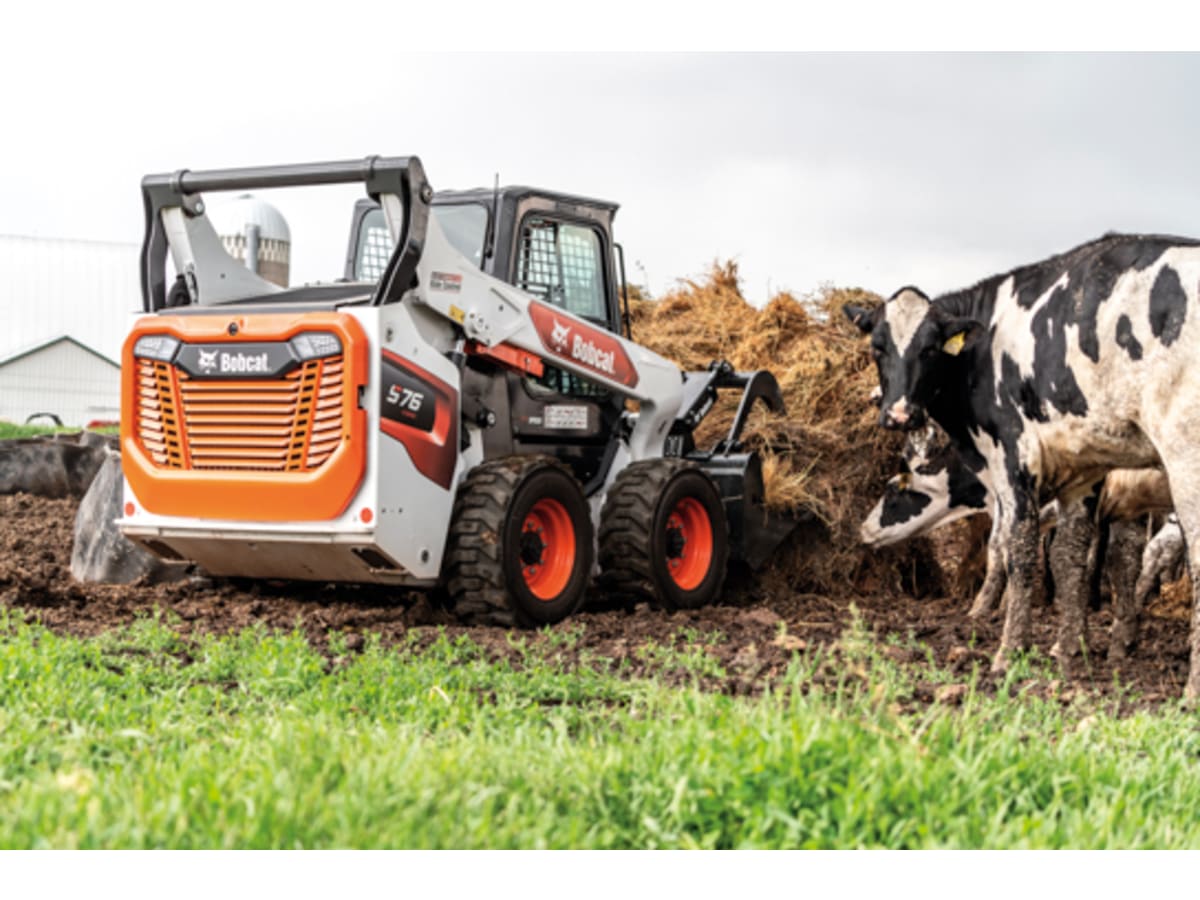

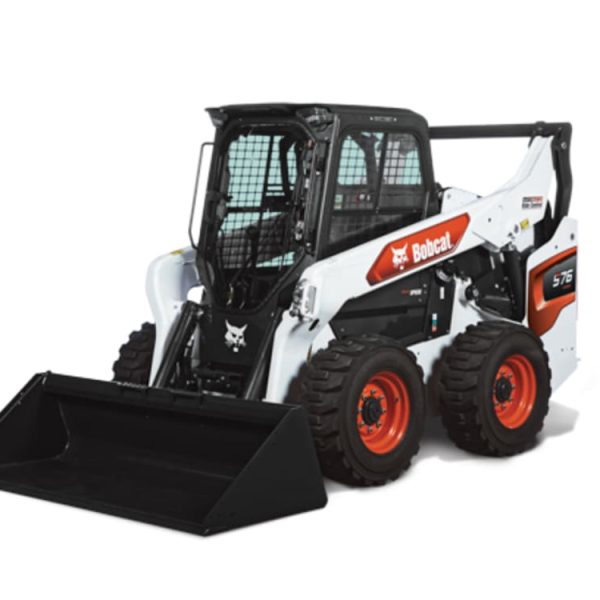

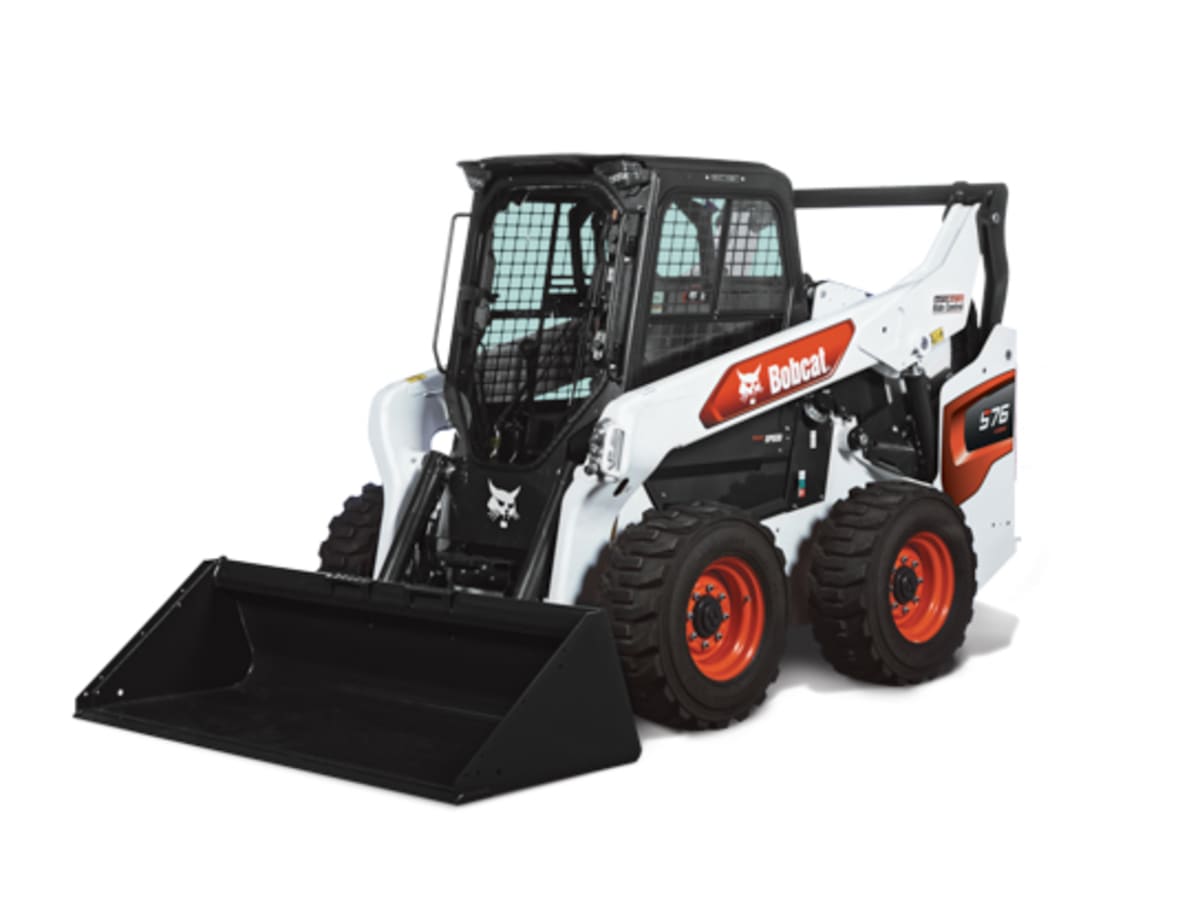

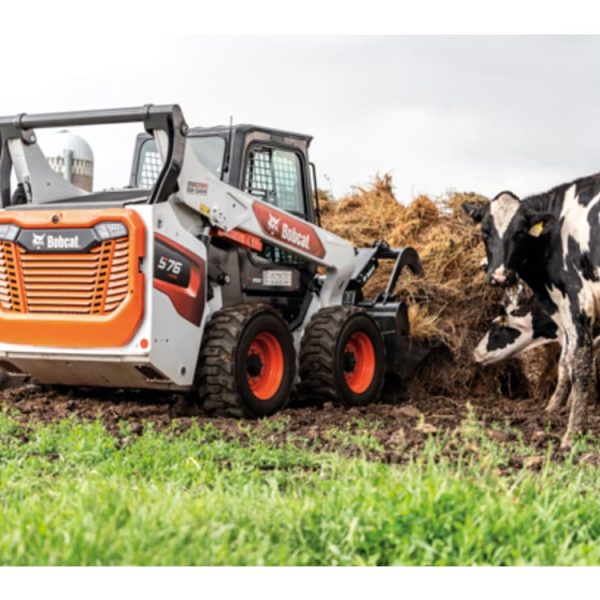

Bob Cat S76 Skid-Steer Loader

Contact us for price

Stock status: Call Store for Availability

The Bobcat® S76 skid-steer loader is designed to help you accomplish more with one machine.

Pay as low as 0% for up to 36 months* or choose a $1,100 USD*/$1,400 CAD* rebate on Bobcat S76 skid-steer loaders.

Call Us Now

Specs

S76 Key Specifications

Horsepower
74 hp
Rated Operating Capacity (ISO)
2,900 lb
Operating Weight
8615 lb
Auxiliary Std Flow
23.3 gal/min
Auxiliary High Flow
30.3 gal/min
Joystick Control
Optional -->
<!-->


Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
74 hp
Turbocharged Engine
yes <!-->
Horsepower Management
Included with SJC Option -->
Rated Operating Capacity (ISO)
2,900 lb
Rated Operating Capacity 200 lb. Counterweight
3,050 lb
Rated Operating Capacity 300 lb. Counterweight
3,100 lb
Tipping Load
5800 lb
Operating Weight
8615 lb
Travel Speed
6.8 mph
Travel Speed (2-speed option)
11.8 mph
Fuel Tank
31.7 gal
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23.3 gal/min
Auxiliary High Flow
30.3 gal/min
Length
147.1 in
Length without Attachment
113.9 in
Length with Standard Bucket
147.1 in
Width
72 in
Width (with bucket)
74 in
Height
81.8 in
Height with Operator Cab
81.8 in
Height to Bucket Hinge Pin
128.3 in
Reach @ Maximum Height
37.4 in
Turning Radius
87.7 in
Wheelbase
48.3 in
Joystick Control
Optional <!-->
Air Conditioning
Standard -->
Adjustable Seat
Standard <!-->
Backup Alarm
Standard -->
BICS System (Interlock)
Standard <!-->
Cab Enclosure
Standard -->
Sound Option
Standard <!-->
Cab Heater
Standard -->
Operating Lights
Standard <!-->
LED Front and Rear Lights
Standard -->
Standard Display (includes keyless start)
Standard <!-->
Speed Management
Included with SJC Option -->
Parking Brake
Wedge Brake System <!-->
Radio
Standard -->
Rear Window
Standard <!-->
Top Window
Standard -->
Lift-Arm Support
Standard <!-->
Seat Belt
Standard -->
Suspension Seat
Not Applicable  <!-->
Heated Cloth Air-Ride Seat
Standard -->
Two Speed Travel
Standard <!-->
Deluxe Instrumentation
Not Applicable  -->
Engine Shutdown
Standard <!-->
Hydraulic Bucket Positioning
Not Applicable  -->
Dual-Direction Bucket Positioning
Standard <!-->
High Flow Option
Optional -->
Auxiliary Hydraulics
Standard <!-->
Spark Arrestor Muffler
DOC -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Not Applicable  <!-->
Ride Control
Standard -->
Radio Remote Control (SJC Required)
Optional <!-->
Reversing Fan
Optional -->
Rear Hydraulics
Optional <!-->
Horn
Standard -->
<!-->
-->
