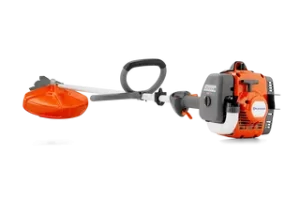

Husqvarna 336FR

Contact us for price

Stock status: Call Store for Availability

Husqvarna 336FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits from both the grass blade and saw blade in one product. The X-Torq® engine provides raw power and excellent fuel economy. Delivered with Balance 35 harness.
Call Us Now

Specs

T35 + Multi 300-3(1"), Scarlett 200-22 , US 50

SKU: 966 60 47‑04

Engine
T35 + Multi 300-3(1"), Scarlett 200-22 , US 50
SKU: 966 60 47‑04
Cylinder displacement2.1 cu.inch
Output shaft power1
1.7 hp
Fuel tank volume20.3 fl oz
Fuel consumption435 g/kWh
Maximum power speed8,400 rpm
Idling speed2,900 rpm
Maximum rpm output shaft8,220 rpm
Electrode gap0.02 in
Clutch engagement speed (±120)3,800 rpm
Torque, max.1.8 Nm
Torque, max. at rpm6,600 rpm
Spark PlugChampion RCJ6Y
Output shaft threadM12x1.75V
Equipment
Grass bladeMulti 300-3
HarnessBalance 35
Saw bladeScarlett 200-22
Trimmer headT35 M12
Handle typeBullhorn twistable
Control
ConnectivityNot applicable
Capacity
Cutting width18.5 in
Transmission
Gear ratio1.4
Drive gear angle35 °
Dimensions
Tube diameter1.1 in
Weight (excl. cutting equipment)15.4 lbs
Tube length58.386 in
Lubricant
Lubricant type (Engine)Husqvarna 2 stroke or equiv. at 50:1
Lubricant type (bevel gear)Mineral grease
Sound and noise
Sound pressure level at operators ear98 dB(A)
Sound power level, guaranteed (LWA)113 dB(A)
Sound power level, measured112 dB(A)
Emission
Exhaust emissions (HC average) EU40.51 g/kWh
Exhaust emissions (HC average) CARB29.31 g/kWh
Exhaust emissions (HC average) EPA29.31 g/kWh
Exhaust emissions (CO average) EU418.31 g/kWh
Exhaust emissions (CO average) EPA243.69 g/kWh
Exhaust emissions (CO average) CARB243.69 g/kWh
Exhaust emissions (NOx average) EU0.46 g/kWh
Exhaust emissions (NOx average) EPA1.09 g/kWh
Exhaust emissions (NOx average) CARB1.09 g/kWh
Vibration
Equivalent vibration level (ahv, eq) left handle3.7 m/s²
Equivalent vibration level (ahv, eq) right handle2.7 m/s²
