Specs

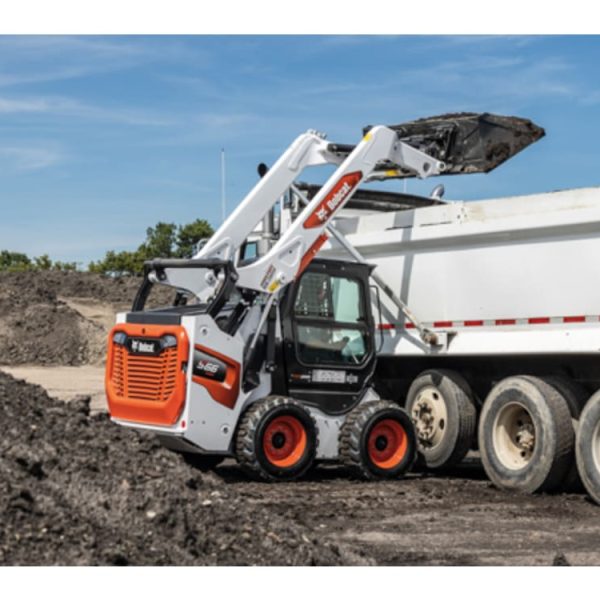

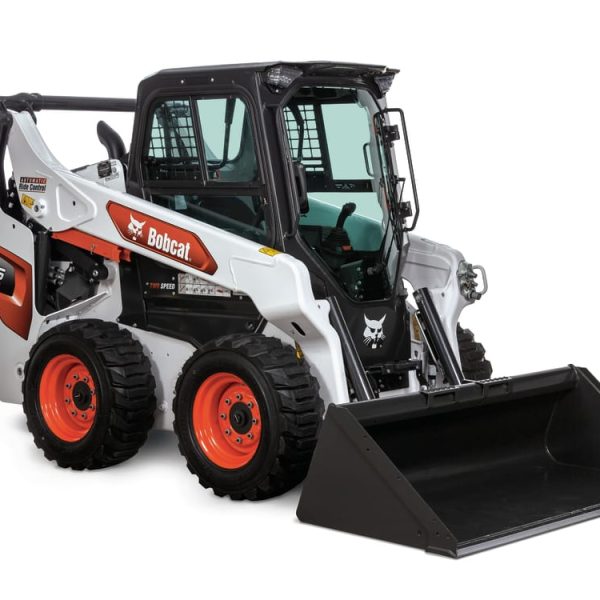

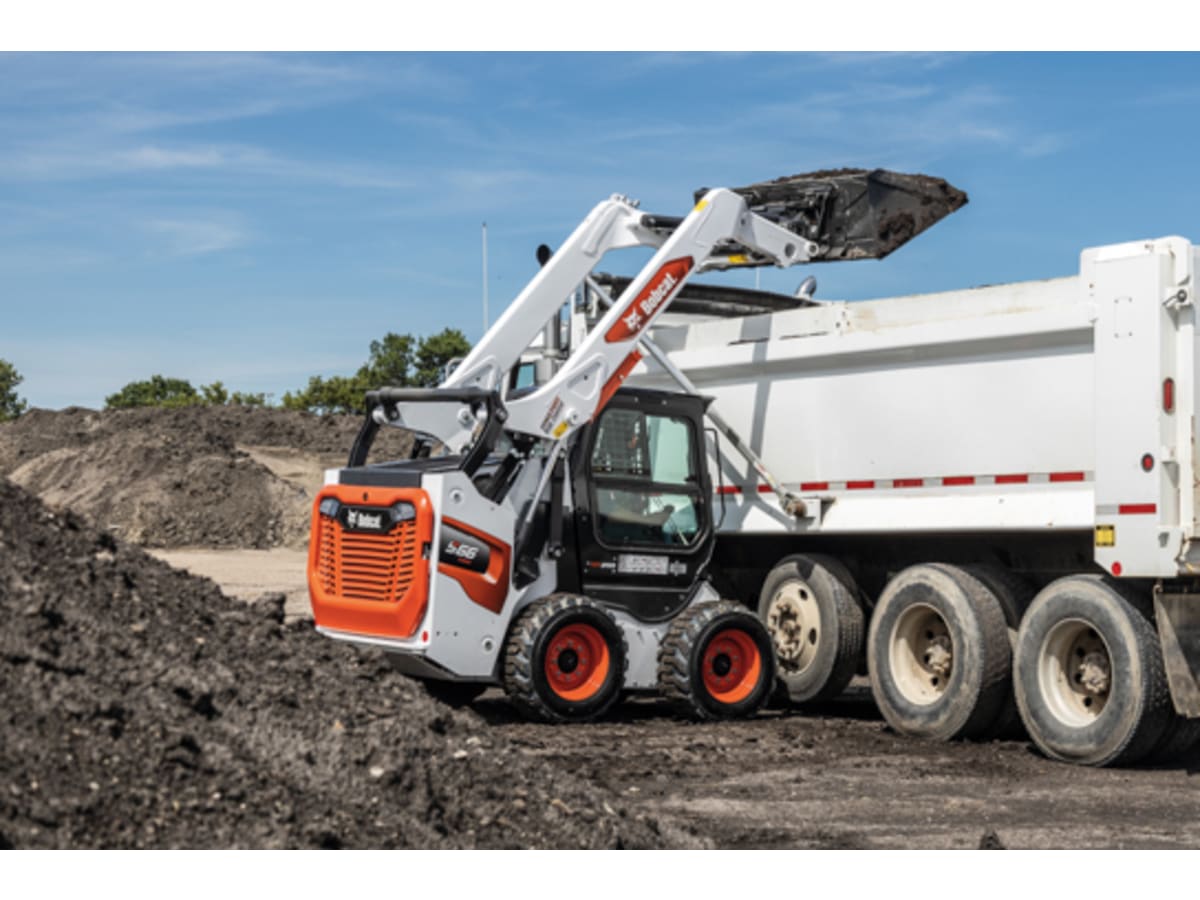

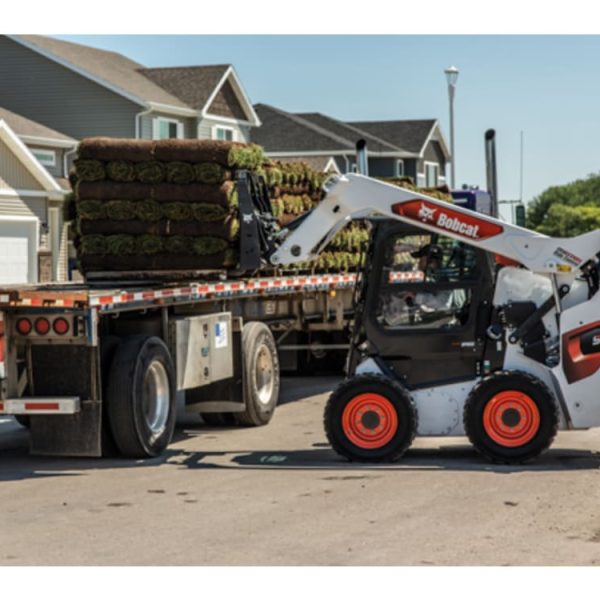

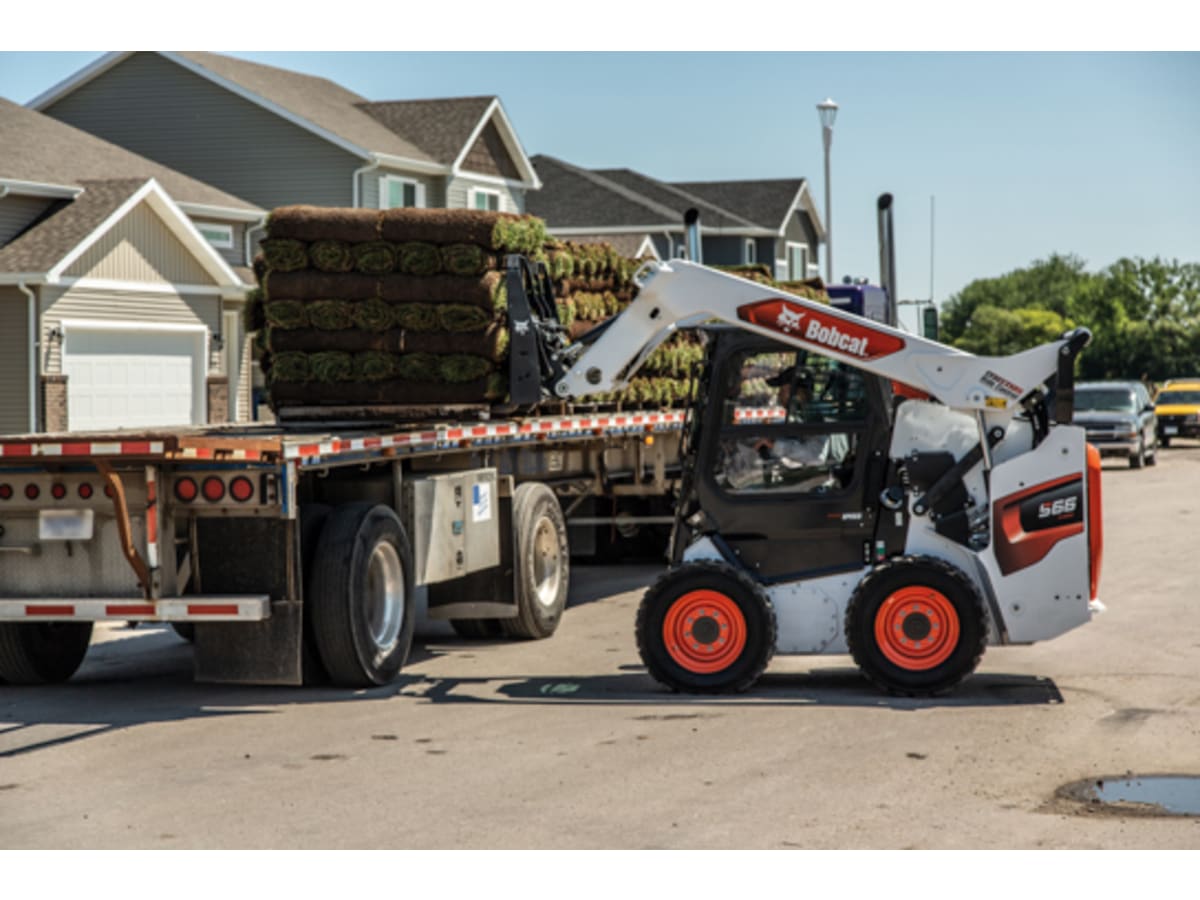

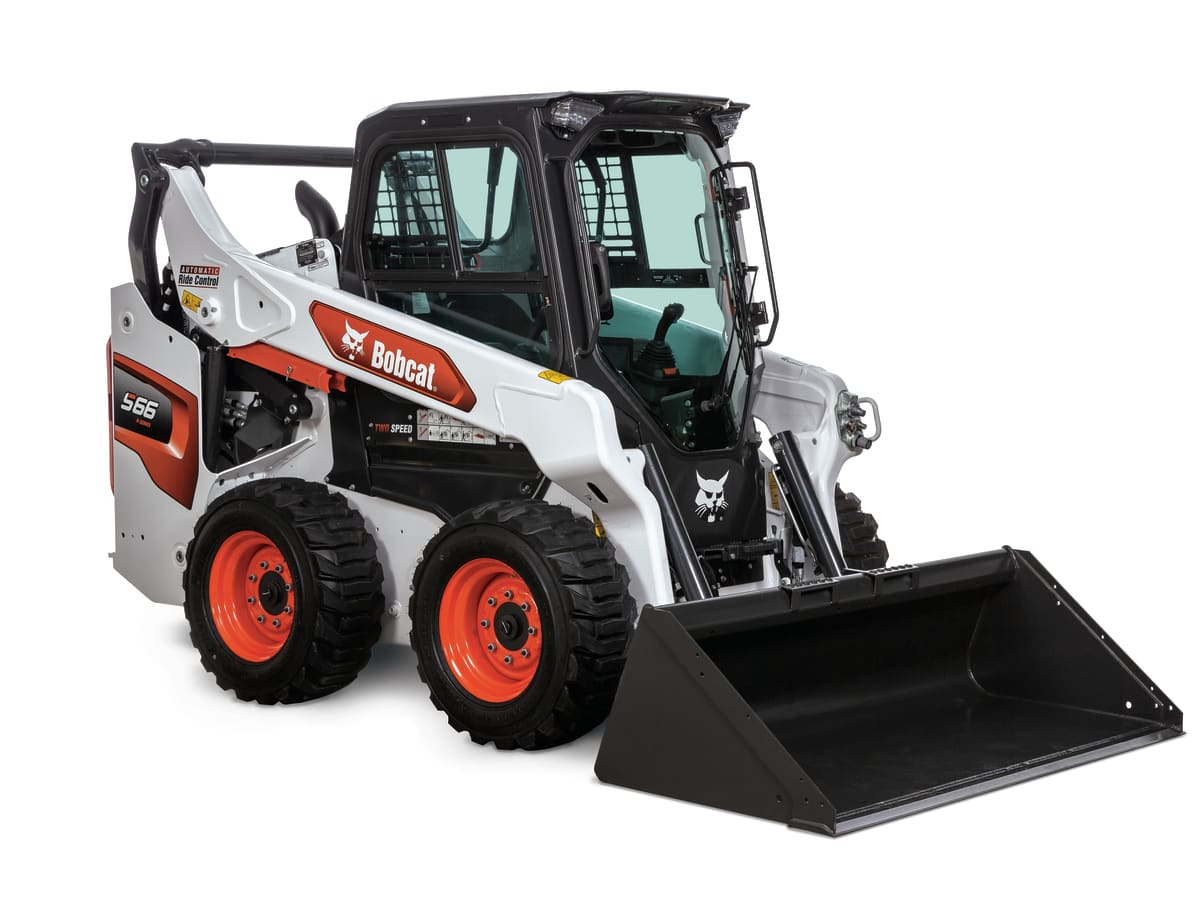

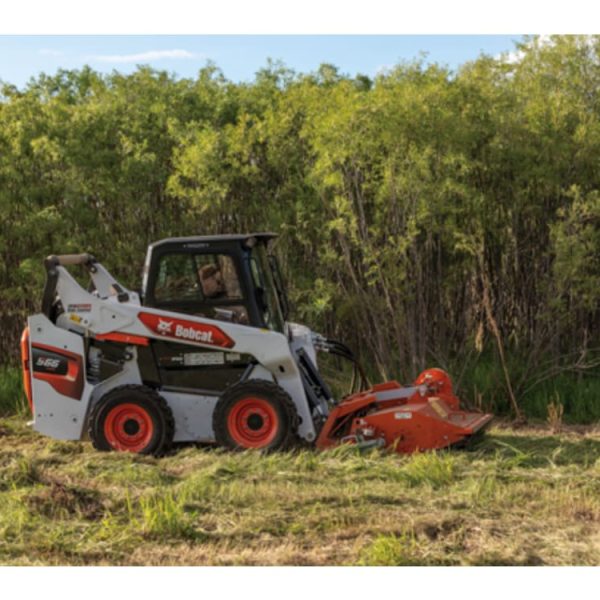

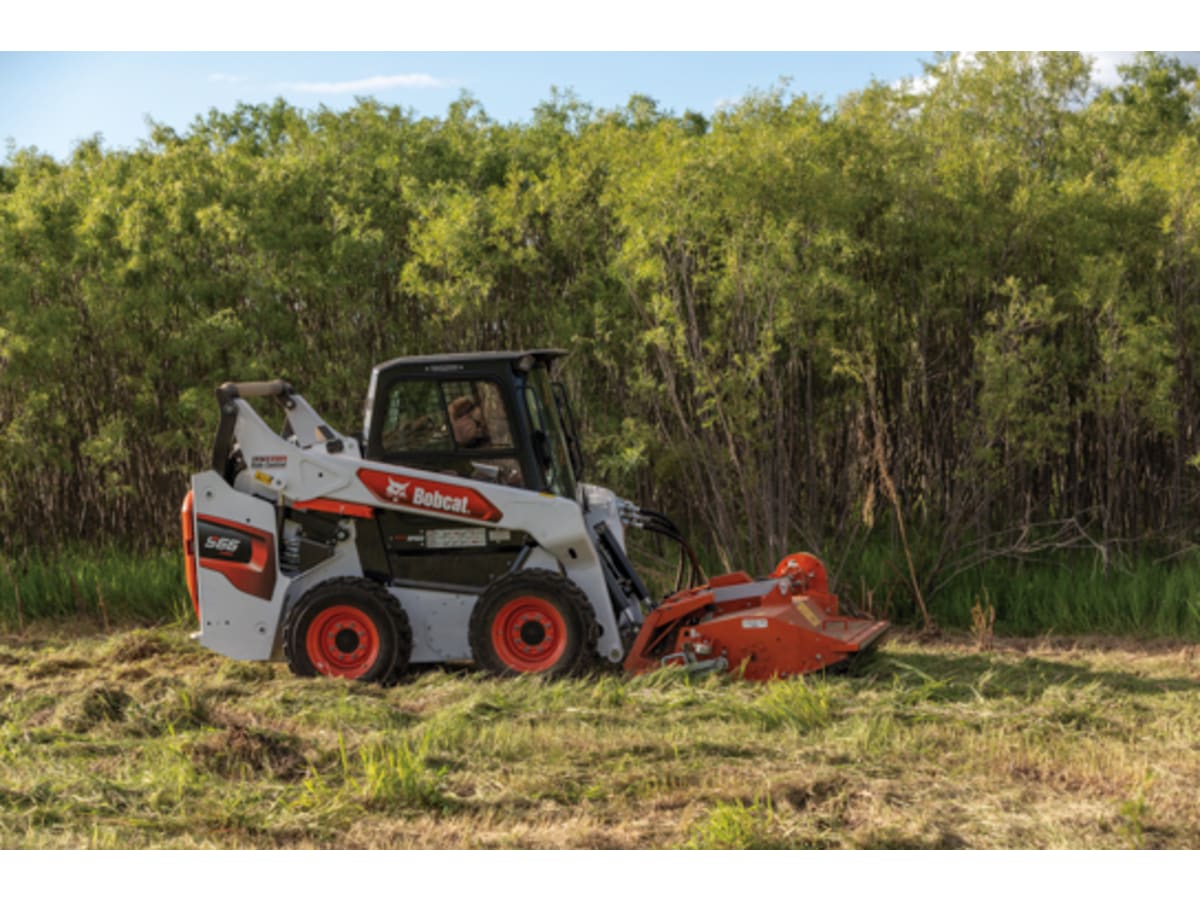

S66 Key Specifications
Horsepower
74 hp
Rated Operating Capacity (ISO)
2,400 lb
Operating Weight
7154 lb
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Joystick Control
Optional <!-->
<!-->
<!-->Engine
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
74 hp
Turbocharged Engine
yes <!-->
Horsepower Management
Included with SJC Option -->
Performance
Rated Operating Capacity (ISO)
2,400 lb
Rated Operating Capacity 200 lb. Counterweight
2,550 lb
Tipping Load
4800 lb
Operating Weight
7154 lb
Travel Speed
7.4 mph
Travel Speed (2-speed option)
11 mph
Capacities
Fuel Tank
28.3 gal
Hydraulic System
Hydraulic System Pressure (Standard and High Flow)
3,500 psi
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Dimension
Length
135 in
Length without Attachment
107 in
Length with Standard Bucket
135 in
Width
67 in
Width (with bucket)
68 in
Height
80.5 in
Height with Operator Cab
80.5 in
Height to Bucket Hinge Pin
120 in
Reach @ Maximum Height
34.2 in
Turning Radius
80.1 in
Wheelbase
44.6 in
Features
Joystick Control
Optional <!-->
Air Conditioning
Optional -->
Adjustable Seat
Standard <!-->
Backup Alarm
Standard -->
BICS System (Interlock)
Standard <!-->
Cab Enclosure
Optional -->
Sound Option
Optional <!-->
Cab Heater
Optional -->
Operating Lights
Standard <!-->
LED Front and Rear Lights
Standard -->
Standard Display (includes keyless start)
Standard <!-->
Speed Management
Included with SJC Option -->
Parking Brake
Wedge Brake System <!-->
Radio
Optional -->
Rear Window
Standard <!-->
Top Window
Standard -->
Lift-Arm Support
Standard <!-->
Seat Belt
Standard -->
Suspension Seat
Standard <!-->
Heated Cloth Air-Ride Seat
Optional -->
Two Speed Travel
Standard <!-->
Deluxe Instrumentation
Not Applicable -->
Engine Shutdown
Standard <!-->
Hydraulic Bucket Positioning
Not Applicable -->
Dual-Direction Bucket Positioning
Optional <!-->
High Flow Option
Optional -->
Auxiliary Hydraulics
Standard <!-->
Spark Arrestor Muffler
DOC -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Not Applicable <!-->
Ride Control
Optional -->
Radio Remote Control (SJC Required)
Optional <!-->
Reversing Fan
Optional -->
Rear Hydraulics
Optional <!-->
Horn
Standard -->
