Specs
ZT6000e Key Specifications
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Battery Type
Lithium Ion
Lithium Ion
System Voltage
58 V
58 V
Gross Battery Capacity
20.4 kW·h
20.4 kW·h
Estimated Run Time
4-8 hours (Mowable Acres: 16.4 - 20.5 for 52.5" Deck & Mowable Acres: 19.0 - 23.8 for 61" Deck) * **
4-8 hours (Mowable Acres: 16.4 - 20.5 for 52.5" Deck & Mowable Acres: 19.0 - 23.8 for 61" Deck) * **
On-Board Charge Time - 120 V
12.6 hrs
12.6 hrs
On-Board Charge Time - 240 V
6.3 hrs
6.3 hrs
Mower Deck
AirFX Cutting System
AirFX Cutting System
Deck Material
10-gauge layer top with 3-gauge and 7-gauge brackets throughout
10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Baffle System
Replaceable, Air Gap
Replaceable, Air Gap
Leading Edge
Adjustable, Front Lip Standard
Adjustable, Front Lip Standard
Cutting Width
52.5 in
61 in
Blade Tip Speed - High
18,500 ft/min
18,500 ft/min
Blade Tip Speed - Low
17,000 ft/min
17,000 ft/min
Weight
1446 lb
1459 lb
Length
82.3 in
83.2 in
Width (Chute Up)
56 in
64.6 in
Width (Chute Down)
67.9 in
76.6 in
Height (ROPS Up)
75.4 in
75.4 in
Height (ROPS Folded)
49.8 in
49.8 in
Seat
High Back, Full Mechanical Suspension Seat
High Back, Full Mechanical Suspension Seat
Seat Adjustment
Seat Slide Lever
Seat Slide Lever
Fold Down ROPS
Standard
Standard
Operator Touch Screen Display
4.3" touchscreen display
4.3" touchscreen display
Drive Wheel Size
24 x 10.5-12
24 x 10.5-12
Front Caster Wheel Size
15 x 6-6
15 x 6-6
Caster Tire Type
Pneumatic
Pneumatic
Forward Speed - High
10.9 mph
10.9 mph
Forward Speed - Medium
9 mph
9 mph
Forward Speed - Low
7 mph
7 mph
Reverse Speed - High
4.1 mph
4.1 mph
Reverse Speed - Medium
3.4 mph
3.4 mph
Reverse Speed - Low
3.1 mph
3.1 mph
Electrical System
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Battery Type
Lithium Ion
Lithium Ion
System Voltage
58 V
58 V
Gross Battery Capacity
20.4 kW·h
20.4 kW·h
Estimated Run Time
4-8 hours (Mowable Acres: 16.4 - 20.5 for 52.5" Deck & Mowable Acres: 19.0 - 23.8 for 61" Deck) * **
4-8 hours (Mowable Acres: 16.4 - 20.5 for 52.5" Deck & Mowable Acres: 19.0 - 23.8 for 61" Deck) * **
On-Board Charge Time - 120 V
12.6 hrs
12.6 hrs
On-Board Charge Time - 240 V
6.3 hrs
6.3 hrs
Deck
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Mower Deck
AirFX Cutting System
AirFX Cutting System
Deck Material
10-gauge layer top with 3-gauge and 7-gauge brackets throughout
10-gauge layer top with 3-gauge and 7-gauge brackets throughout
Baffle System
Replaceable, Air Gap
Replaceable, Air Gap
Leading Edge
Adjustable, Front Lip Standard
Adjustable, Front Lip Standard
Cutting Width
52.5 in
61 in
Blade Tip Speed - High
18,500 ft/min
18,500 ft/min
Blade Tip Speed - Low
17,000 ft/min
17,000 ft/min

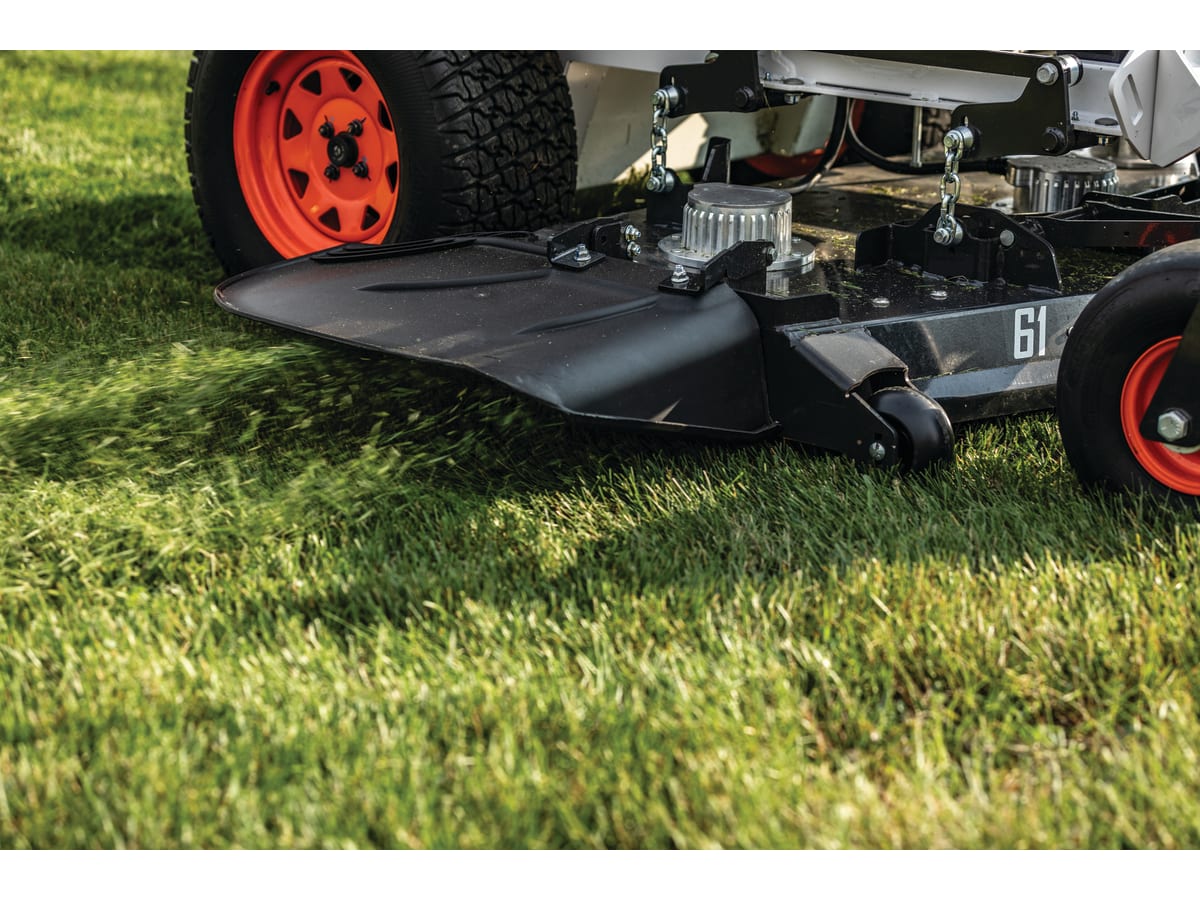

Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Engine
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Dimension
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Weight
1446 lb
1459 lb
Length
82.3 in
83.2 in
Width (Chute Up)
56 in
64.6 in
Width (Chute Down)
67.9 in
76.6 in
Height (ROPS Up)
75.4 in
75.4 in
Height (ROPS Folded)
49.8 in
49.8 in
Front and Rear
1.5- x 2.5-inch Steel Tubing; Welded Steel Reinforced Frame
1.5- x 2.5-inch Steel Tubing; Welded Steel Reinforced Frame
Features
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Seat
High Back, Full Mechanical Suspension Seat
High Back, Full Mechanical Suspension Seat
Seat Adjustment
Seat Slide Lever
Seat Slide Lever
Fold Down ROPS
Standard
Standard
Operator Touch Screen Display
4.3" touchscreen display
4.3" touchscreen display
Wheels
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Drive Wheel Size
24 x 10.5-12
24 x 10.5-12
Front Caster Wheel Size
15 x 6-6
15 x 6-6
Caster Tire Type
Pneumatic
Pneumatic
Power System
ZT6000e - 52" Deck
ZT6000e - 61" Deck
Drive Description
HD Planetary Gearbox w/ integrated parking brake
HD Planetary Gearbox w/ integrated parking brake
Forward Speed - High
10.9 mph
10.9 mph
Forward Speed - Medium
9 mph
9 mph
Forward Speed - Low
7 mph
7 mph
Reverse Speed - High
4.1 mph
4.1 mph
Reverse Speed - Medium
3.4 mph
3.4 mph
Reverse Speed - Low
3.1 mph
3.1 mph
