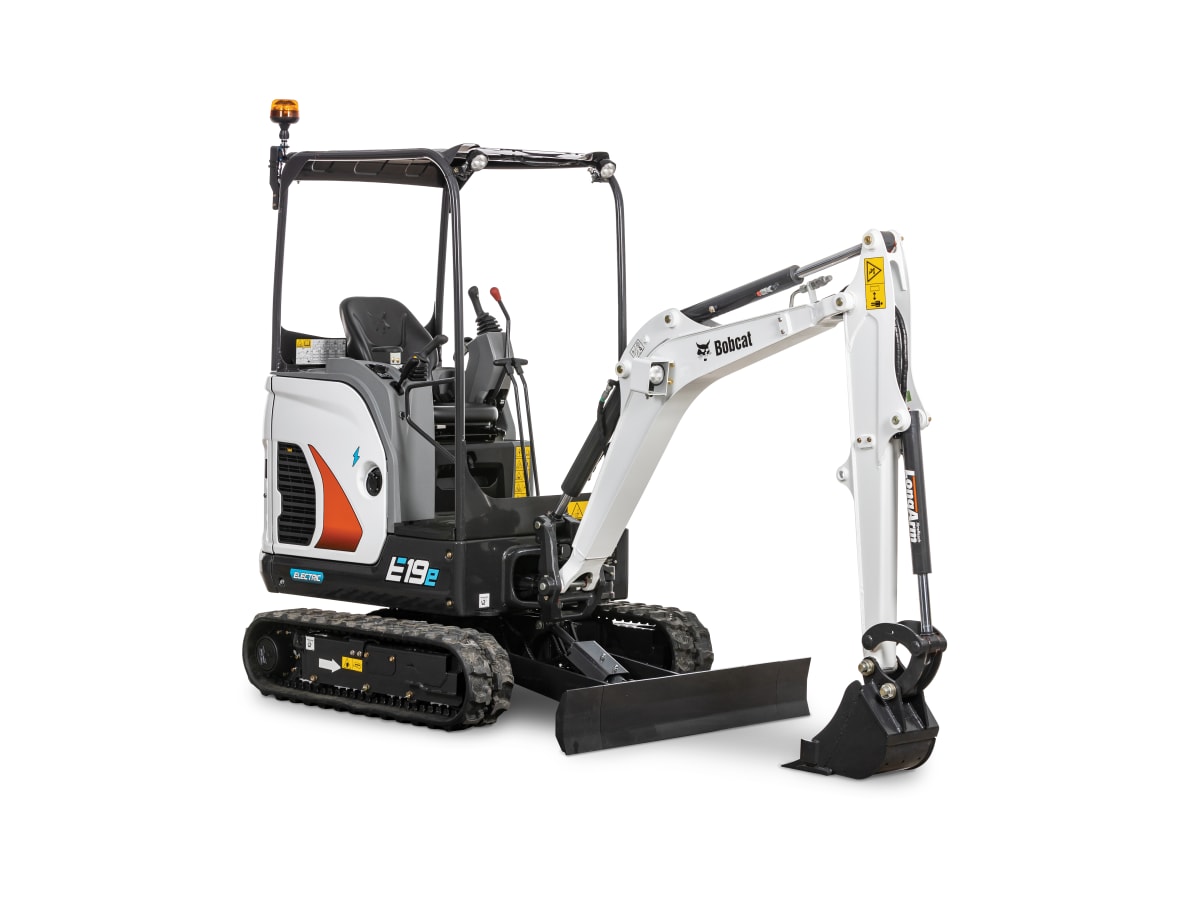

Bob Cat E19e Battery-Electric Compact Excavator

Contact us for price

Stock status: Call Store for Availability

Featuring state-of-the-art lithium-ion battery technology, the conventional tail-swing E19e provides the same power as its diesel-powered equivalents, with near-instantaneous torque.

Pay as low as 0% for up to 48 months* or choose a $4,500 USD*/$5,900 CAD* rebate on a Bobcat E19e compact excavator.

Call Us Now

Specs

E19e Key Specifications

Battery Type
Lithium Ion -->
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Maximum Dig Depth
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Width
38.6 in
<!-->


Battery Type
Lithium Ion -->
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Interior Sound Level According to ISO 6396
71 dB
External Sound Level According to ISO 6395
81 dB
Estimated Run Time
4 h <!-->
On-Board Charge Time - 120V
10-12 h -->
On-Board Charge Time - 240V
10-12 h <!-->
Off-Board Charge Time
2 h -->
Travel Speed - High
2.3 mph
Travel Speed - Low
1.1 mph
Arm Digging Force
2,086 lbf
Bucket Digging Force
4,684 lbf
Rated Lift Capacity
1028 lb
Lift Radius
118 in
Boom Swing - Left
80° <!-->
Boom Swing - Right
60° -->
Maximum Dig Depth
101 in
Max Dump Height
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Weight Class
2 t <!-->
Auxiliary Std Flow
6.4 gal/min
Auxiliary Pressure
2,610 psi
Length
150.1 in
Overall Length in Travel Position
150.1 in
Width
38.6 in
Height
90.5 in
Height with Operator Cab
90.5 in
Air Conditioning
Not Applicable  -->
Cab Enclosure
Not Applicable  <!-->
Cab Heater
Not Applicable  -->
Heater Air Conditioning
Not Applicable  <!-->
Radio
Not Applicable  -->
Tail Swing Type
Conventional <!-->
Auxiliary Hydraulics
Standard -->
Secondary Auxiliary Hydraulics
Standard <!-->
Quick Tach System
Not Applicable  -->
Rubber Track
Standard <!-->
Selectable Auxiliary Hydraulic Flow
Not Applicable  -->
Angle Blade
Not Applicable  <!-->
On-Board Charger
Standard -->
Off-Board Charger
Optional <!-->
J1772 Charge Cable with NEMA 14-50 Plug
Not Applicable  -->
NEMA 5-15 Charge Cable
Not Applicable  <!-->
NEMA 14-50 Charge Cable
Not Applicable  -->
<!-->


E19e Key Specifications

-->
Battery Type
Lithium Ion -->
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Maximum Dig Depth
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Width
38.6 in
<!-->


Electrical System

-->
Battery Type
Lithium Ion -->
System Voltage
51.8 V
Gross Battery Capacity
17.28 kW·h
Interior Sound Level According to ISO 6396
71 dB
External Sound Level According to ISO 6395
81 dB
Estimated Run Time
4 h <!-->
On-Board Charge Time - 120V
10-12 h -->
On-Board Charge Time - 240V
10-12 h <!-->
Off-Board Charge Time
2 h -->

Engine

<!-->

Performance

<!-->
Travel Speed - High
2.3 mph
Travel Speed - Low
1.1 mph
Arm Digging Force
2,086 lbf
Bucket Digging Force
4,684 lbf
Rated Lift Capacity
1028 lb
Lift Radius
118 in
Boom Swing - Left
80° <!-->
Boom Swing - Right
60° -->
Maximum Dig Depth
101 in
Max Dump Height
101 in
Maximum Reach at Ground Level
165.9 in
Operating Weight
4,212 lb
Weight Class
2 t <!-->

Hydraulic System

-->
Auxiliary Std Flow
6.4 gal/min
Auxiliary Pressure
2,610 psi

Dimension

-->
Length
150.1 in
Overall Length in Travel Position
150.1 in
Width
38.6 in
Height
90.5 in
Height with Operator Cab
90.5 in

Features

-->
Air Conditioning
Not Applicable  -->
Cab Enclosure
Not Applicable  <!-->
Cab Heater
Not Applicable  -->
Heater Air Conditioning
Not Applicable  <!-->
Radio
Not Applicable  -->
Tail Swing Type
Conventional <!-->
Auxiliary Hydraulics
Standard -->
Secondary Auxiliary Hydraulics
Standard <!-->
Quick Tach System
Not Applicable  -->
Rubber Track
Standard <!-->
Selectable Auxiliary Hydraulic Flow
Not Applicable  -->
Angle Blade
Not Applicable  <!-->
On-Board Charger
Standard -->
Off-Board Charger
Optional <!-->
J1772 Charge Cable with NEMA 14-50 Plug
Not Applicable  -->
NEMA 5-15 Charge Cable
Not Applicable  <!-->
NEMA 14-50 Charge Cable
Not Applicable  -->
<!-->
-->
