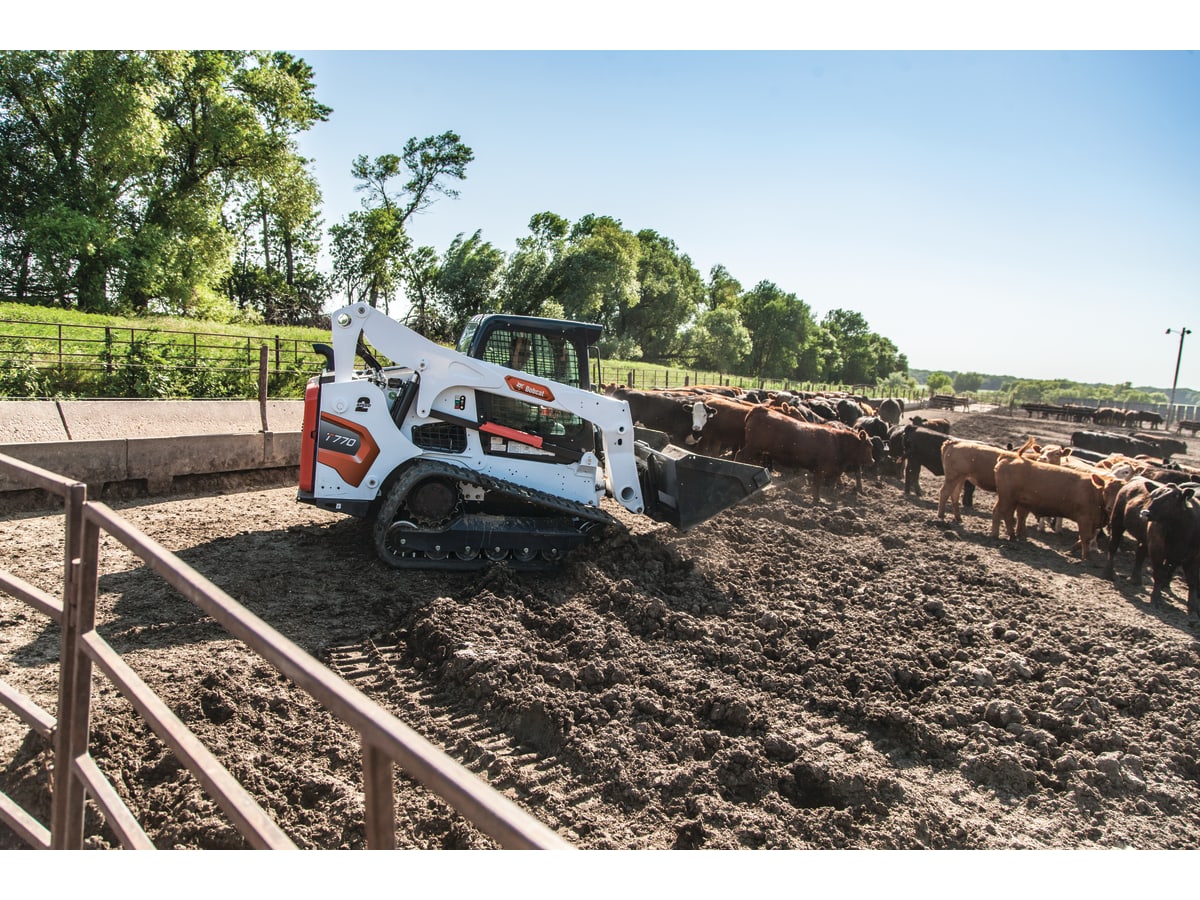

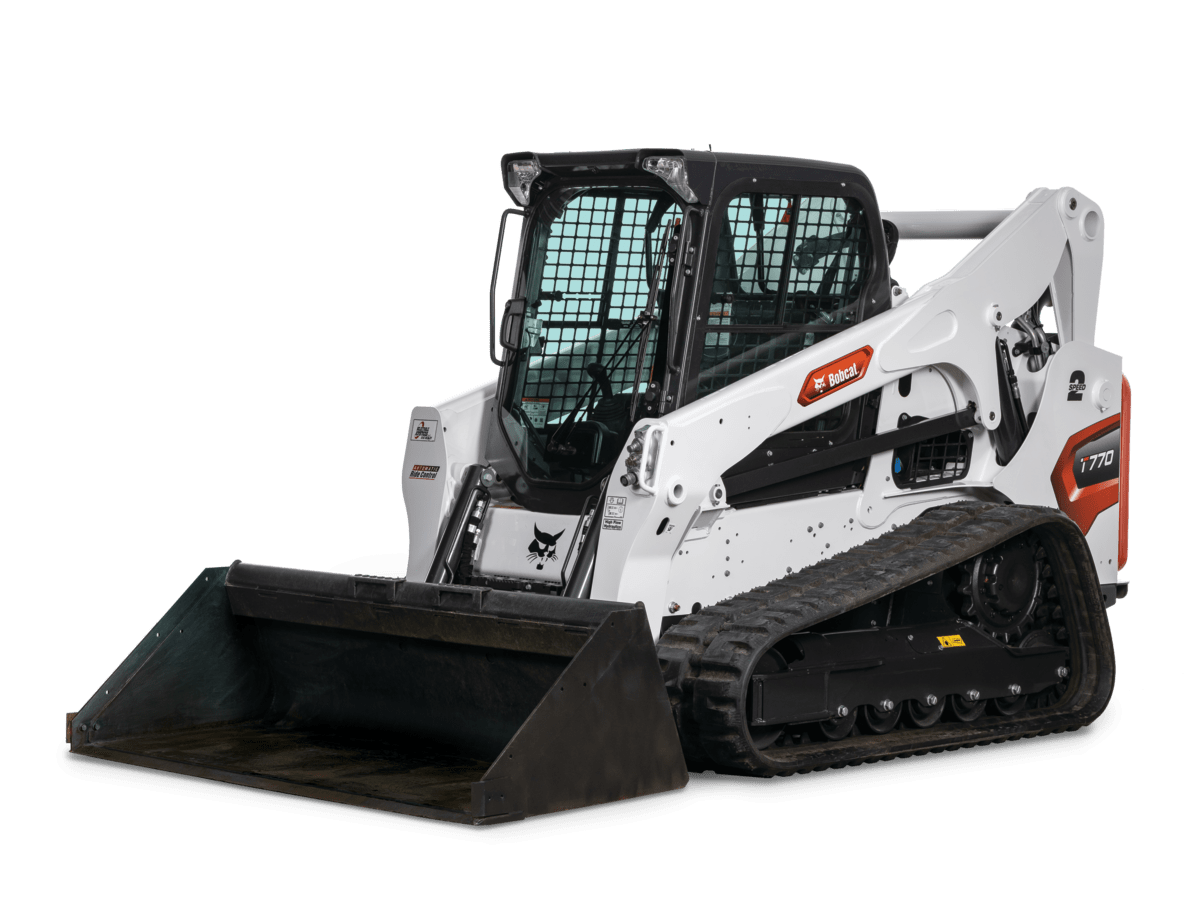

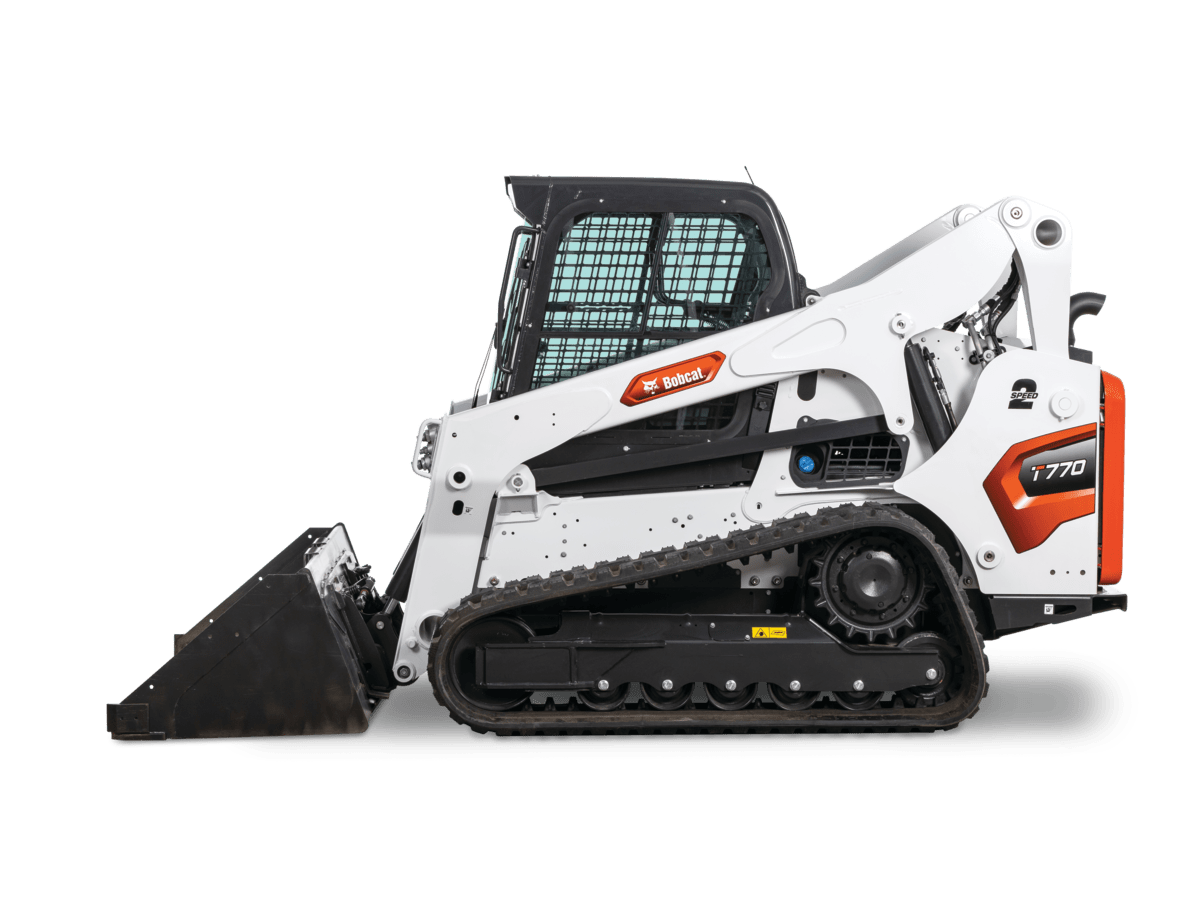

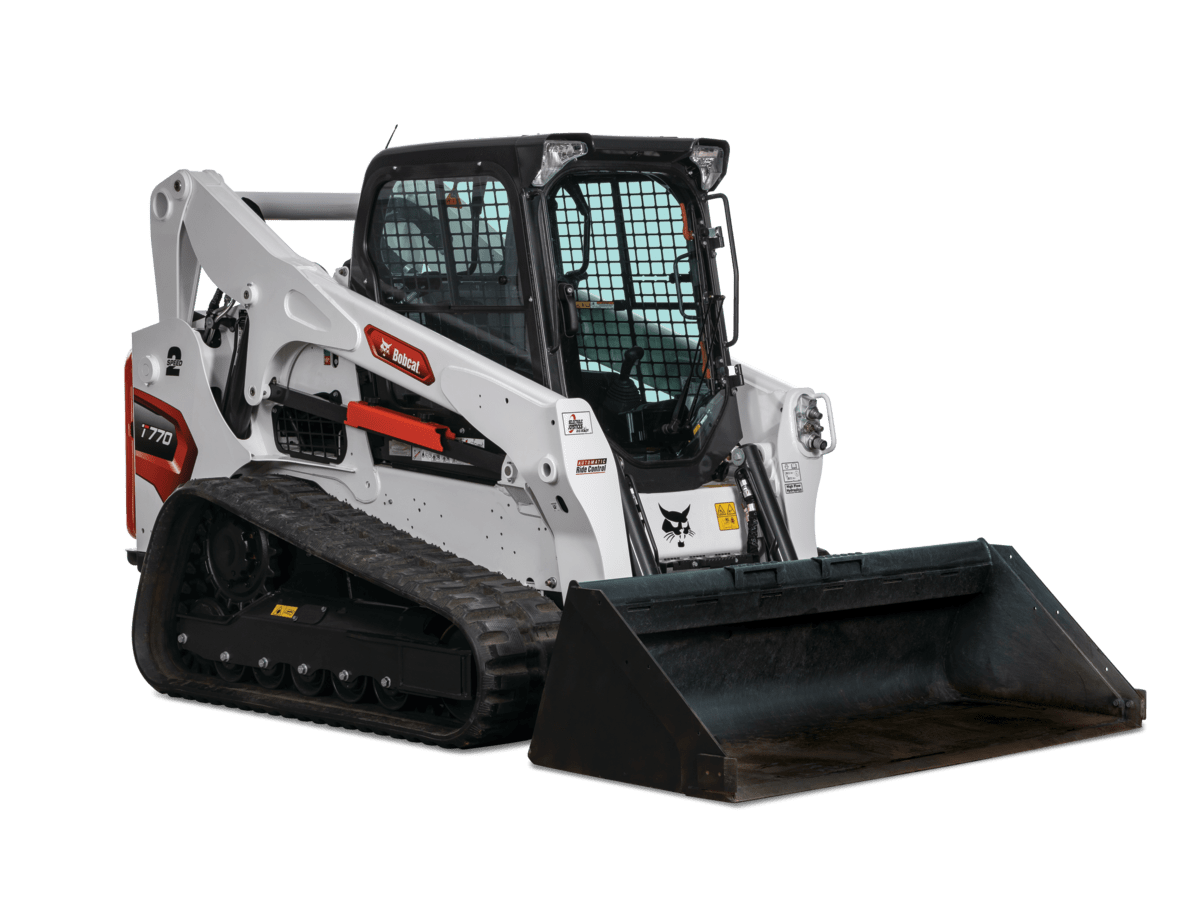

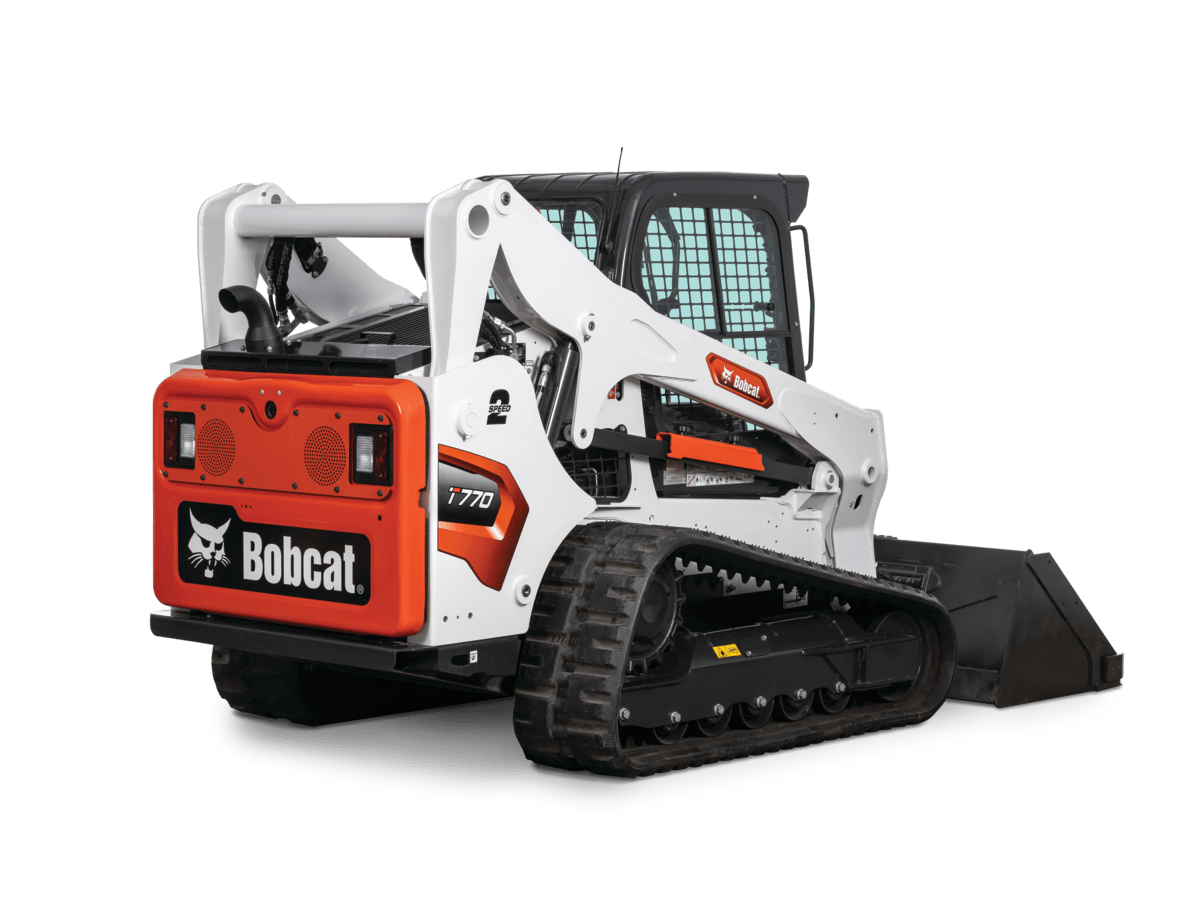

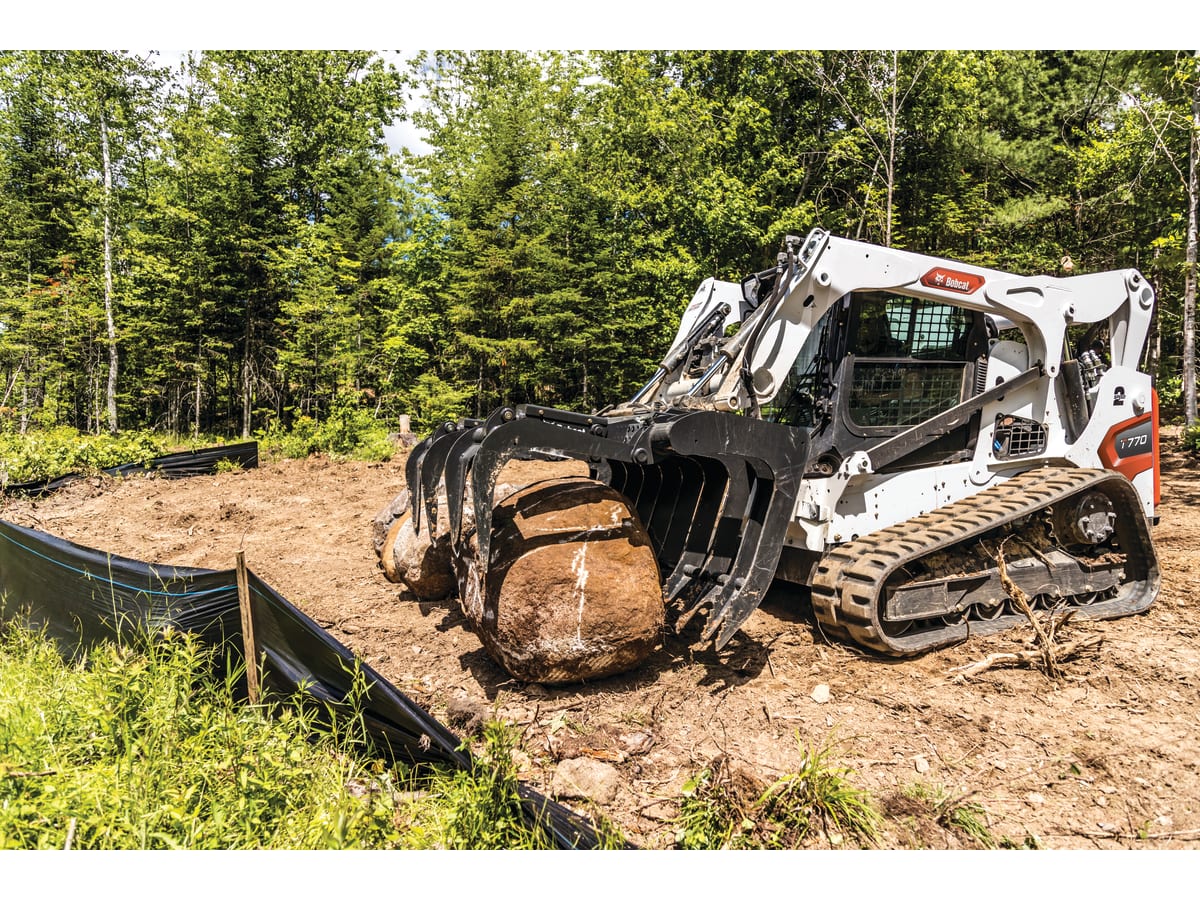

Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader
Bob Cat T770 Compact Track Loader

Bob Cat T770 Compact Track Loader

Contact us for price

Stock status: Call Store for Availability

Experience legendary performance with the T770, a top-selling compact track loader. Engineered to protect your uptime, this versatile machine delivers the performance you need to make light work of big projects, with an impressive rated operating capacity, powerful breakout forces and fast cycle times.

Pay as low as 0% for up to 48 months* PLUS receive a $5,000 USD*/$6,500 CAD* rebate or choose a $10,000 USD**/$13,500 CAD** cash rebate in lieu of financing on Bobcat T770 compact track loaders.

Call Us Now

Specs

T770 Key Specifications

T770 <!-->
Rated Operating Capacity (ISO)
3,475 lb
Operating Weight
10515 lb
Ground Pressure (Rubber)
4.2 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Optional -->
<!-->


T770 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
92 hp
Turbocharged Engine
yes <!-->
T770 <!-->
Rated Operating Capacity (ISO)
3,475 lb
Operating Capacity (50% of Tip)
4960 lb
Tipping Load
9929 lb
Operating Weight
10515 lb
Travel Speed
6.6 mph
Travel Speed (2-speed option)
10.7 mph
Ground Pressure (Rubber)
4.2 psi
T770 <!-->
Fuel Tank
43.8 gal
T770 <!-->
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
T770 <!-->
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
78 in
Width (with bucket)
80 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Reach @ Maximum Height
35.2 in
Turning Radius
88 in
Length of track on ground
63.7 in
Track Width
17.7 in
T770 <!-->
Joystick Control
Optional -->
Air Conditioning
Optional <!-->
Backup Alarm
Standard -->
BICS System (Interlock)
Standard <!-->
Cab Heater
Optional -->
Operating Lights
Standard <!-->
Suspension Seat
Standard -->
Two Speed Travel
Optional <!-->
Deluxe Instrumentation
Optional -->
Engine Shutdown
Standard <!-->
Hydraulic Bucket Positioning
Optional -->
High Flow Option
Optional <!-->
Auxiliary Hydraulics
Standard -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Optional <!-->
Ride Control
Optional -->
Horn
Standard <!-->
Cab Enclosure
Optional -->
Adjustable Seat
Standard <!-->
Sound Option
Optional -->
Rear Window
Standard <!-->
Top Window
Standard -->
Seat Belt
Standard <!-->
Spark Arrestor Muffler
Standard -->
<!-->


T770 Key Specifications

-->
T770 <!-->
Rated Operating Capacity (ISO)
3,475 lb
Operating Weight
10515 lb
Ground Pressure (Rubber)
4.2 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min
Joystick Control
Optional -->
<!-->


Engine

-->
T770 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
92 hp
Turbocharged Engine
yes <!-->

Performance

-->
T770 <!-->
Rated Operating Capacity (ISO)
3,475 lb
Operating Capacity (50% of Tip)
4960 lb
Tipping Load
9929 lb
Operating Weight
10515 lb
Travel Speed
6.6 mph
Travel Speed (2-speed option)
10.7 mph
Ground Pressure (Rubber)
4.2 psi

Capacities

-->
T770 <!-->
Fuel Tank
43.8 gal

Hydraulic System

-->
T770 <!-->
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23 gal/min
Auxiliary High Flow
36.6 gal/min

Dimension

-->
T770 <!-->
Length
141.6 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
78 in
Width (with bucket)
80 in
Height
81.3 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131.4 in
Reach @ Maximum Height
35.2 in
Turning Radius
88 in
Length of track on ground
63.7 in
Track Width
17.7 in

Features

-->
T770 <!-->
Joystick Control
Optional -->
Air Conditioning
Optional <!-->
Backup Alarm
Standard -->
BICS System (Interlock)
Standard <!-->
Cab Heater
Optional -->
Operating Lights
Standard <!-->
Suspension Seat
Standard -->
Two Speed Travel
Optional <!-->
Deluxe Instrumentation
Optional -->
Engine Shutdown
Standard <!-->
Hydraulic Bucket Positioning
Optional -->
High Flow Option
Optional <!-->
Auxiliary Hydraulics
Standard -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
ACS (Switchable Controls)
Optional <!-->
Ride Control
Optional -->
Horn
Standard <!-->
Cab Enclosure
Optional -->
Adjustable Seat
Standard <!-->
Sound Option
Optional -->
Rear Window
Standard <!-->
Top Window
Standard -->
Seat Belt
Standard <!-->
Spark Arrestor Muffler
Standard -->
<!-->
-->
