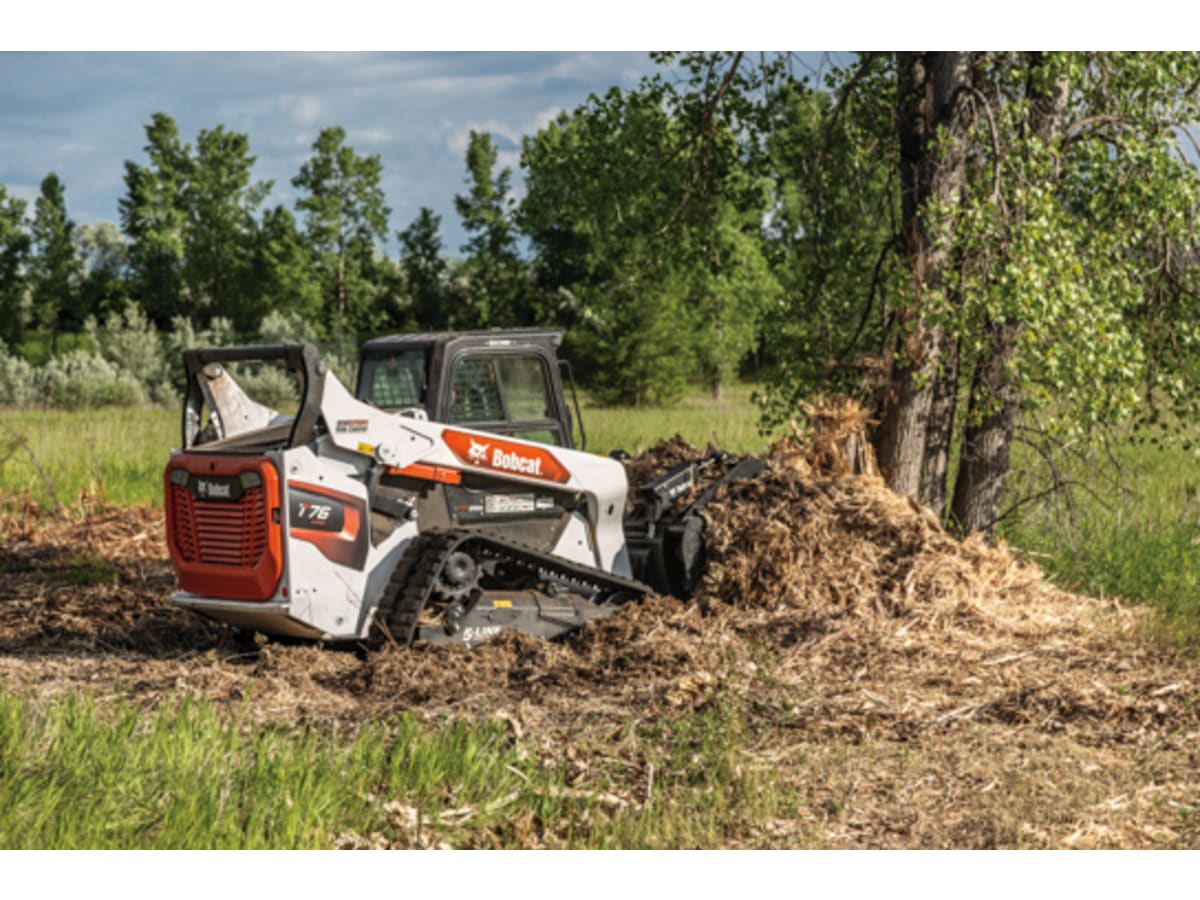

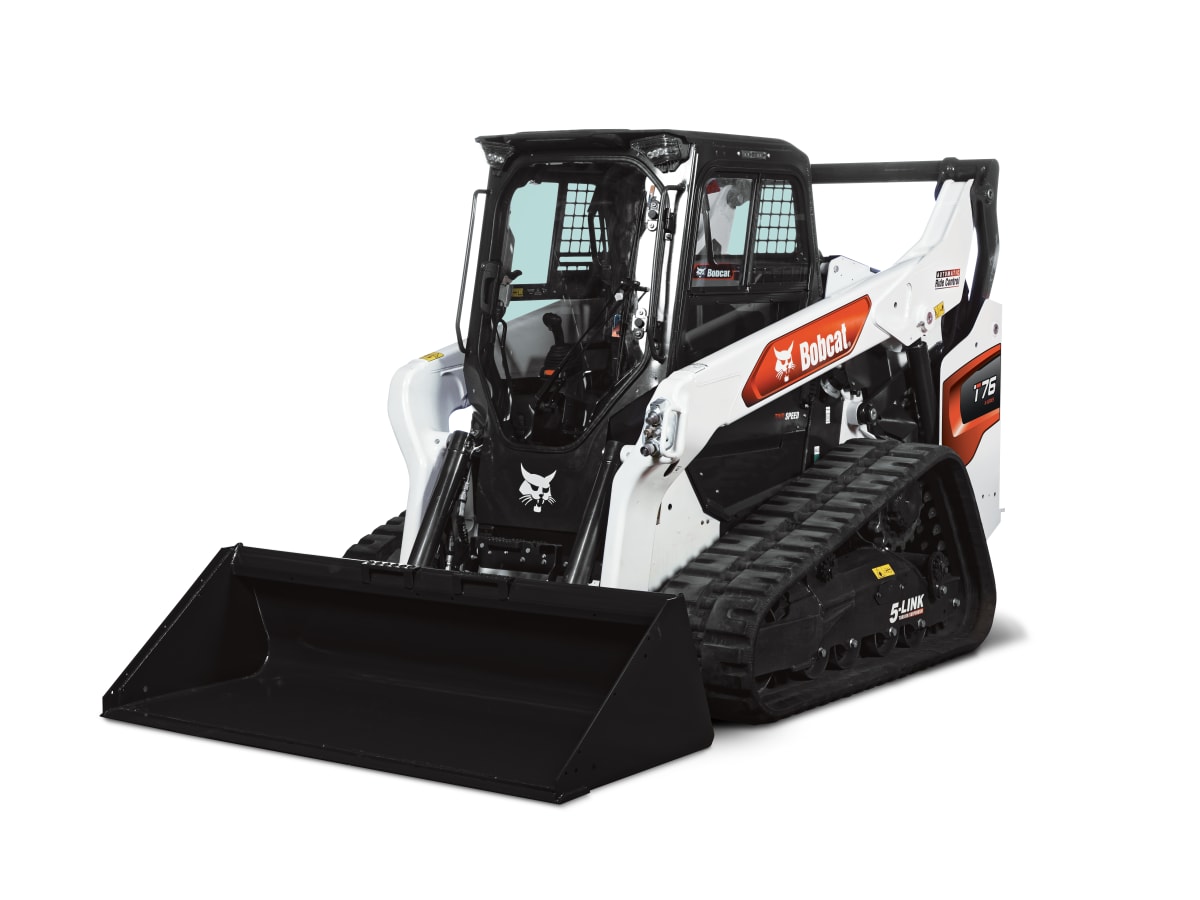

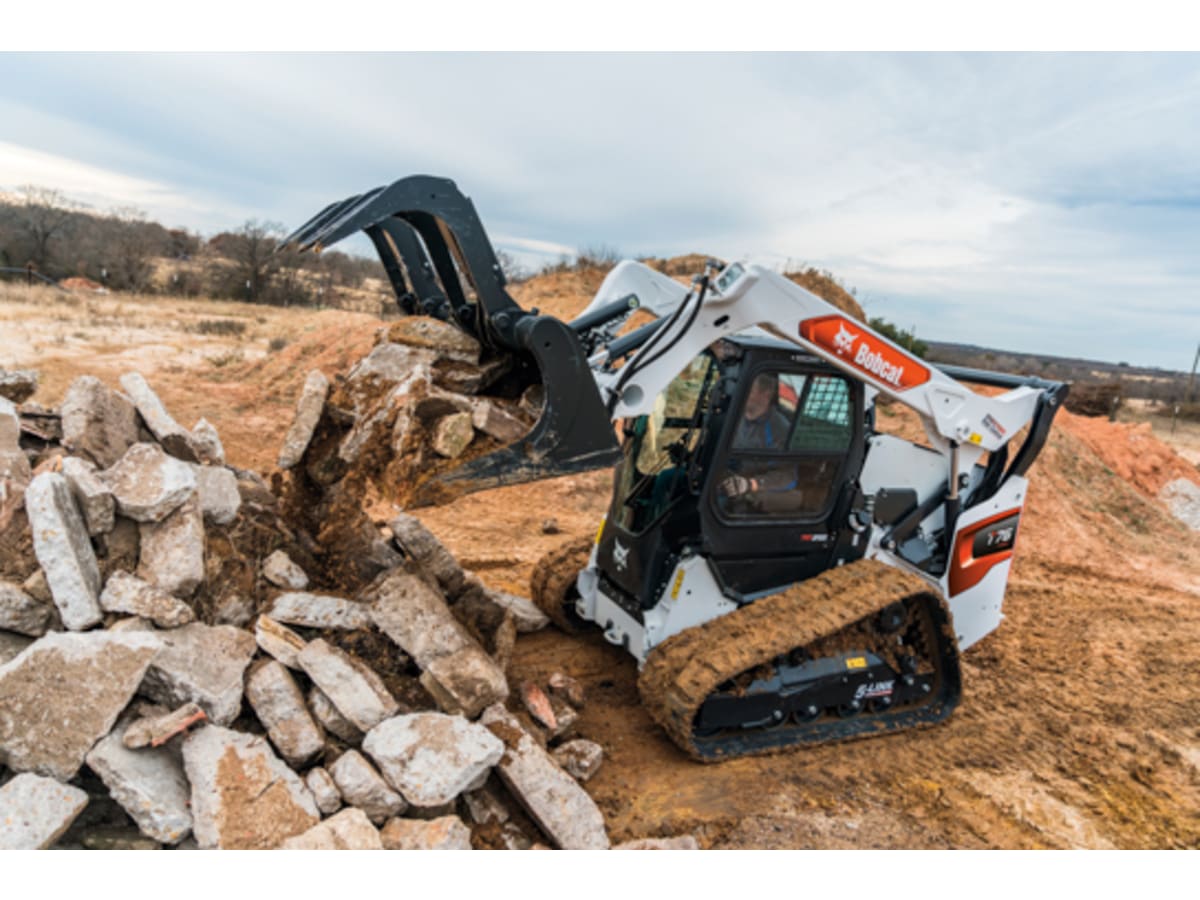

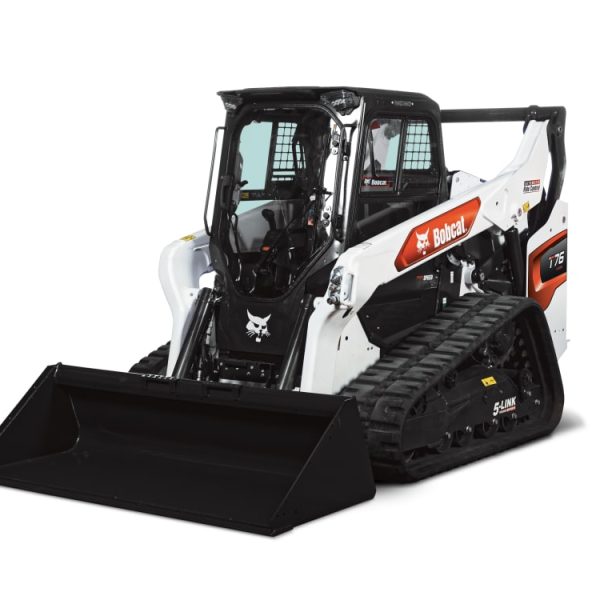

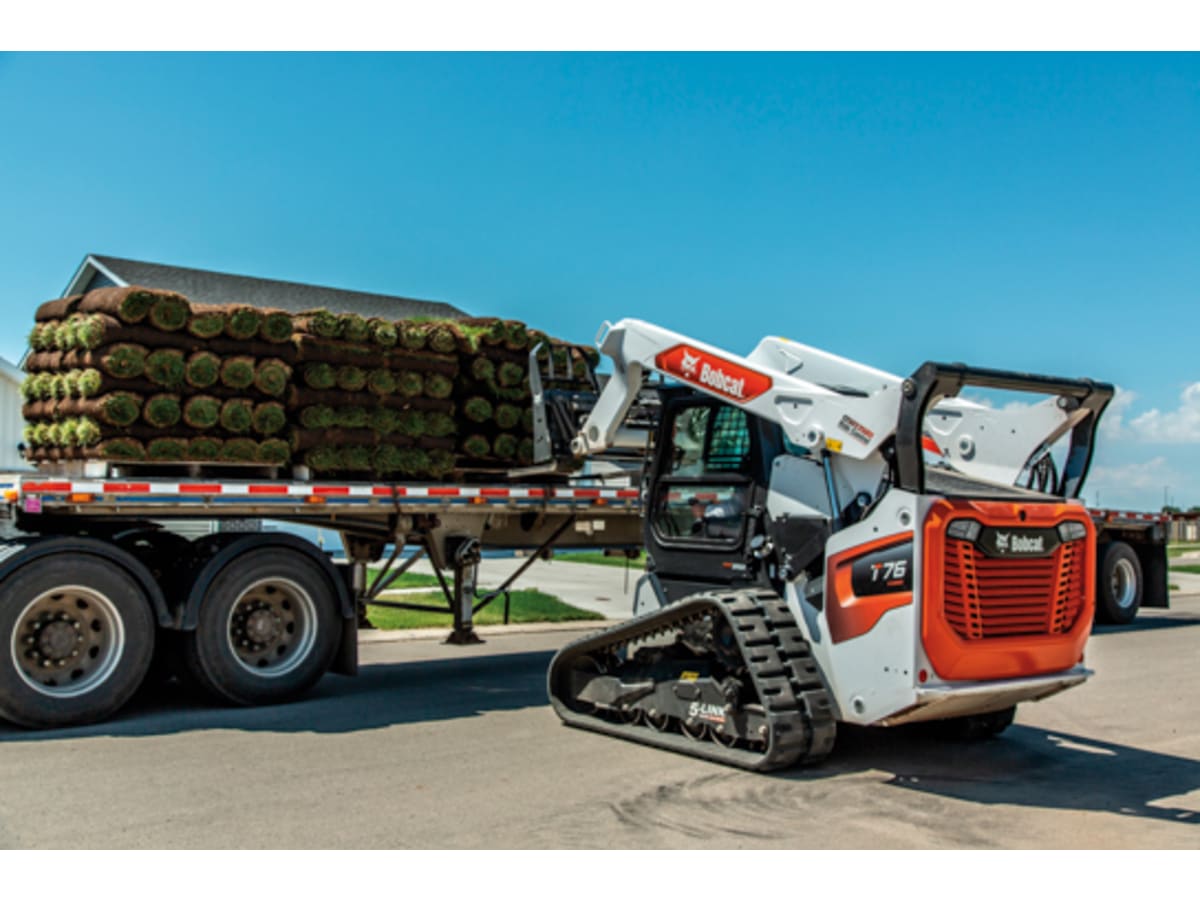

Bob Cat T76 Compact Track Loader

Contact us for price

Stock status: Call Store for Availability

The culmination of more than 60 years building compact loaders, the T76 offers the best of Bobcat features you can’t find anywhere else. You get plenty of engine and hydraulic power, an impressive lift height and powerful breakout forces – all working together to maximize your productivity.

Pay as low as 0% for up to 48 months* PLUS receive a $4,000 USD*/$5,200 CAD* rebate or choose a $8,000 USD**/$10,800 CAD** cash rebate in lieu of financing on Bobcat T76 compact track loaders.

Call Us Now

Specs

T76 Key Specifications

Rated Operating Capacity (ISO)
2,900 lb
Operating Weight
10250 lb
Ground Pressure (Rubber)
6.2 psi
Auxiliary Std Flow
23.3 gal/min
Auxiliary High Flow
30.3 gal/min
Joystick Control
Standard




T76 Key Specifications

Rated Operating Capacity (ISO)
2,900 lb
Operating Weight
10250 lb
Ground Pressure (Rubber)
6.2 psi
Auxiliary Std Flow
23.3 gal/min
Auxiliary High Flow
30.3 gal/min
Joystick Control
Standard


Engine

Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
74 hp
Turbocharged Engine
yes

Performance

Rated Operating Capacity (ISO)
2,900 lb
Operating Capacity (50% of Tip)
4143 lb
Tipping Load
8285 lb
Operating Weight
10250 lb
Travel Speed
6.8 mph
Travel Speed (2-speed option)
9.2 mph
Ground Pressure (Rubber)
6.2 psi

Capacities

Fuel Tank
31.7 gal

Hydraulic System

System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
23.3 gal/min
Auxiliary High Flow
30.3 gal/min

Dimension

Length
147.1 in
Length without Attachment
113.9 in
Length with Standard Bucket
147.1 in
Width
72.9 in
Width (with bucket)
74 in
Height
81.8 in
Height with Operator Cab
81.8 in
Height to Bucket Hinge Pin
128.3 in
Reach @ Maximum Height
39.9 in
Turning Radius
89.3 in
Length of track on ground
59.2 in
Track Width
12.6 in
Track Width - Optional
17.7 in

Features

5-Link Torsion Suspension Undercarriage
Optional
Heated Cloth Air-Ride Seat
Standard
Joystick Control
Standard
Air Conditioning
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Heater
Standard
Operating Lights
Standard
Suspension Seat
Standard
Two Speed Travel
Optional
Deluxe Instrumentation
Optional
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Standard
High Flow Option
Optional
Auxiliary Hydraulics
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
Standard
ACS (Switchable Controls)
Not Applicable
Ride Control
Optional
Horn
Standard
Cab Enclosure
Standard
Adjustable Seat
Standard
Sound Option
Standard
Rear Window
Standard
Top Window
Standard
Seat Belt
Standard 2-Point Lap Belt with Suspension Seat and Standard 3-Point Shoulder Belt with Heated Cloth Air Ride Seat on Two-Speed Models
Spark Arrestor Muffler
DOC
Lift-Arm Support
Standard
