Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator
Bob Cat E38 Compact Excavator

Bob Cat E38 Compact Excavator

Contact us for price

Stock status: Call Store for Availability

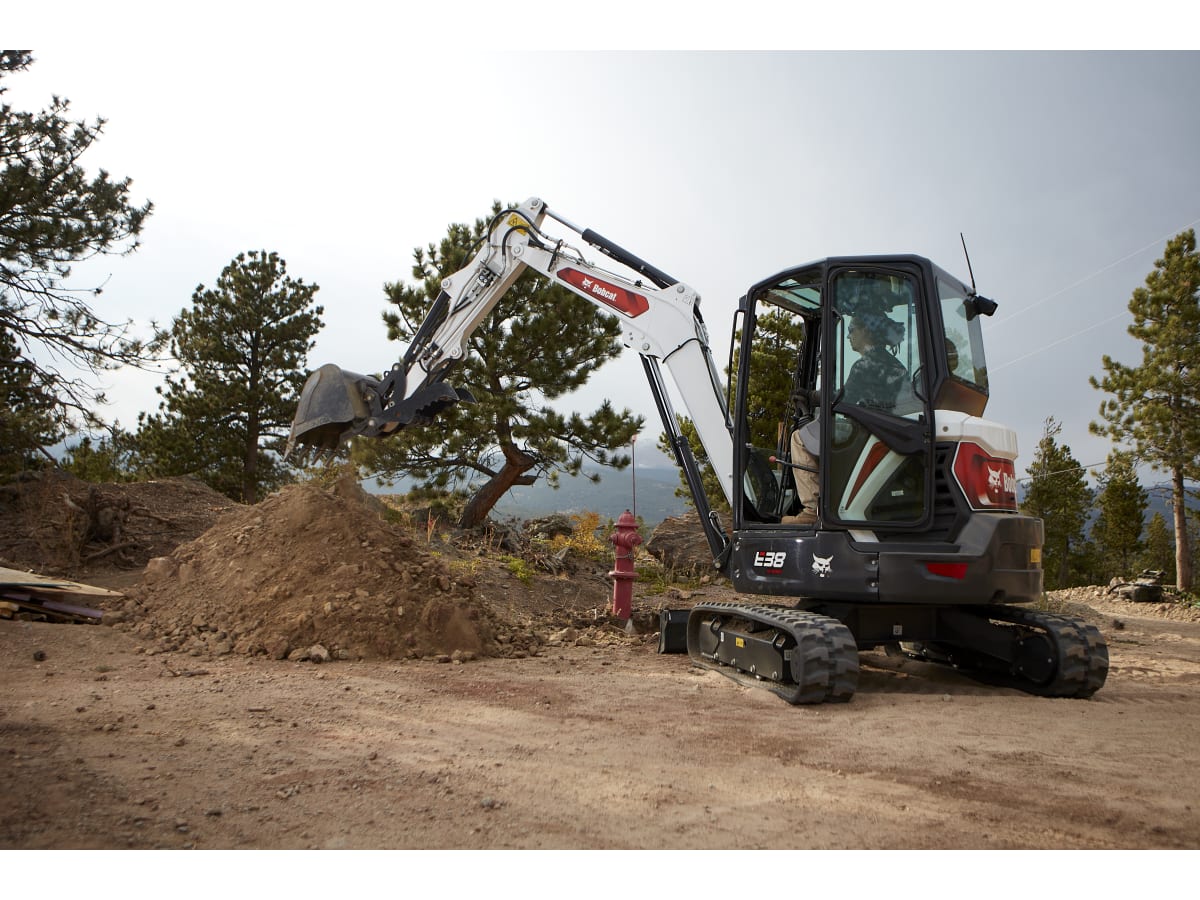

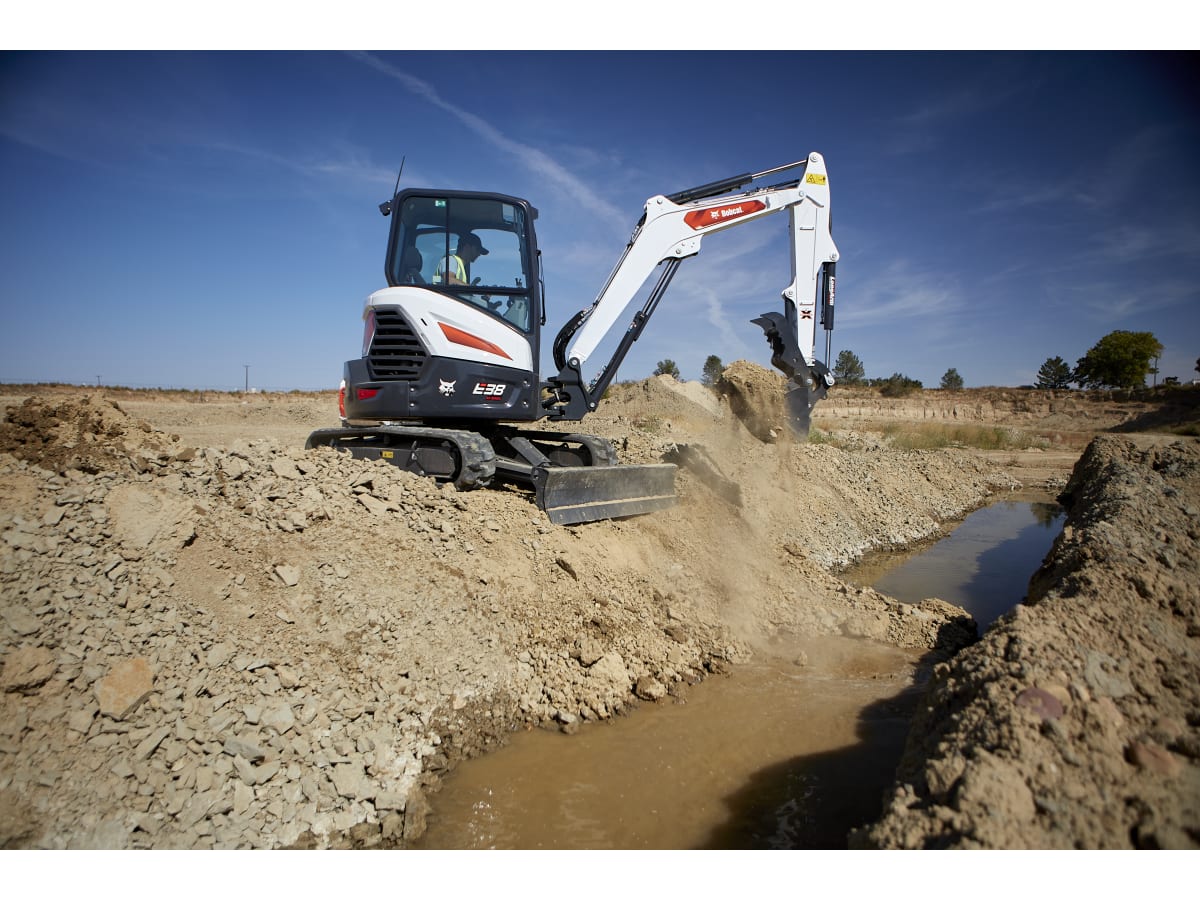

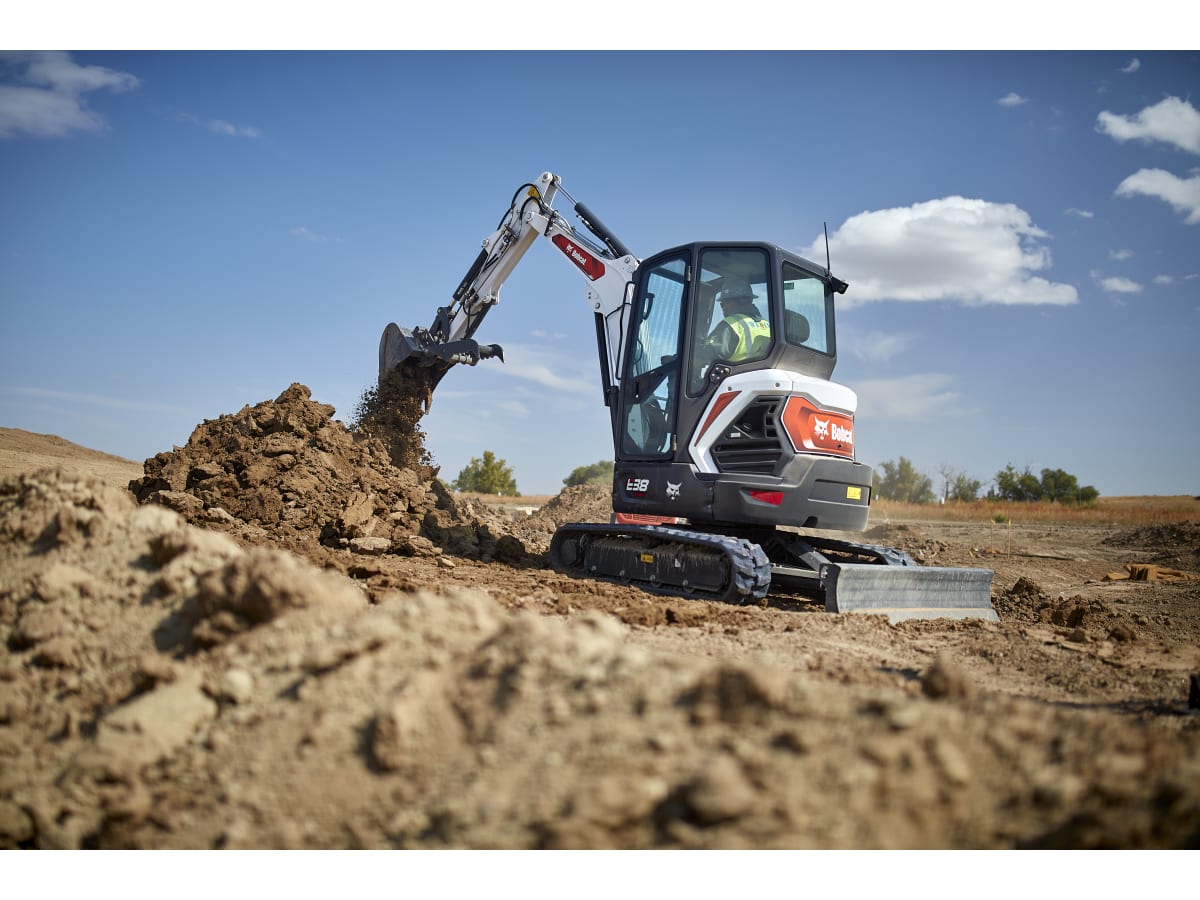

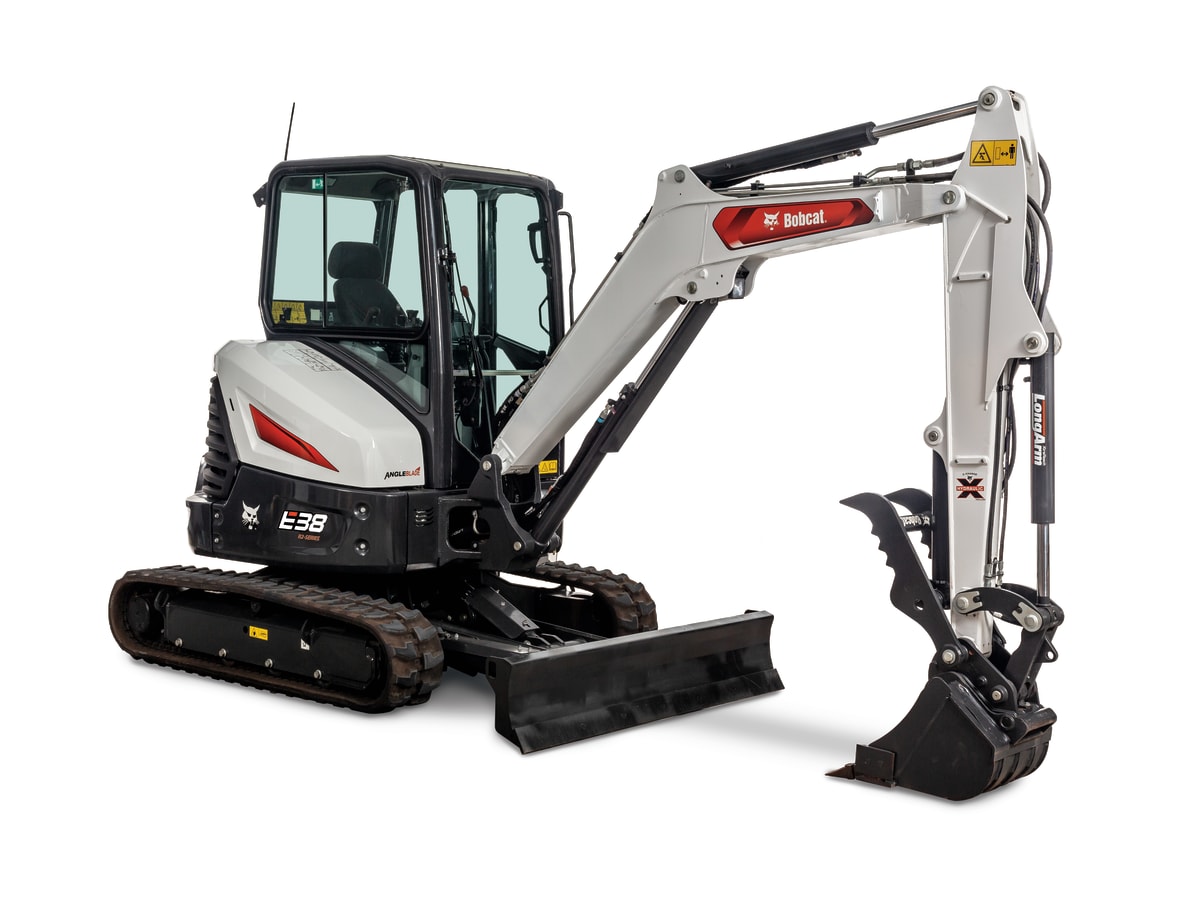

With leading horsepower and hydraulic performance, the zero-tail-swing E38 will help you accomplish more in less time. It features a 33-horsepower engine, unmatched cab comforts and the latest technology to increase your productivity.

$66,012 USD*

Pay as low as 0% for up to 48 months* PLUS receive a $3,000 USD*/$3,900 CAD* rebate or choose a $5,500 USD**/$7,200 CAD** cash rebate in lieu of financing on a Bobcat E38 compact excavator.

Call Us Now

Specs

E38 Key Specifications

E38 <!-->
Operating Weight
7,893 lb
Bucket Digging Force
7,284 lbf
Maximum Reach at Ground Level
204 in
Width
69.7 in
Tail Swing Type
Zero -->
<!-->


E38 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Fuel
Diesel <!-->
Maximum Governed RPM
2,400 rpm
Turbocharged Engine
yes -->
Optional Turbocharged Engine
N/A <!-->
E38 <!-->
Operating Weight
7,893 lb
Weight Class
3.6 t
Travel Speed - High
2.9 mph
Travel Speed - Low
1.6 mph
Arm Digging Force
4,690 lbf
Bucket Digging Force
7,284 lbf
Rated Lift Capacity
3318 lb
Lift Radius
118 in
Boom Swing - Left
75° -->
Boom Swing - Right
55° <!-->
Maximum Dig Depth
133 in
Max Dump Height
136.8 in
Maximum Reach at Ground Level
204 in
E38 <!-->
Fuel Tank
13.7 gal
E38 <!-->
Auxiliary Std Flow
16.9 gal/min
Auxiliary Pressure
2,987 psi
E38 <!-->
Length
190 in
Overall Length in Travel Position
190 in
Width
69.7 in
Height
96.2 in
Height with Operator Cab
96.2 in
E38 <!-->
Air Conditioning
Optional -->
Cab Enclosure
Optional <!-->
Radio
Optional -->
Tail Swing Type
Zero <!-->
Engine Shutdown
Standard -->
Auxiliary Hydraulics
Standard <!-->
Quick Tach System
Standard -->
Rubber Track
Standard <!-->
Selectable Auxiliary Hydraulic Flow
Standard -->
Angle Blade
Optional <!-->
-->


E38 Key Specifications

<!-->
E38 -->
Operating Weight
7,893 lb
Bucket Digging Force
7,284 lbf
Maximum Reach at Ground Level
204 in
Width
69.7 in
Tail Swing Type
Zero <!-->
-->


Engine

<!-->
E38 -->
Emissions Tier (EPA)
Tier 4 <!-->
Engine Fuel
Diesel -->
Maximum Governed RPM
2,400 rpm
Turbocharged Engine
yes <!-->
Optional Turbocharged Engine
N/A -->

Performance

<!-->
E38 -->
Operating Weight
7,893 lb
Weight Class
3.6 t
Travel Speed - High
2.9 mph
Travel Speed - Low
1.6 mph
Arm Digging Force
4,690 lbf
Bucket Digging Force
7,284 lbf
Rated Lift Capacity
3318 lb
Lift Radius
118 in
Boom Swing - Left
75° <!-->
Boom Swing - Right
55° -->
Maximum Dig Depth
133 in
Max Dump Height
136.8 in
Maximum Reach at Ground Level
204 in

Capacities

<!-->
E38 -->
Fuel Tank
13.7 gal

Hydraulic System

<!-->
E38 -->
Auxiliary Std Flow
16.9 gal/min
Auxiliary Pressure
2,987 psi

Dimension

<!-->
E38 -->
Length
190 in
Overall Length in Travel Position
190 in
Width
69.7 in
Height
96.2 in
Height with Operator Cab
96.2 in

Features

<!-->
E38 -->
Air Conditioning
Optional <!-->
Cab Enclosure
Optional -->
Radio
Optional <!-->
Tail Swing Type
Zero -->
Engine Shutdown
Standard <!-->
Auxiliary Hydraulics
Standard -->
Quick Tach System
Standard <!-->
Rubber Track
Standard -->
Selectable Auxiliary Hydraulic Flow
Standard <!-->
Angle Blade
Optional -->
<!-->
-->
