Specs

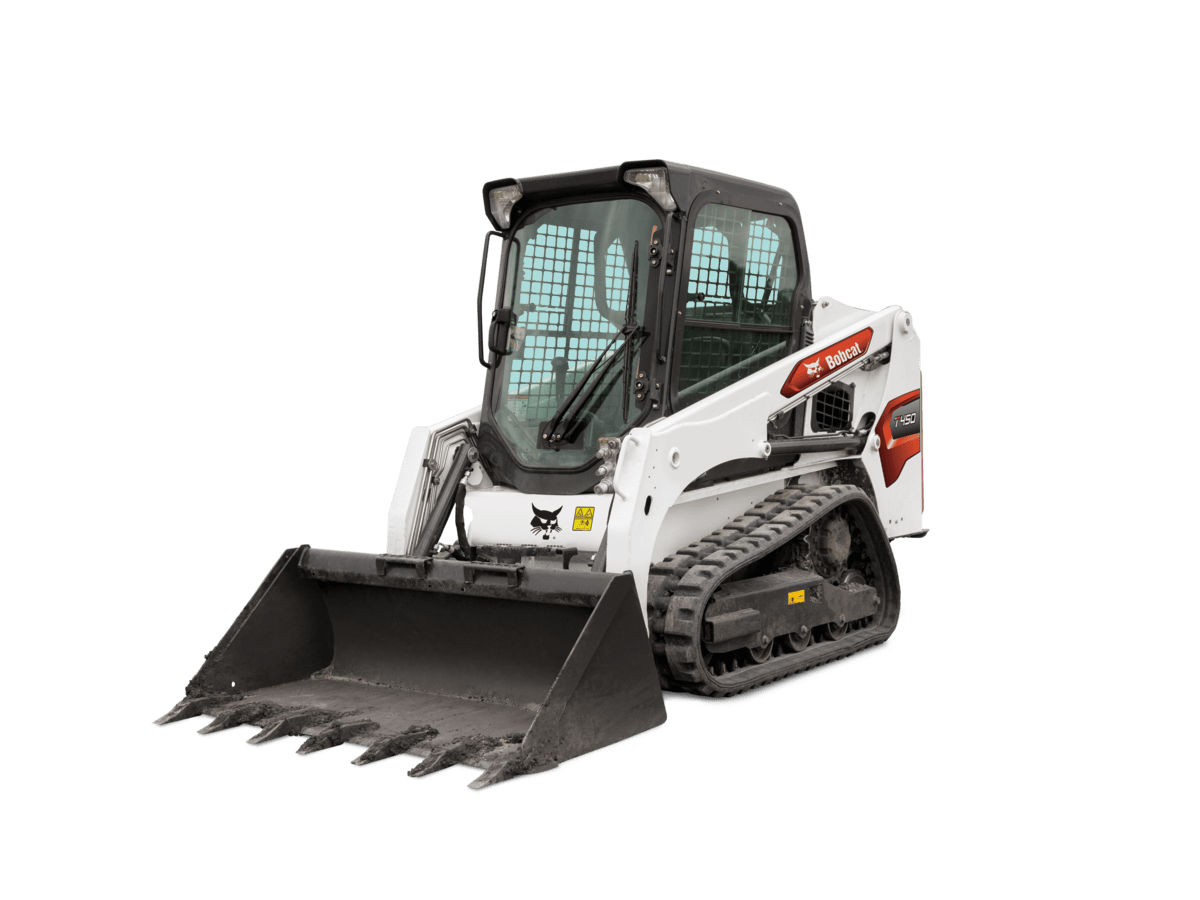

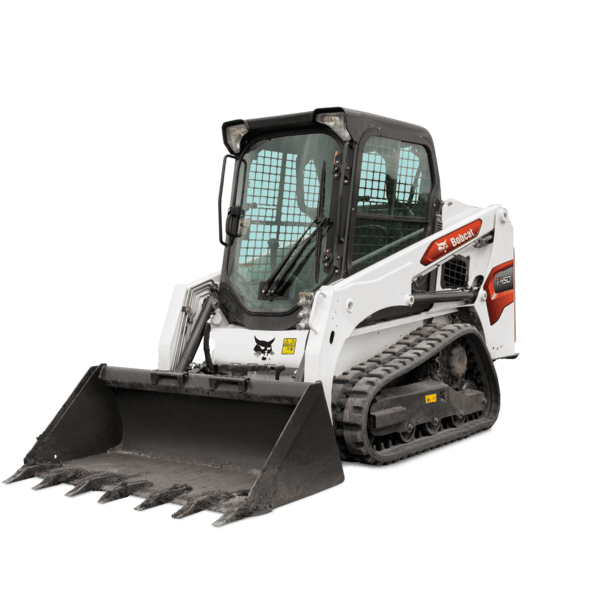

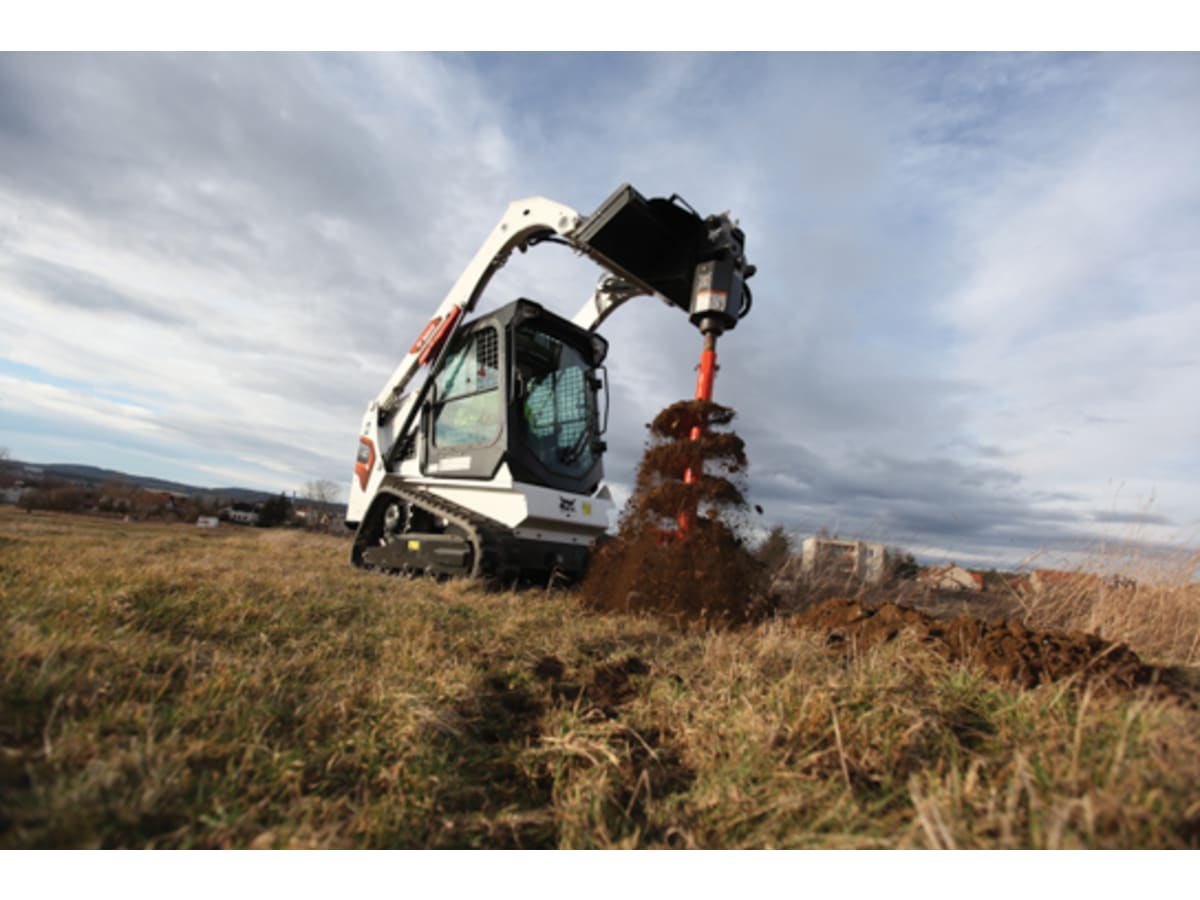

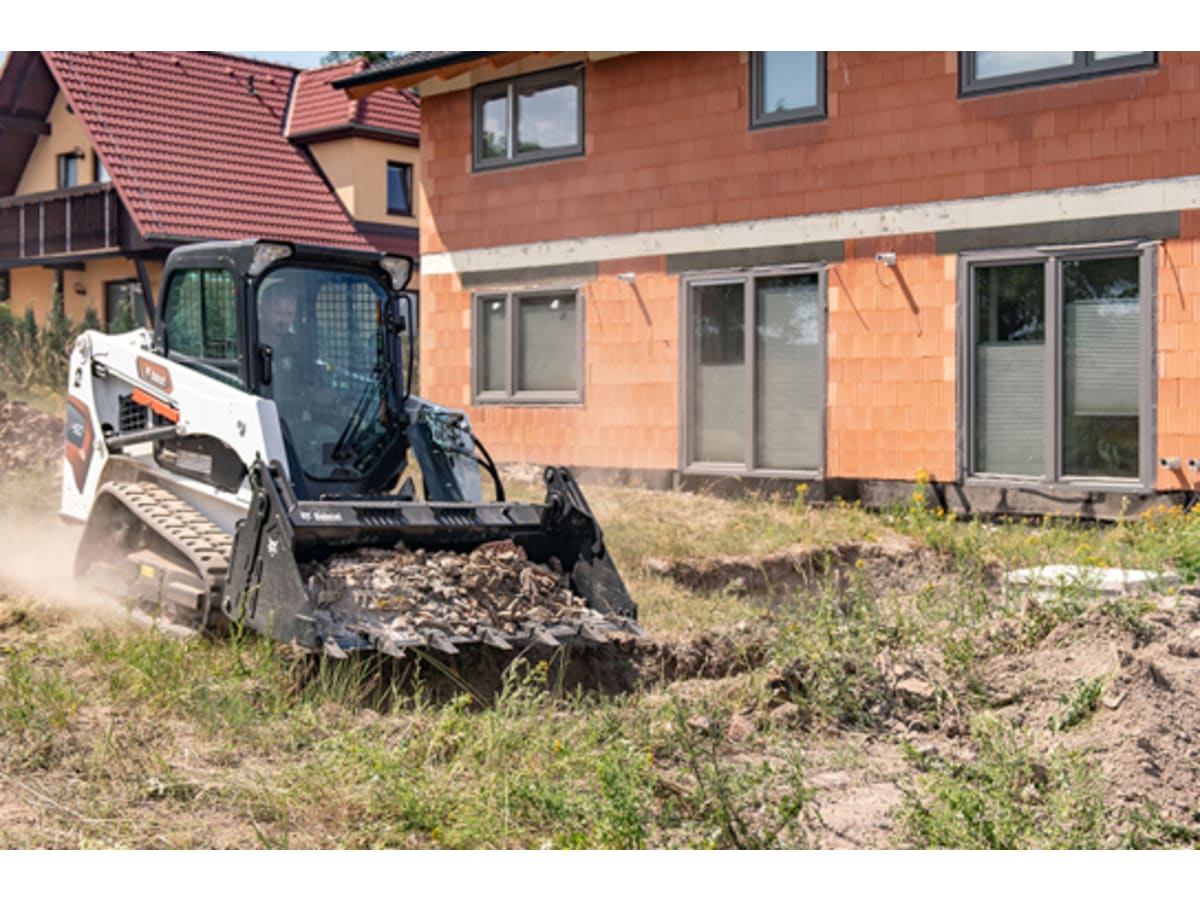

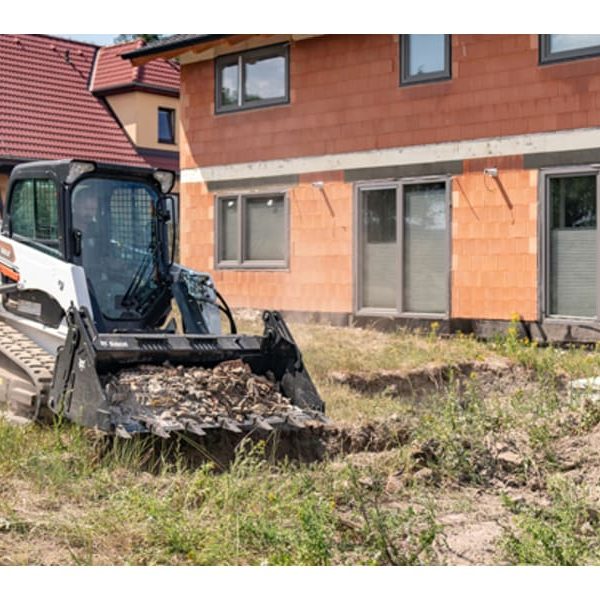

T450 Key Specifications
T450 <!-->
Rated Operating Capacity (ISO)
1,490 lb
Operating Weight
6424 lb
Ground Pressure (Rubber)
4.82 psi
Auxiliary Std Flow
16.7 gal/min
Joystick Control
Optional -->
Engine
--> T450 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
55 hp
Turbocharged Engine
yes <!-->
Performance
--> T450 <!-->
Rated Operating Capacity (ISO)
1,490 lb
Operating Capacity (50% of Tip)
2120 lb
Tipping Load
4257 lb
Operating Weight
6424 lb
Travel Speed
7 mph -->
Travel Speed (2-speed option)
11 mph
Ground Pressure (Rubber)
4.82 psi
Capacities
<!--> T450 -->
Fuel Tank
17.1 gal
Hydraulic System
<!--> T450 -->
System Relief @ Quick Couplers
3,300 psi
Auxiliary Std Flow
16.7 gal/min
Dimension
<!--> T450 -->
Length
98.4 in
Length without Attachment
98.4 in
Length with Standard Bucket
126.6 in
Width
55 in
Width (with bucket)
56 in
Height
77.8 in
Height with Operator Cab
77.8 in
Height to Bucket Hinge Pin
109.5 in
Reach @ Maximum Height
23.5 in
Turning Radius
77.9 in
Length of track on ground
50.2 in
Track Width
11.8 in
Features
<!--> T450 -->
Joystick Control
Optional <!-->
Air Conditioning
Optional -->
Backup Alarm
Standard <!-->
BICS System (Interlock)
Standard -->
Cab Heater
Optional <!-->
Operating Lights
Standard -->
Suspension Seat
Standard <!-->
Two Speed Travel
Not Applicable -->
Deluxe Instrumentation
Optional <!-->
Engine Shutdown
Standard -->
Hydraulic Bucket Positioning
Optional <!-->
High Flow Option
Not Applicable -->
Auxiliary Hydraulics
Standard <!-->
Bob-Tach Attachment System
Standard -->
Power Bob-Tach
Optional <!-->
ACS (Switchable Controls)
Not Applicable -->
Ride Control
Not Applicable <!-->
Horn
Standard -->
Cab Enclosure
Optional <!-->
Adjustable Seat
Standard -->
Sound Option
Optional <!-->
Rear Window
Standard -->
Top Window
Standard <!-->
Seat Belt
Standard -->
Spark Arrestor Muffler
Standard <!-->
