Specs

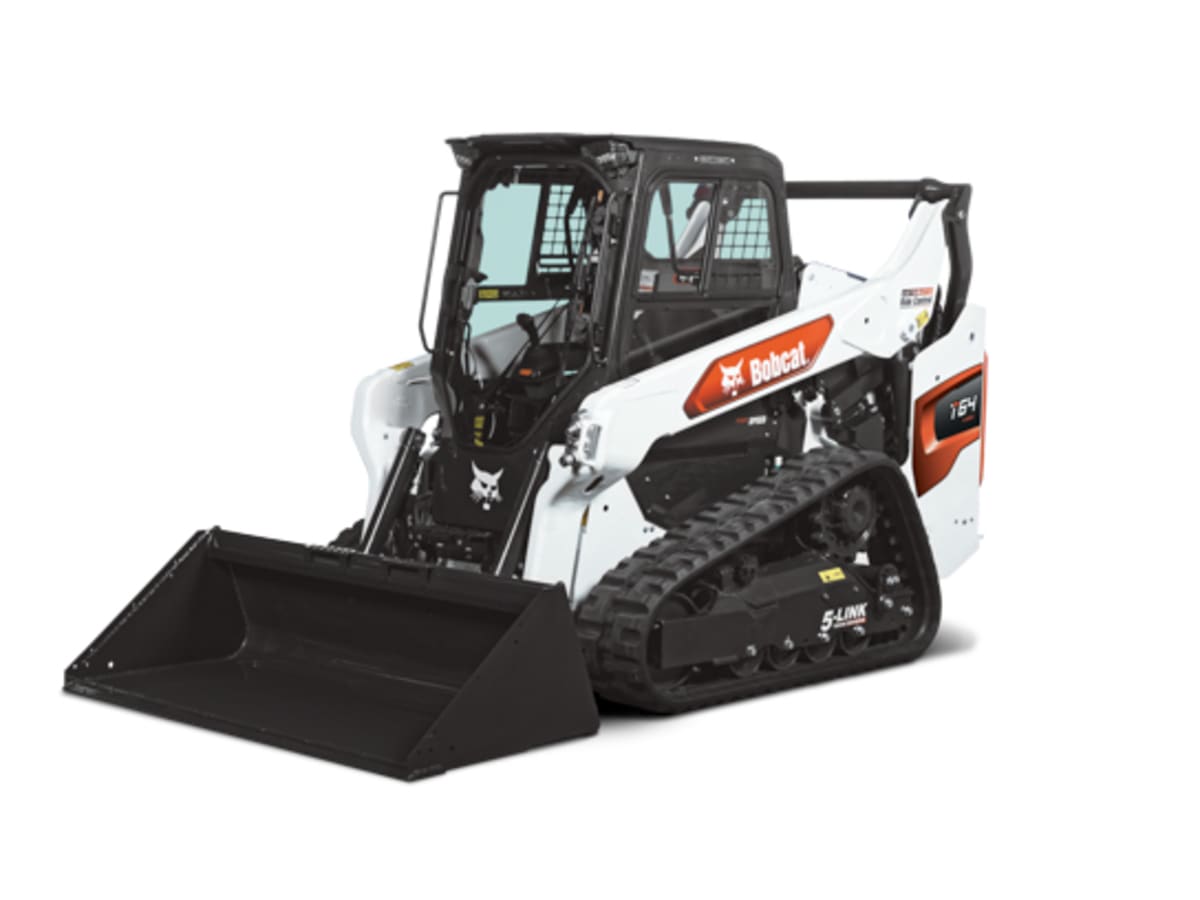

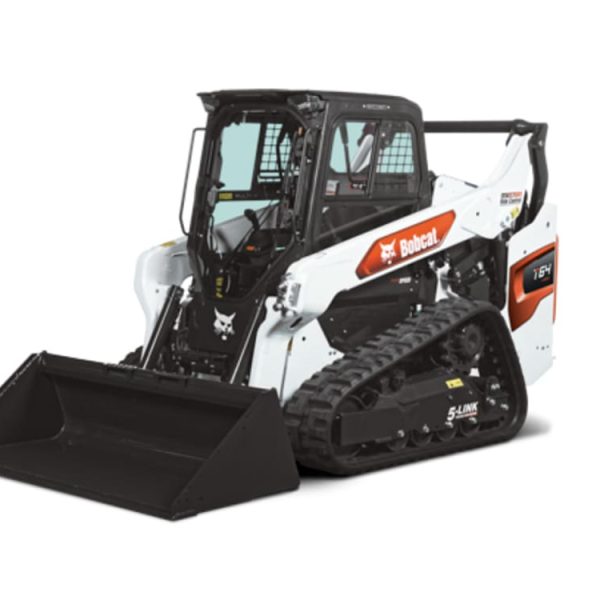

T64 Key Specifications
Rated Operating Capacity (ISO)
2,300 lb
Operating Weight
8727 lb
Ground Pressure (Rubber)
5.7 psi
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Joystick Control
Optional <!-->
<!-->
<!-->Engine
Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
68 hp
Turbocharged Engine
yes <!-->
Performance
Rated Operating Capacity (ISO)
2,300 lb
Operating Capacity (50% of Tip)
3286 lb
Tipping Load
6571 lb
Operating Weight
8727 lb
Travel Speed
7.2 mph
Travel Speed (2-speed option)
10.2 mph
Ground Pressure (Rubber)
5.7 psi
Capacities
Fuel Tank
28.3 gal
Hydraulic System
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
17.6 gal/min
Auxiliary High Flow
26.9 gal/min
Dimension
Length
134.9 in
Length without Attachment
107 in
Length with Standard Bucket
134.9 in
Width
67 in
Width (with bucket)
68 in
Height
80.5 in
Height with Operator Cab
80.5 in
Height to Bucket Hinge Pin
120 in
Reach @ Maximum Height
36.7 in
Turning Radius
81.5 in
Length of track on ground
54.3 in
Track Width
12.6 in
Track Width - Optional
15.7 in
Features
Joystick Control
Optional -->
Air Conditioning
Optional <!-->
Backup Alarm
Standard -->
BICS System (Interlock)
Standard <!-->
Cab Heater
Optional -->
Operating Lights
Standard <!-->
Suspension Seat
Standard -->
Two Speed Travel
Optional <!-->
Deluxe Instrumentation
Optional -->
Engine Shutdown
Standard <!-->
Hydraulic Bucket Positioning
Optional -->
High Flow Option
Optional <!-->
Auxiliary Hydraulics
Standard -->
Bob-Tach Attachment System
Standard <!-->
Power Bob-Tach
Optional -->
Ride Control
Optional <!-->
Horn
Standard -->
Cab Enclosure
Optional <!-->
Adjustable Seat
Standard -->
Sound Option
Optional <!-->
Rear Window
Standard -->
Top Window
Standard <!-->
Seat Belt
Standard 2-Point Lap Belt and Optional 3-Point Shoulder Belt on Two-Speed Models -->
Spark Arrestor Muffler
DOC <!-->
Lift-Arm Support
Standard -->
