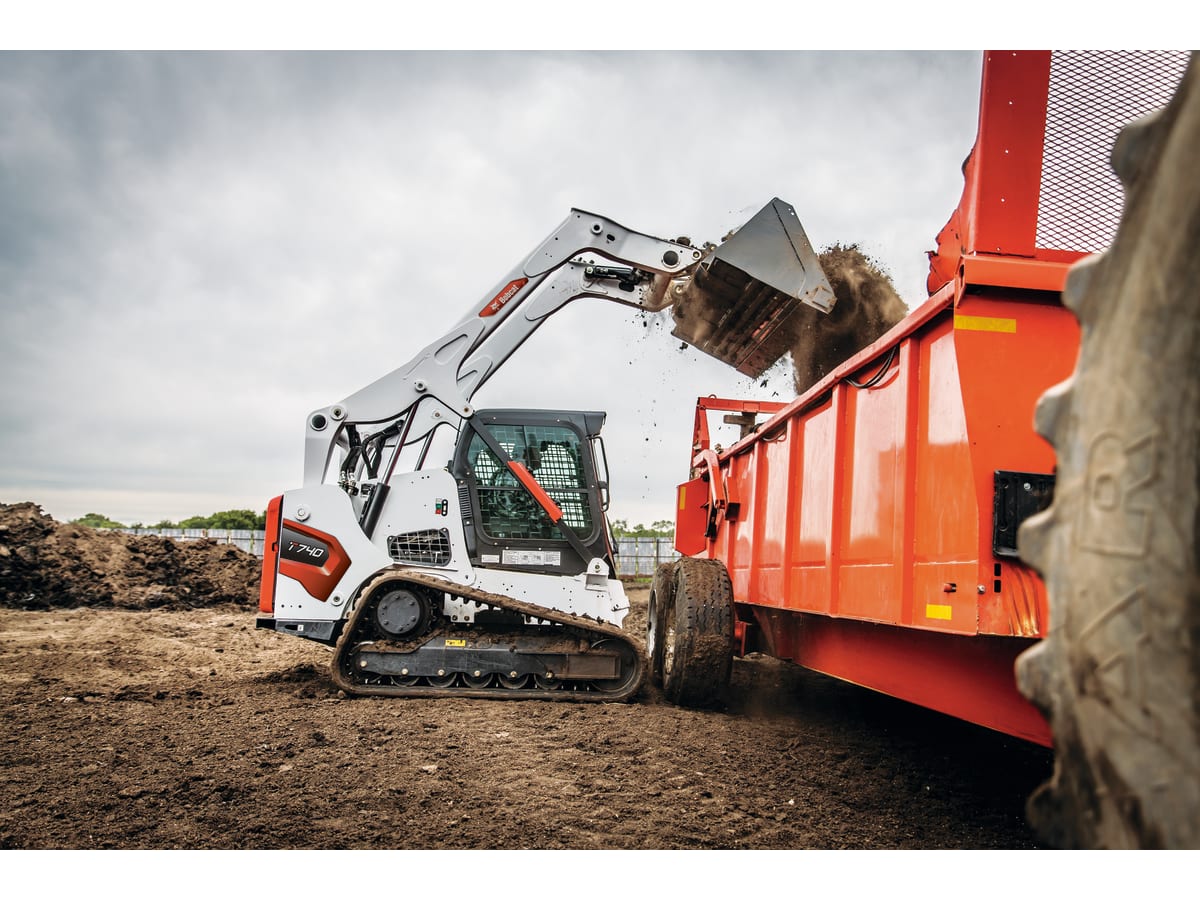

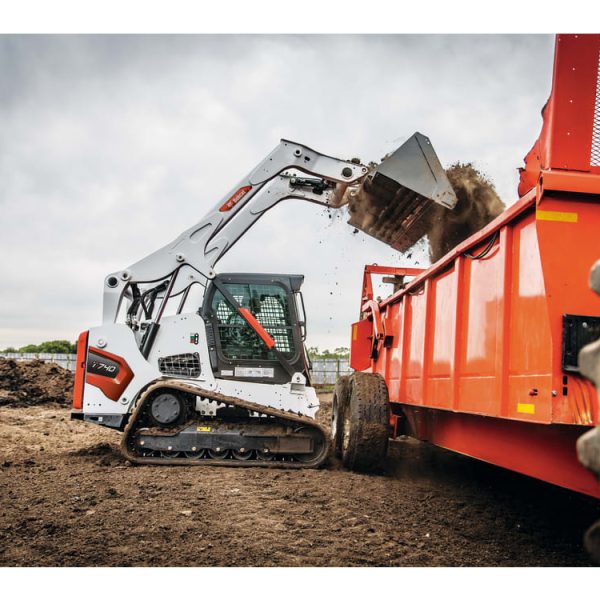

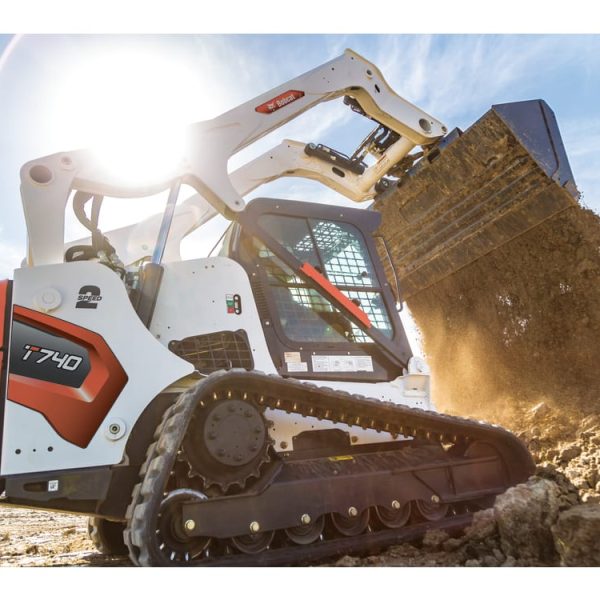

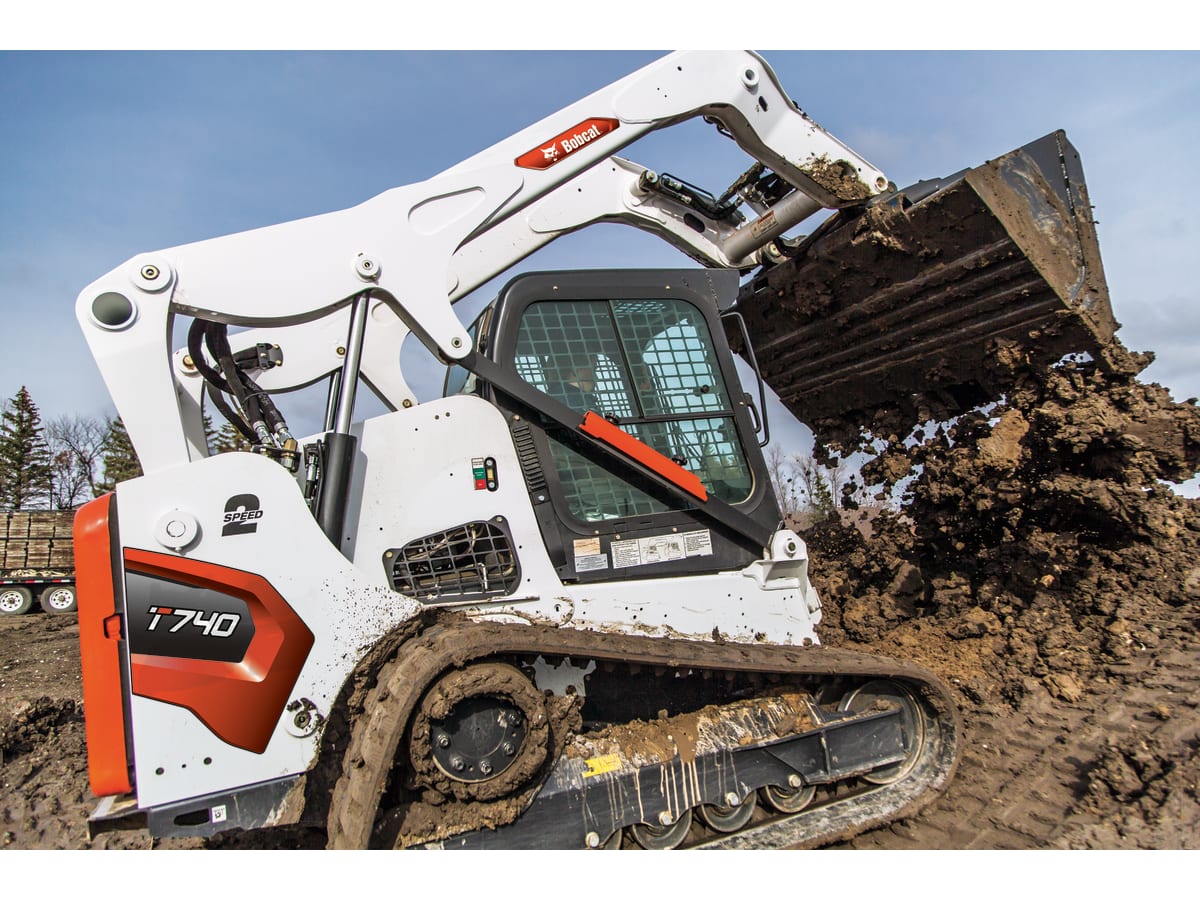

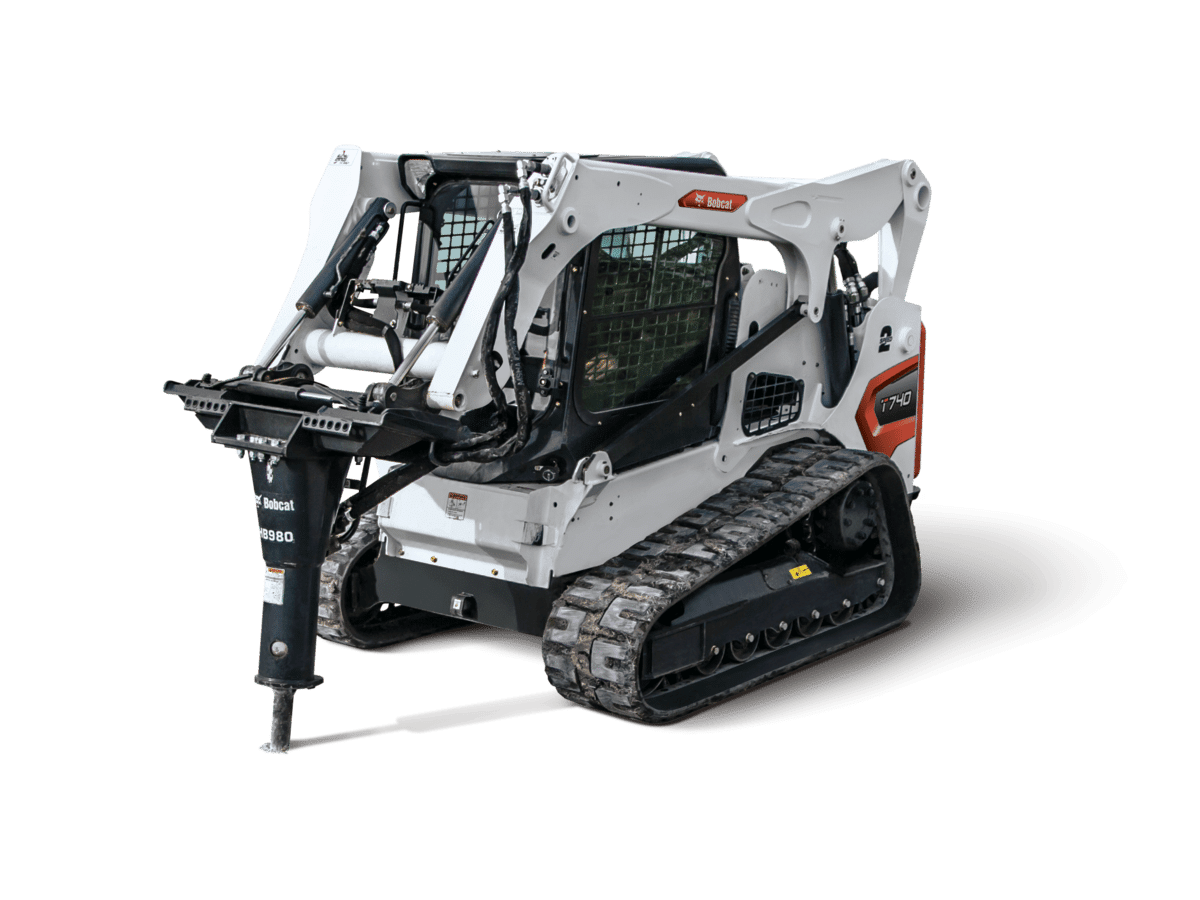

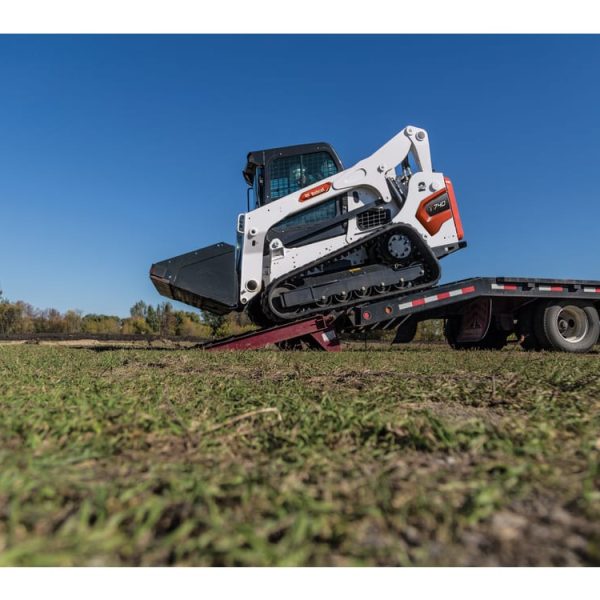

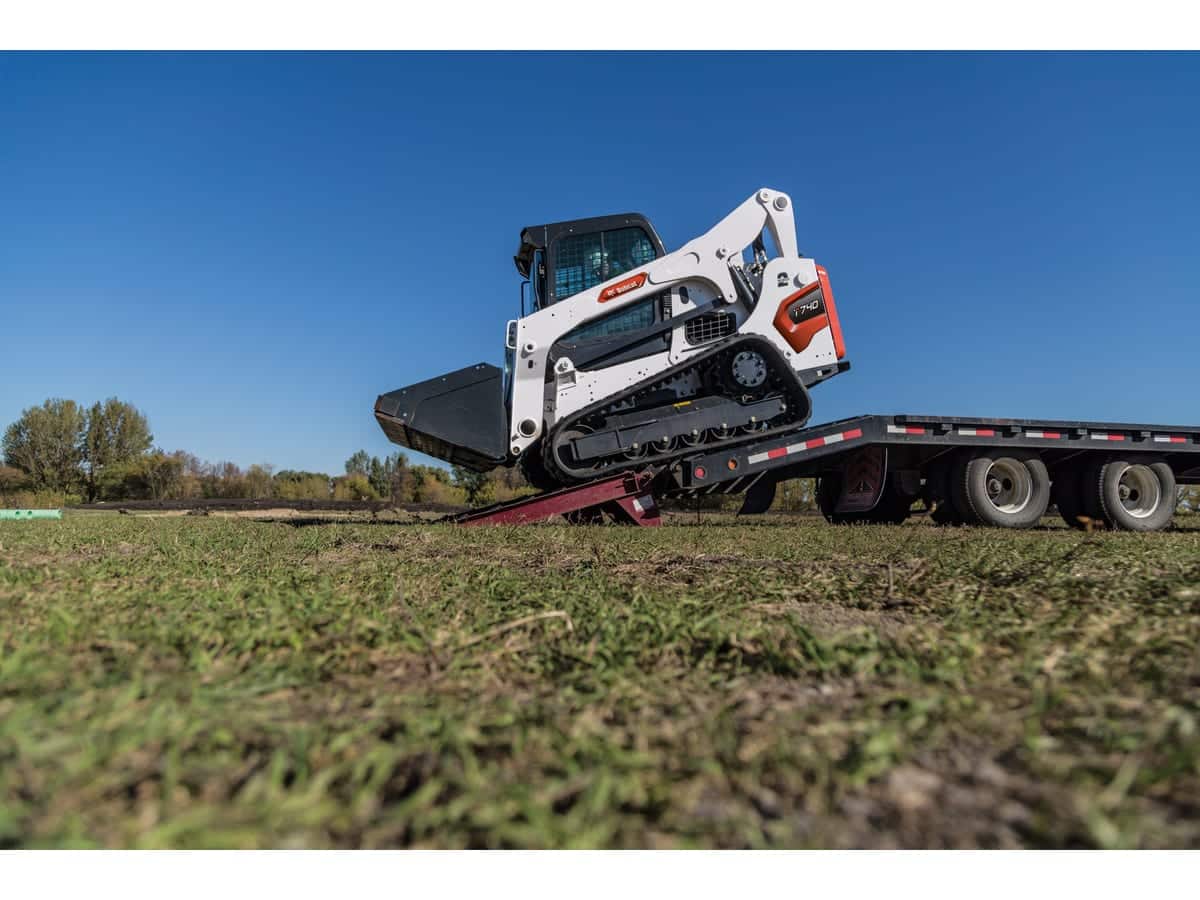

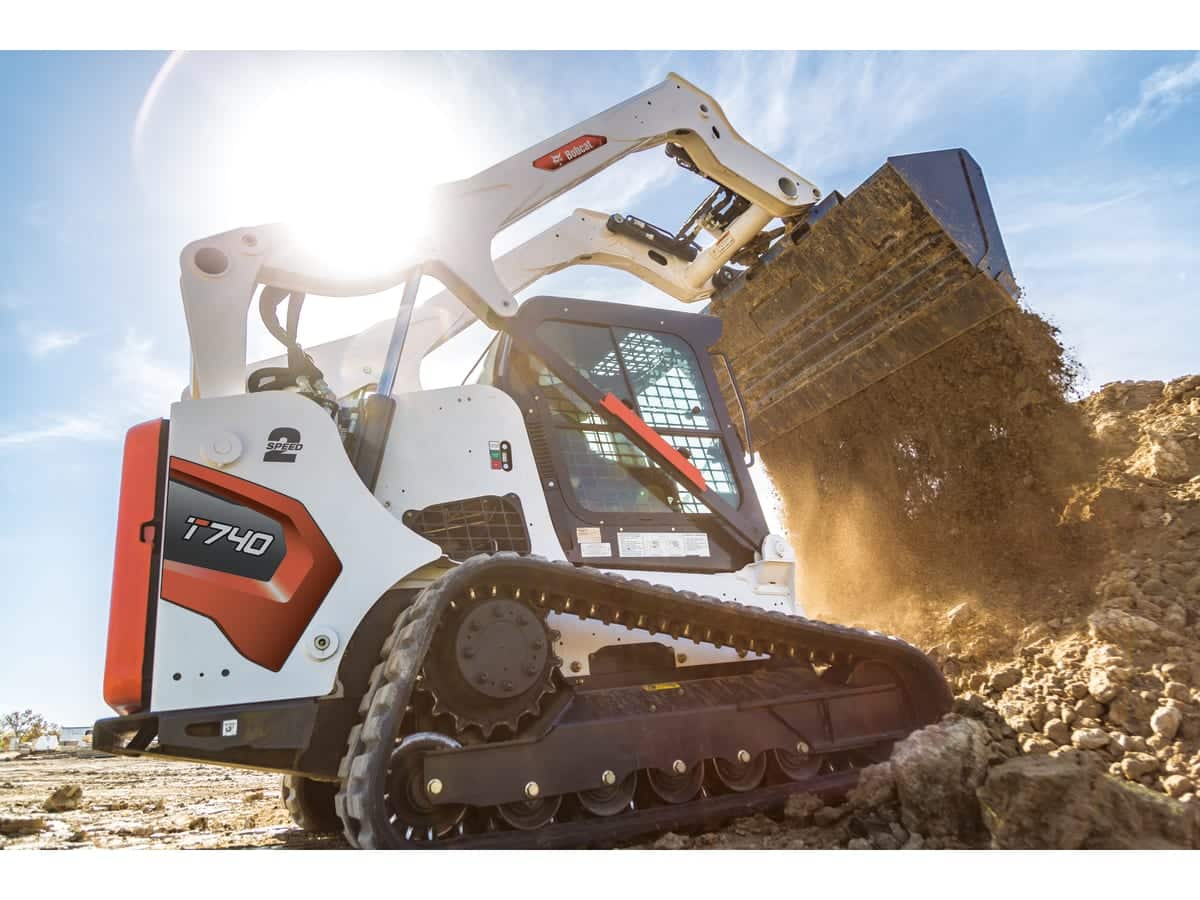

Bob Cat T740 Compact Track Loader

Contact us for price

Stock status: Call Store for Availability

Whether your next job requires demolition, material hauling or chores around the farm, maximize your efficiency and get more done with the nimble and powerful Bobcat® T740 compact track loader.

Pay as low as 0% for up to 48 months* or choose a $9,000 USD*/$11,700 CAD* rebate on Bobcat T740 compact track loaders.

Call Us Now

Specs

T740 Key Specifications

Rated Operating Capacity (ISO)
3,200 lb
Operating Weight
10127 lb
Ground Pressure (Rubber)
4.1 psi
Joystick Control
Standard -->
<!-->


Emissions Tier (EPA)
Tier 4 -->
Engine Cooling
Liquid <!-->
Engine Fuel
Diesel -->
Horsepower
74 hp
Turbocharged Engine
yes <!-->
Rated Operating Capacity (ISO)
3,200 lb
Operating Capacity (50% of Tip)
4571 lb
Tipping Load
9143 lb
Operating Weight
10127 lb
Travel Speed
6 mph -->
Travel Speed (2-speed option)
8.3 mph
Ground Pressure (Rubber)
4.1 psi
Fuel Tank
43.8 gal
Hydraulic Standard Flow
23 gal/min
Hydraulic High Flow (optional)
30.5 gal/min
System Relief @ Quick Couplers
3,500 psi
Length
114.3 in
Length without Attachment
114.3 in
Length with Standard Bucket
141.6 in
Width
78 in
Width (with bucket)
80 in
Height with Operator Cab
81.3 in
Height to Bucket Hinge Pin
131 in
Reach @ Maximum Height
35.2 in
Turning Radius
88 in
Length of track on ground
63.7 in
Track Width
17.7 in
Joystick Control
Standard <!-->
Air Conditioning
Optional -->
Backup Alarm
Standard <!-->
BICS System (Interlock)
Standard -->
Cab Heater
Optional <!-->
Operating Lights
Standard -->
Suspension Seat
Standard <!-->
Two Speed Travel
Optional -->
Deluxe Instrumentation
Optional <!-->
Engine Shutdown
Standard -->
Hydraulic Bucket Positioning
Optional <!-->
High Flow Option
Optional -->
Auxiliary Hydraulics
Standard <!-->
Bob-Tach Attachment System
Standard -->
Power Bob-Tach
Optional <!-->
Ride Control
Optional -->
Horn
Standard <!-->
Cab Enclosure
Optional -->
Adjustable Seat
Standard <!-->
Rear Window
Standard -->
Top Window
Standard <!-->
Seat Belt
Standard -->
Spark Arrestor Muffler
Standard <!-->
-->
